huayang rack upright box beam roll forming machine has two type ,one type is full automatic .one type is half automatic ,need to get the C profile then combine by another machine .

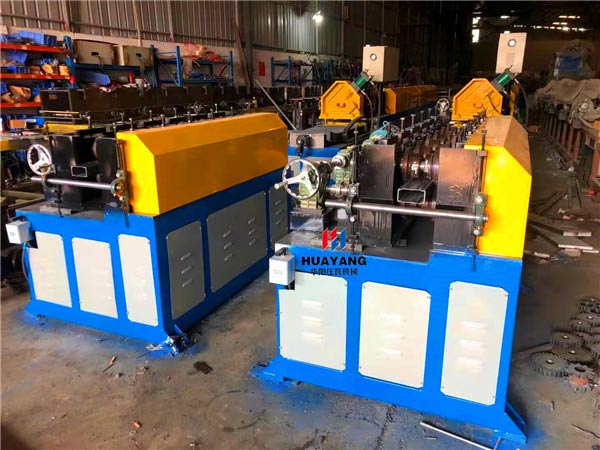

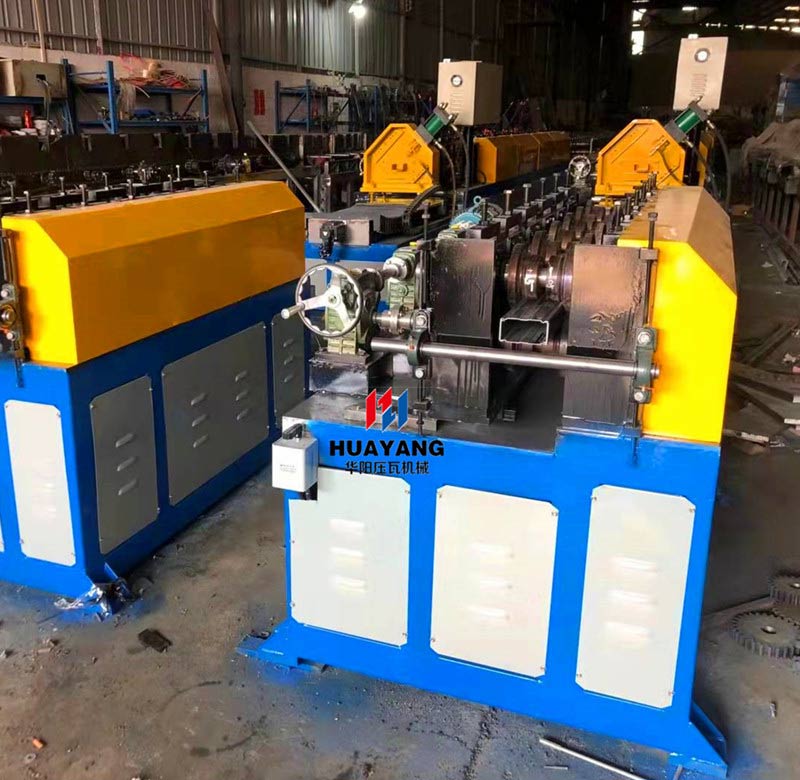

this type is the half automatic,the whole line process:uncoiler-feeding -roll forming -hydraulic cutting system-output table .the two profiles need be combined after getting the C profile frame .
the box beam roll forming machine technical details :
Feeding material:cold steel plate
Thickness of the plate:1.5-2.0mm
Diameter of the roller :58mm
Roller mould material:9CR2MoV High Quality Die Steel
Rolling stages:16stages
Productivity: 8-15m/min
Total power: 13KW
Voltage:380V 50Hz 3phase or as requirement
Base frame:100mm*50mm*4mm steel pipe weld(stable,strong)
Side board thickness:25mm
Cutting blade: Cr12 with heat treatment
Cutting system: Hydraulic cutting system after forming
Control cabinet: PLC control

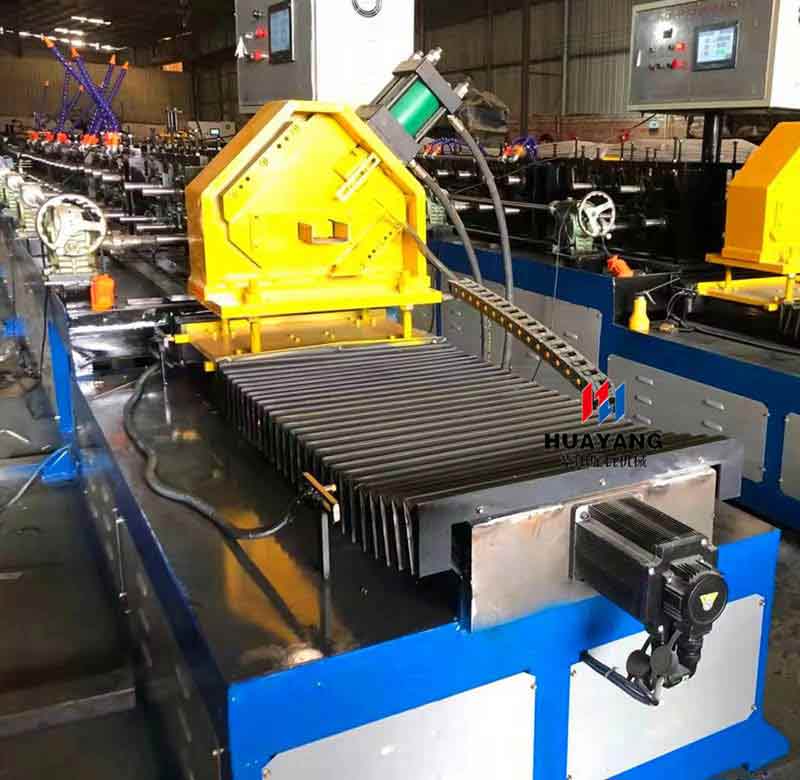

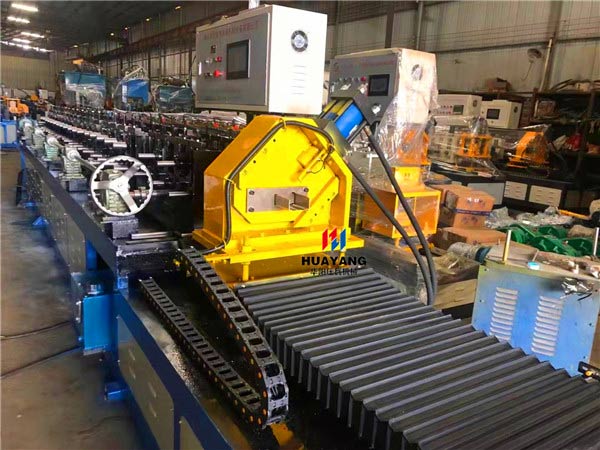

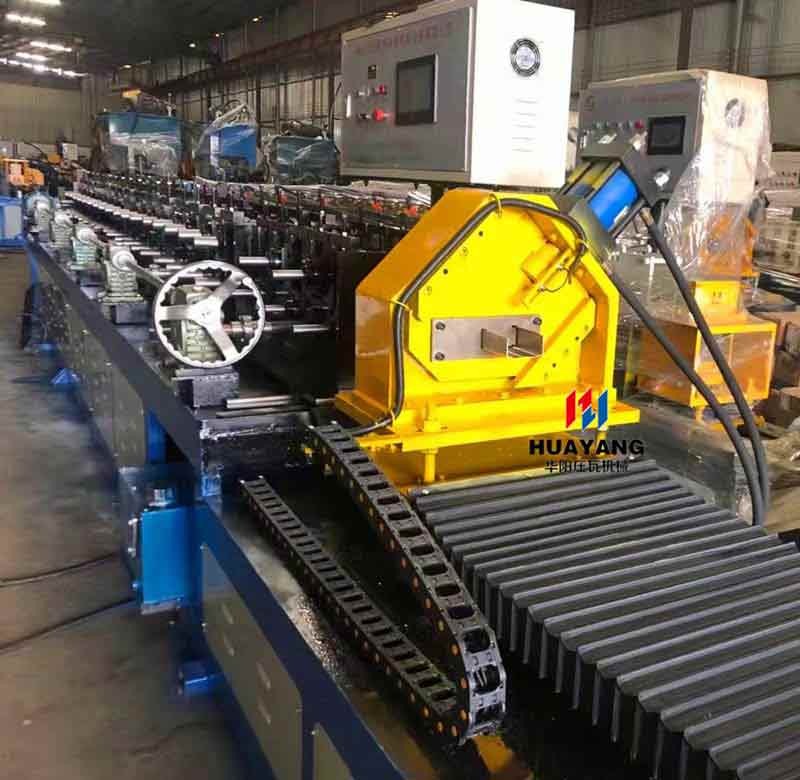

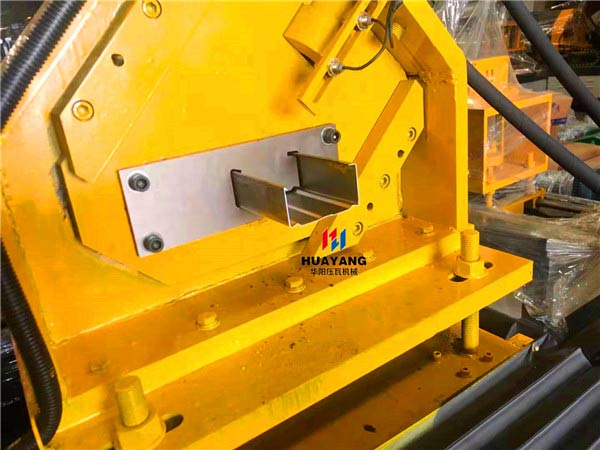

box beam roll forming machine cutter system
1. The cut-off part is 20t oil pressure mould-cutting type,Cut neatly without burrs and noise
2. Cutter die material: Cr12MoV die steel, heat treatment, grinding machine and wire cutting
3. Cutting die treatment: after heat treatment, the hardness reaches hrc60-62 ℃
4. 20t oil pressure station: all core parts of the oil pressure station are of Taiwan brand

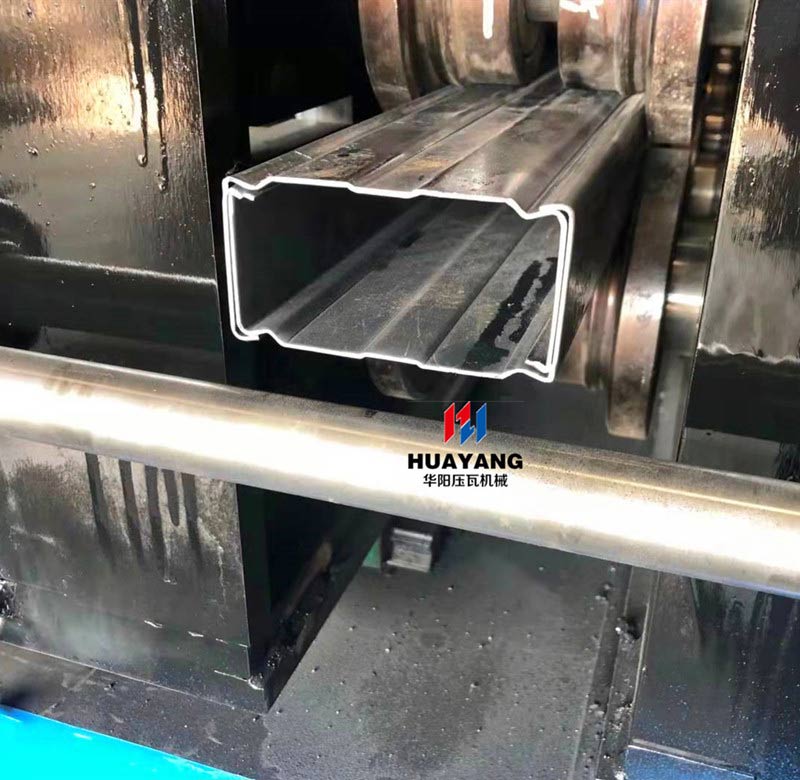

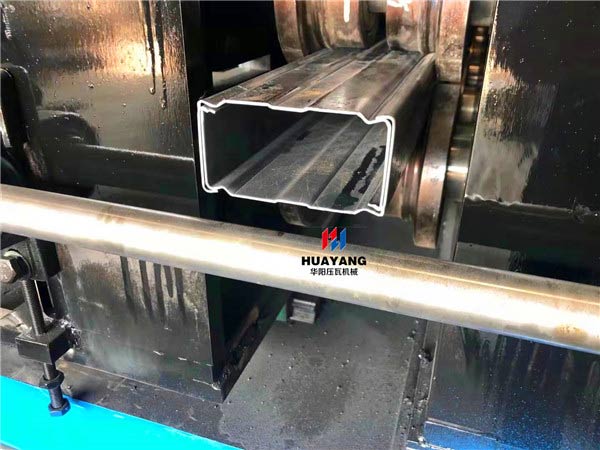

the advantage of this type box beam :double sheet on each side ,the weight bear is more better .
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
