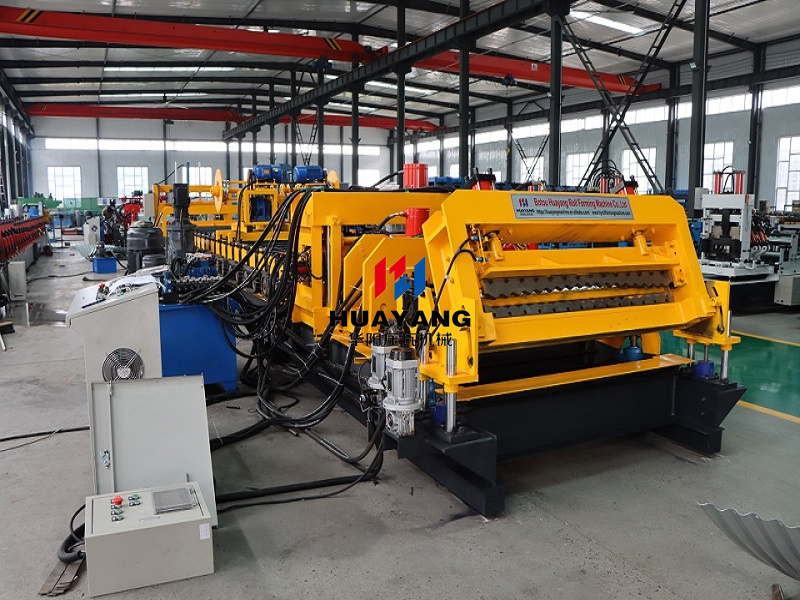

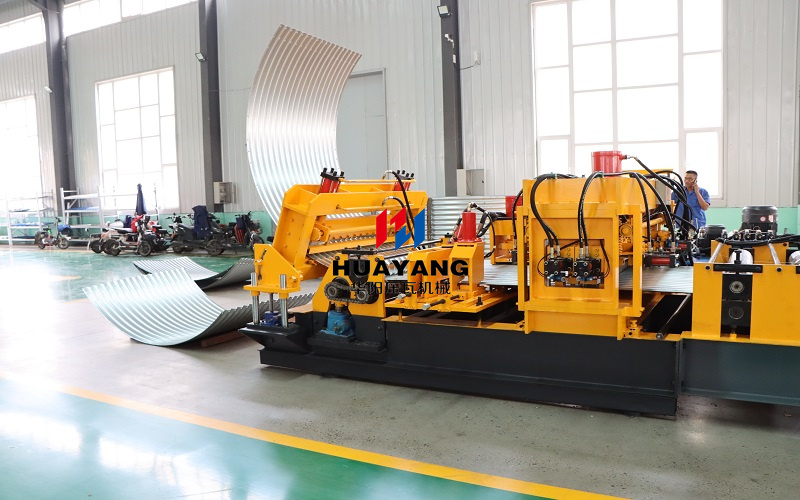

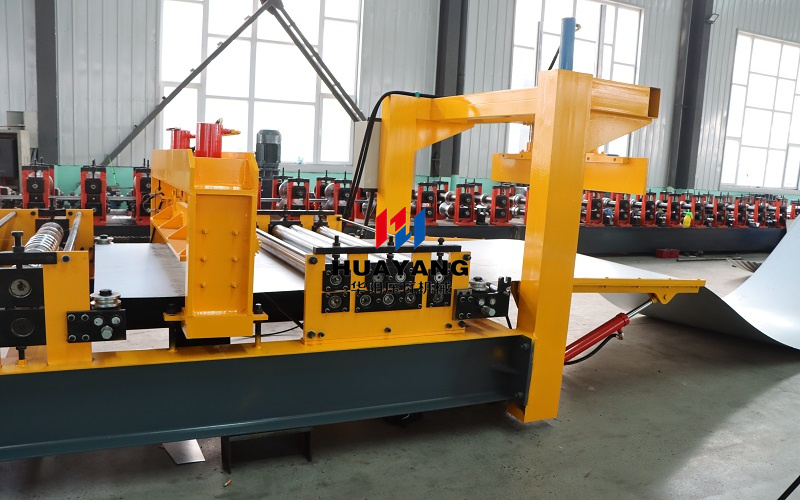

storage grain silo panel forming machine

1-4mm farm storage grain bin silo corrugated sheet wall panel roll forming machine

Machine Details :

1. Suitable Plate Material: thickness 1-4.0mm, Galvanized steel or blank steel
2. Working Speed: 1pcs/2mins
3. Forming Steps: 22 stations, drive by gear boxes
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts
7. Main Power with reducer: 45KW *2
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 4KW
11. The whole machine is controlled by industry computer-PLC.
12 PLC--Delta, English and Chinese Language(customized)
13 Touch Screen--Delta
14 Encoder--Omron, Japan

Botou Huayang Tile Pressing Machinery Co., Ltd. is located in the famous casting city of Botou City, Hebei Province. We produce composite plate machines, fully automatic C-shaped steel machines, corner molding machines, double-layer color steel glazed tile machines, high altitude tile pressing machines, and floor bearing plate machines. We welcome users who need them to come and purchase!
