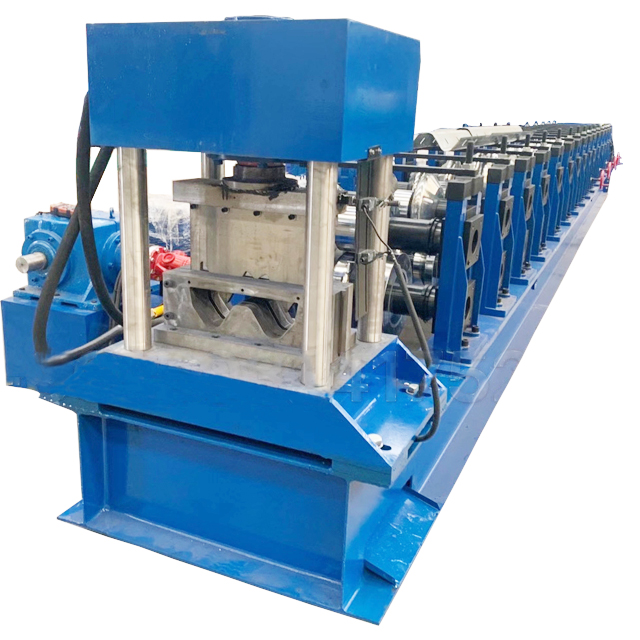

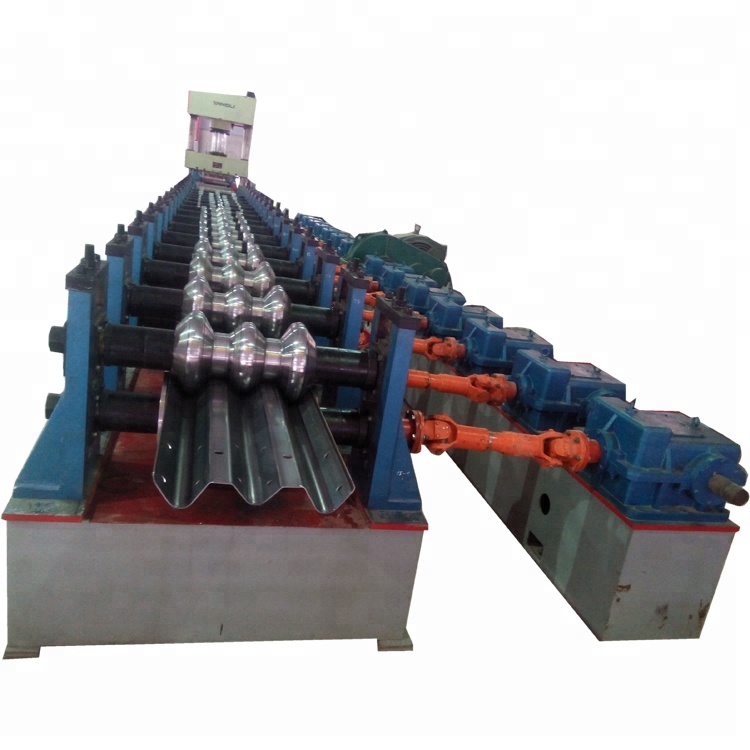

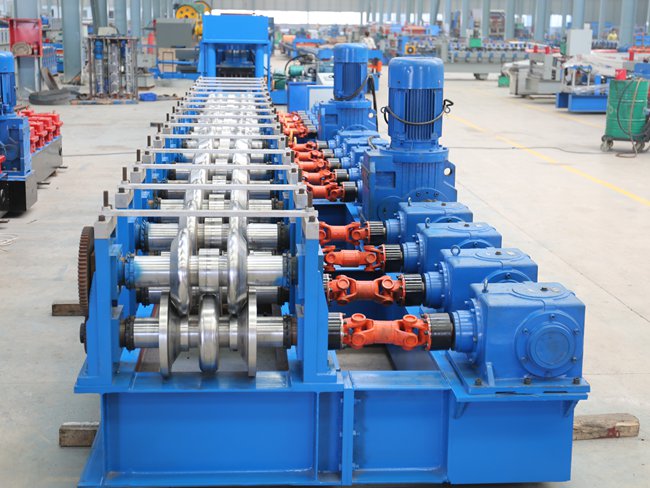

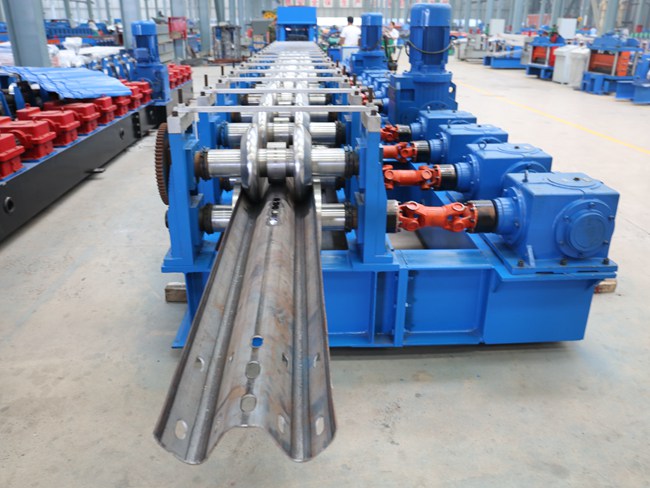

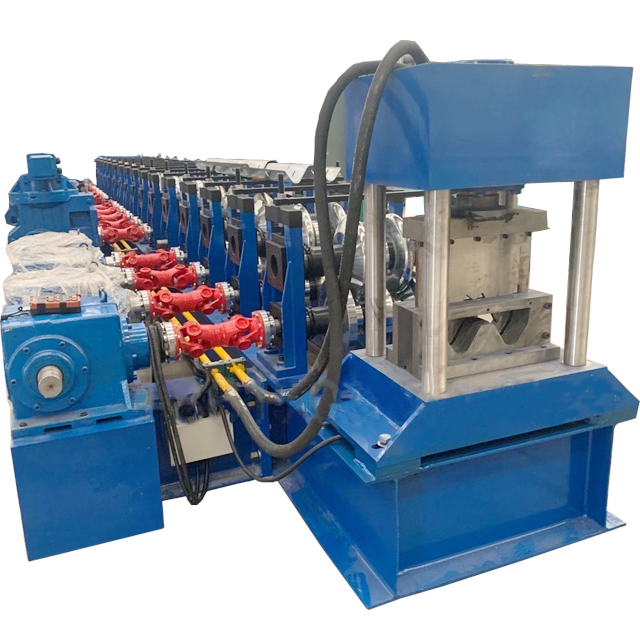

The high-speed guardrail tile press is a specialized equipment used for producing high-speed guardrail panels, which includes multiple processes such as cutting, leveling, forming, punching, and cutting.
The following is a detailed introduction about the high-speed guardrail tile press:
1.Forming process:
The material first enters the unit guide wheel for cutting.
After the leveling process of three upper rollers and four lower rollers, the diameter of the forming shaft is Φ 90mm. After quenching and tempering treatment, the roller material is GCR15, quenched to HRC58 ° -62 °, ensuring the quality and durability of the forming.
The punching process adopts hydraulic punching, and the punching die steel is quenched and can be adjusted back, forth, left, right to meet different punching needs.
The cutting process is completed through hydraulic shearing, ensuring the accuracy and aesthetics of the product.
2.Technical parameters:
The power of the host is 22KW, and the power of the cycloidal pin reducer is also 22KW. It adopts chain transmission to ensure efficient power transmission and stability.
3.Material handling:
The compression thickness range that can be processed is 2.0mm to 4.0mm, meeting the needs of different application scenarios.
4.Equipment features:
The high-speed guardrail tile press has advanced design, simple operation, high production efficiency, and can meet the needs of large-scale production.
The equipment adopts a highly integrated network control system with a high degree of automation, ensuring product quality while improving production efficiency.
In summary, the high-speed guardrail tile press provides an efficient and high-quality solution for the production of highway guardrail panels through its efficient production process and advanced technical parameters.
