c z purlin roll forming machine full automatic

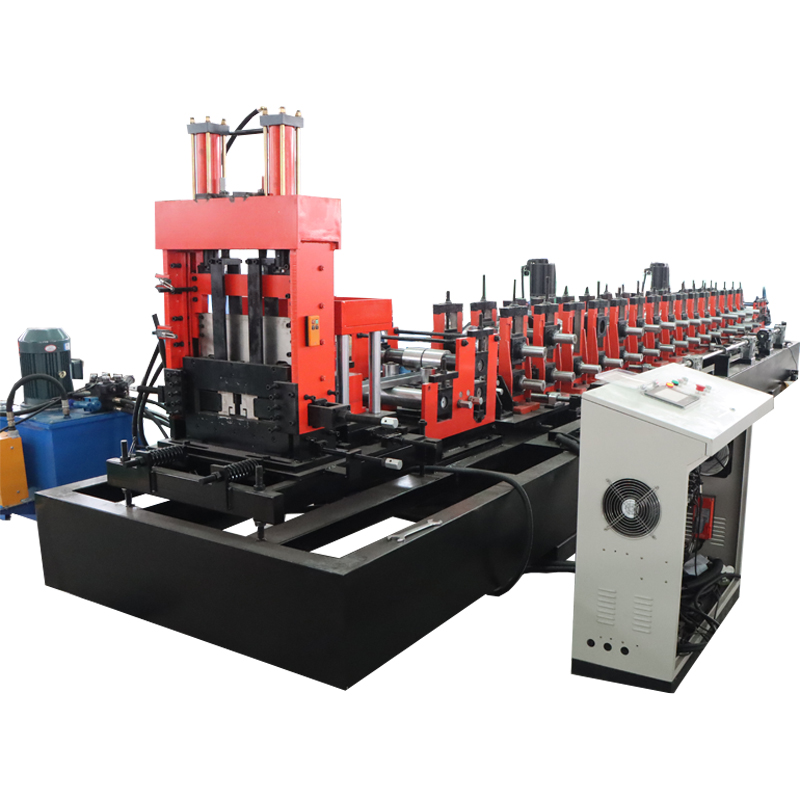

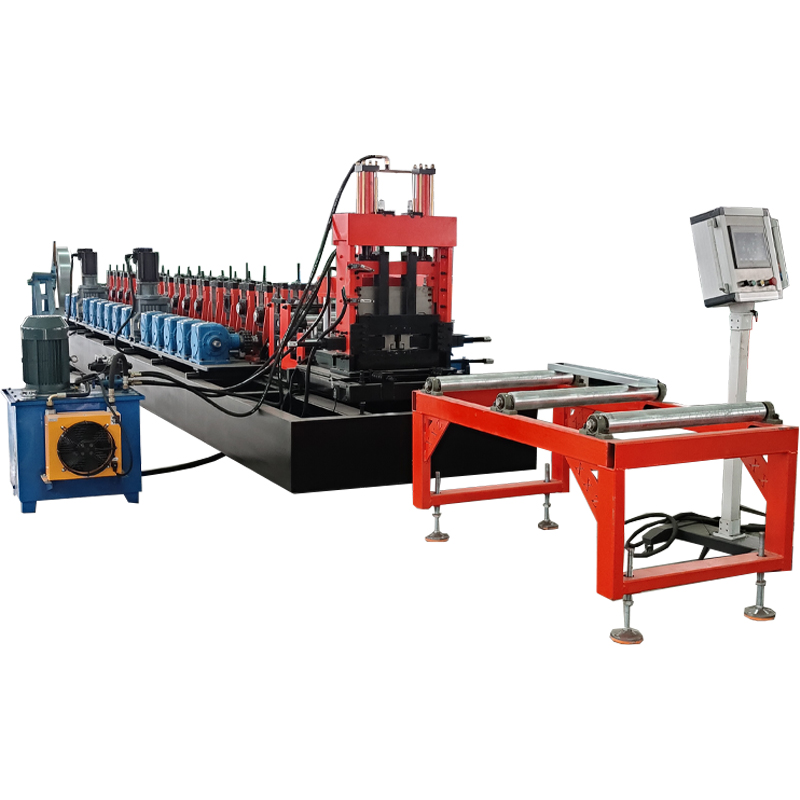

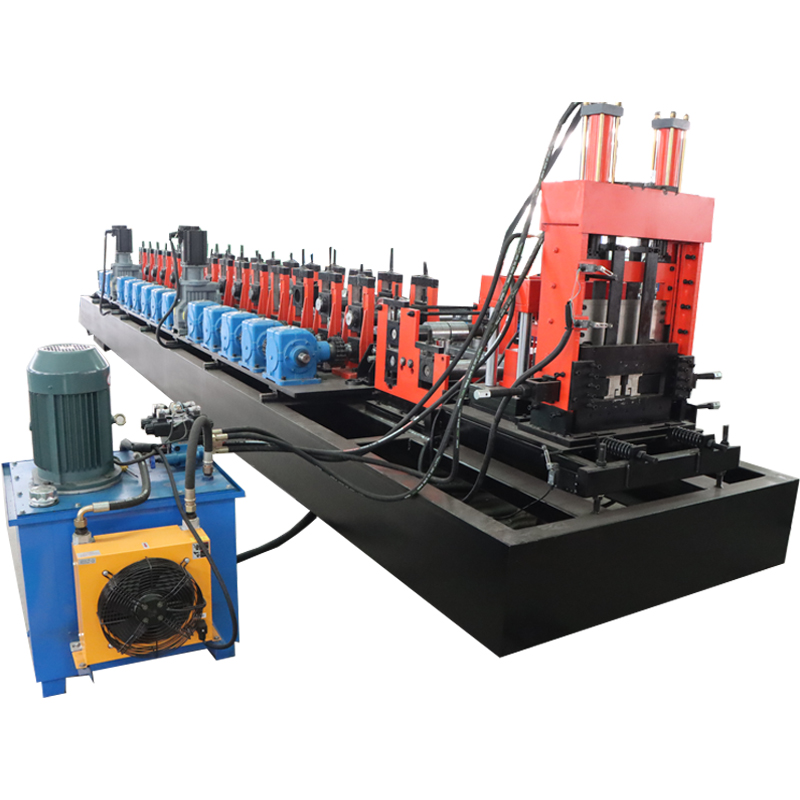

The C-shaped steel purlin pressing machine is a device used for producing C-shaped steel purlins, usually consisting of a passive loading frame, leveling device, punching device, cutting device after forming, hydraulic station, and computer control system.

Working principle and equipment composition：

The working principle of the C-shaped steel tile press is to press the strip steel into C-shaped steel through a series of pressure rollers and molds. The main components of the equipment include:

Passive loading rack: used for loading raw materials.

Leveling device: Ensure that the raw materials are flat.

Punching device: Punching is performed during the forming process.

Cutting device after forming: Cut the formed C-shaped steel to the required length.

Hydraulic station: provides power.

Computer control system: Automated control of the entire production process

1.High degree of automation: adopting high-level automatic control software to achieve production information management.

2.Easy to operate: The automated control system has superior performance and is easy to operate and maintain.

3.High production efficiency: high degree of equipment automation, high production efficiency, and stable product quality.
