TR4-36 metal roof tiles machine for peru market

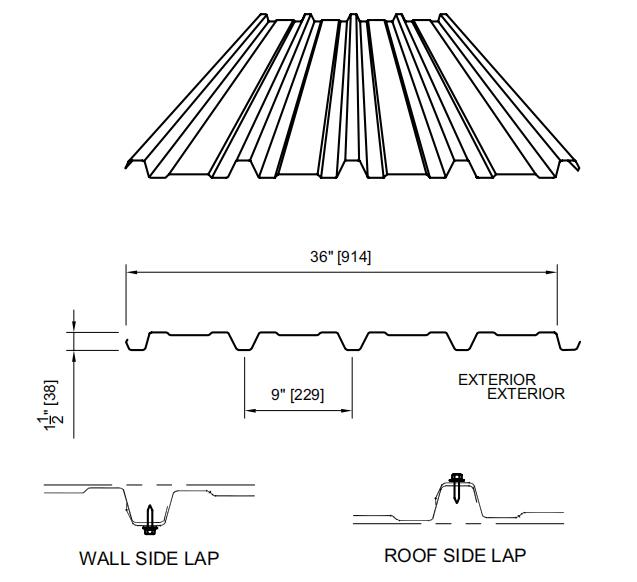

The TR4-36 profile features four 1 1/2” [38 mm] deep ribs on 9” [229mm] centers which gives an attractive, standing rib appearance. TR4-36 side laps in the high cell when used as a wall or roof panel.All Exposed Fastener wall panels may be installed in a variety of rainscreen applications
to form a complete wall system. This profile is quite popular in peru market .

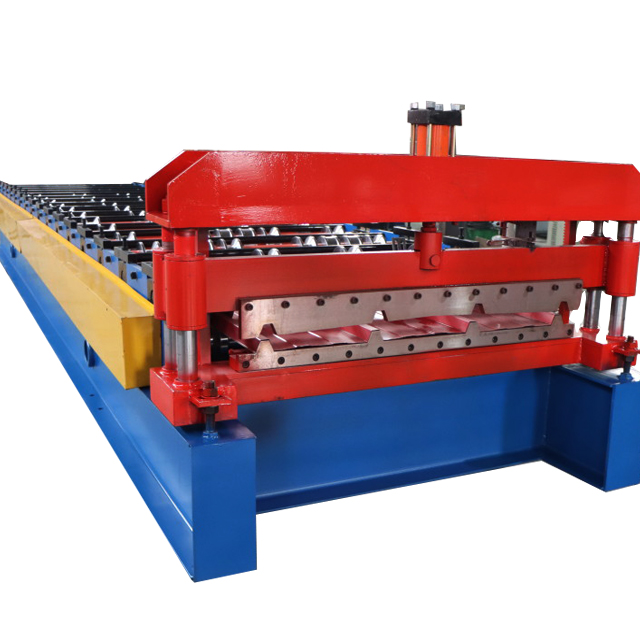

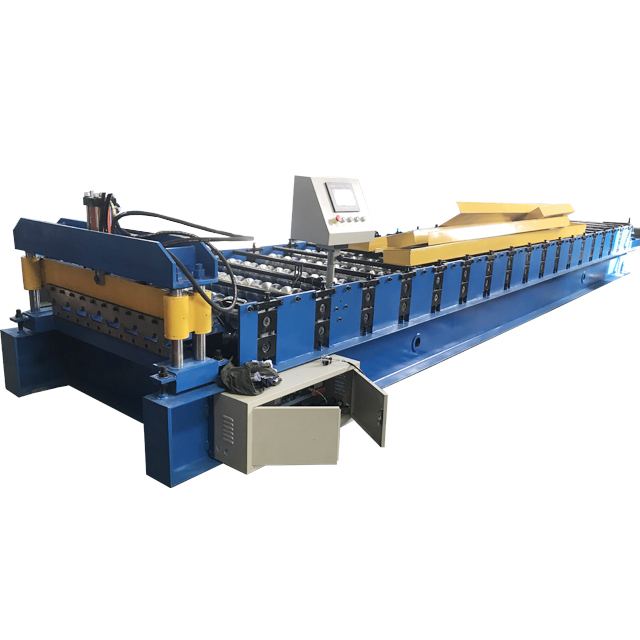

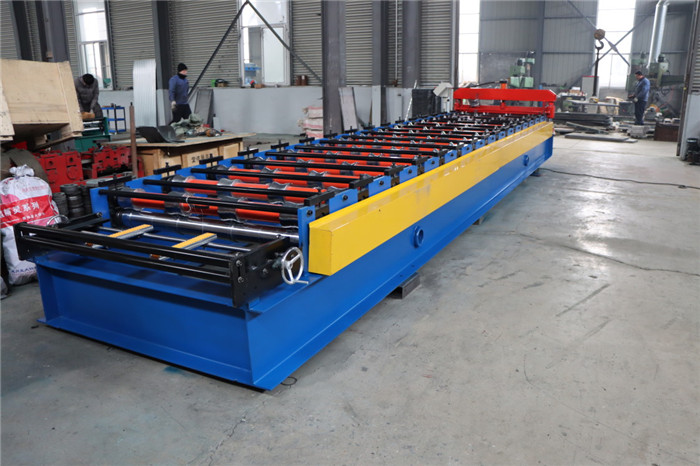

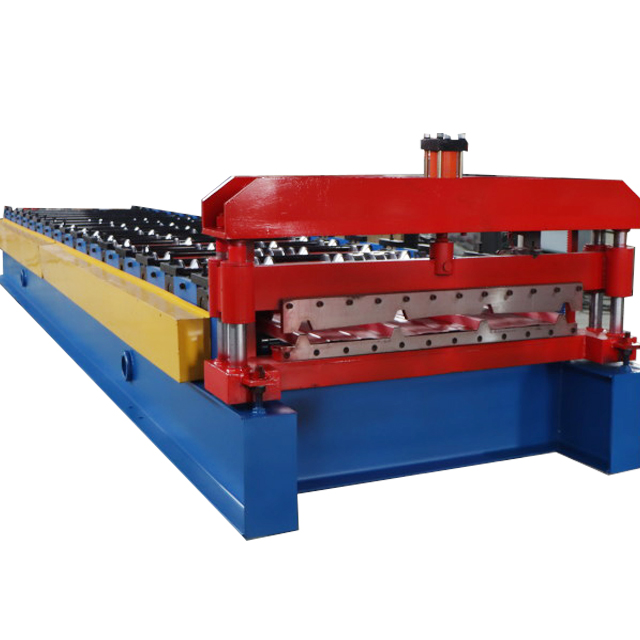

TR4-36 metal roof tiles machine for peru market

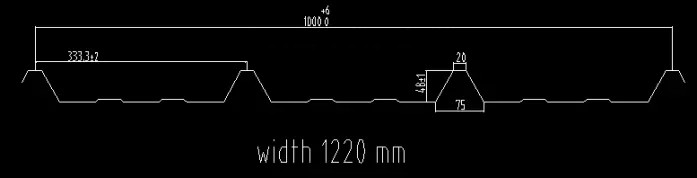

This machine is designed based on knowing fully requirements of this Tr4 drawing profile. The metal roofing sheet machine, we design like this:

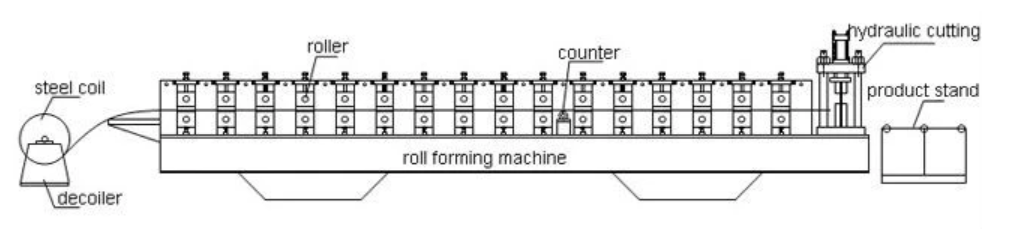

TR4-36 metal roof tiles machine for peru market process

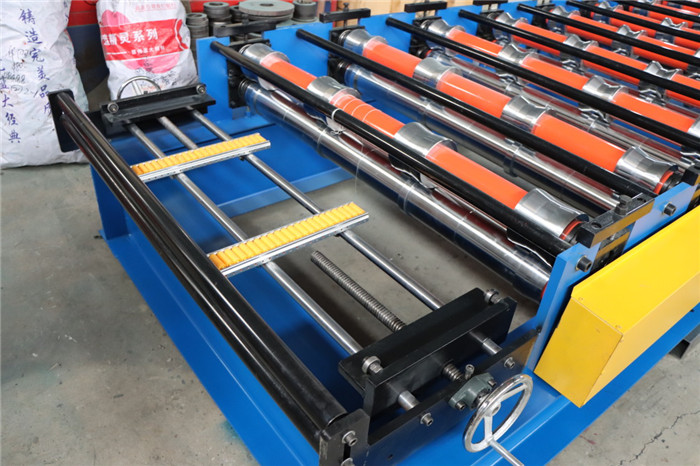

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
Technical parameters for TR4-36 metal roof tiles machine for peru market:
| rticle No. | Item Name | Specification |
| 1 | Width of feeding material | 1000 mm coil sheet |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |

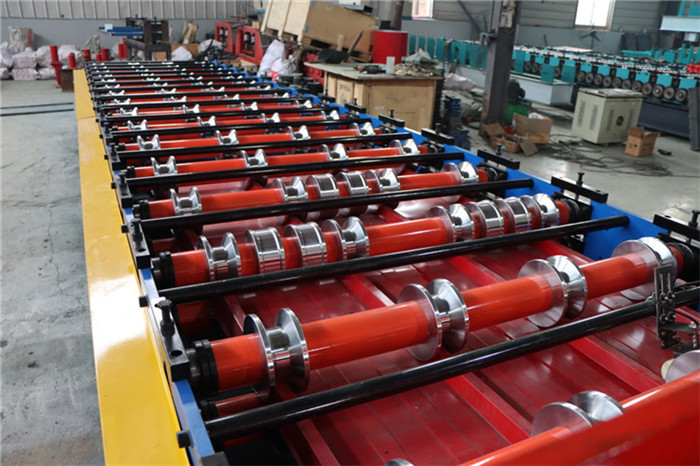

| 3 | Roller station | 19 stations |
| 4 | Shaft Diameter | 90 mm |
| 5 | Productivity | 55 m/min |
| 6 | Rollers' material | Gcr15 quenching with 0.1 mm chrome |
| 7 | Shaft material | 45# steel with 0.1 mm chrome |
| 8 | Weight | 7 tons |
| 9 | length | 7.5 meter |
| 10 | Voltage | 220V 50Hz 3phases |

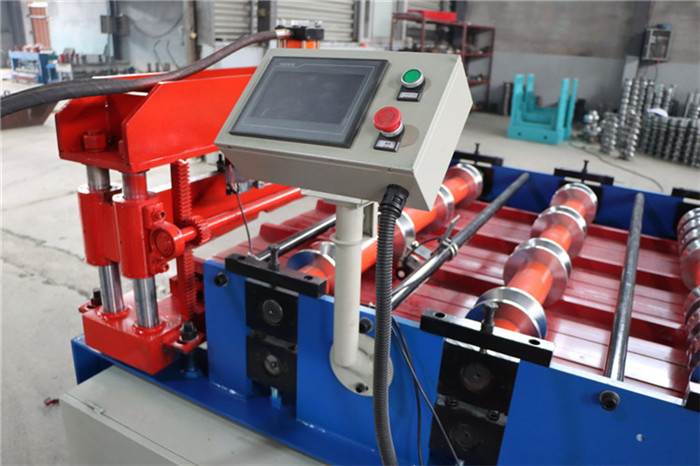

| 11 | Control | Portable PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 5.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | Double chain |

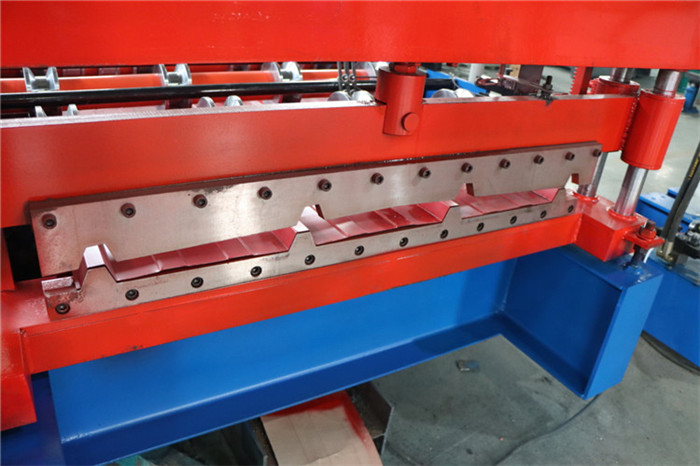

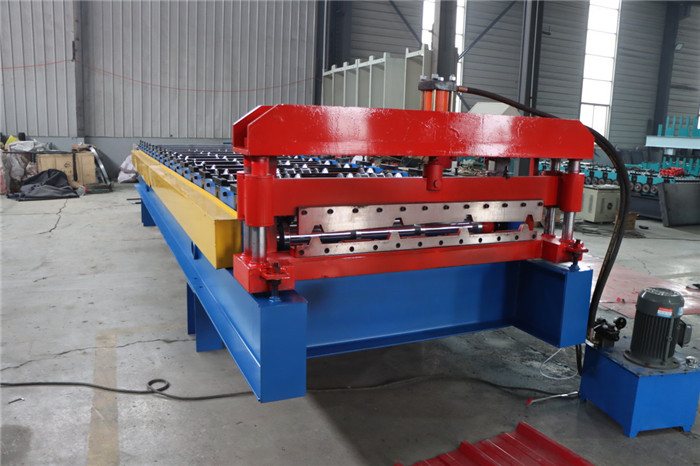

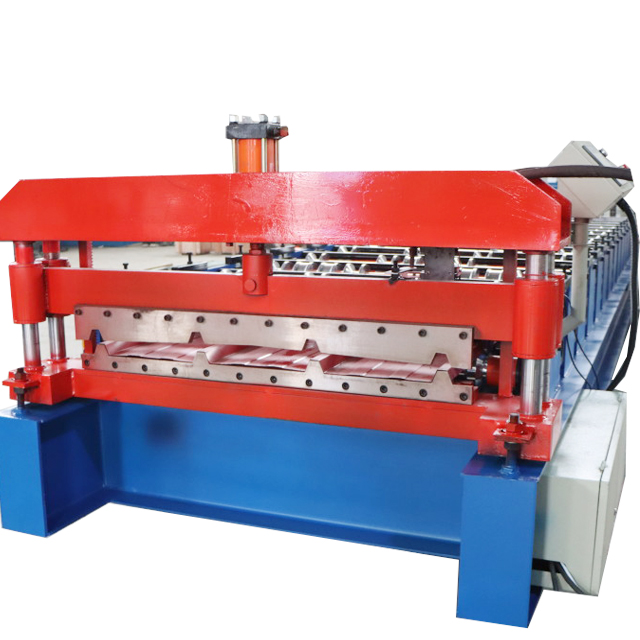

| 16 | Cutting system | Hydraulic cutter with two hydraulic Jacks |
contact at +8618330779870 to get more videos
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
