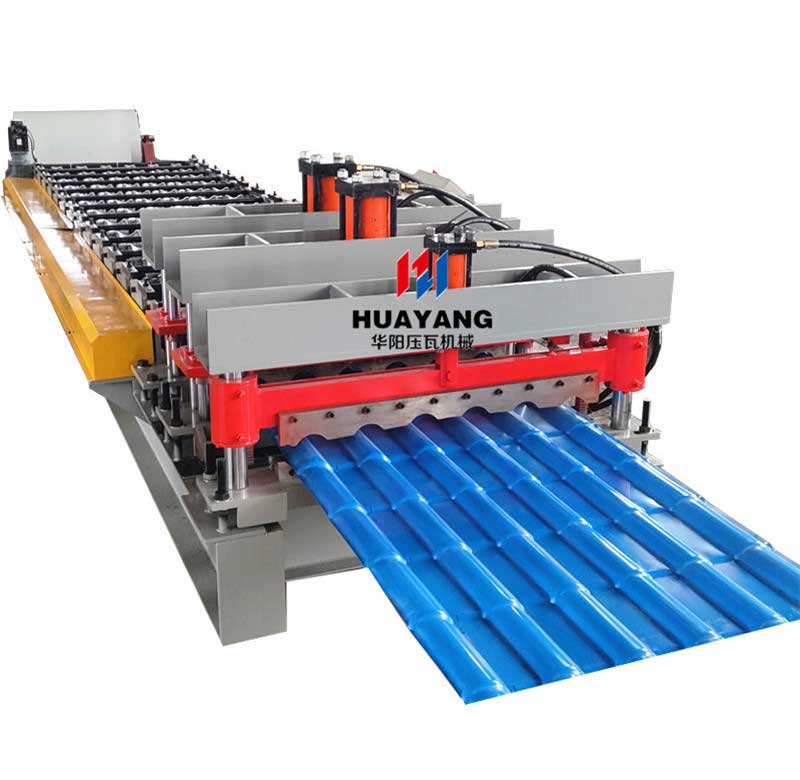

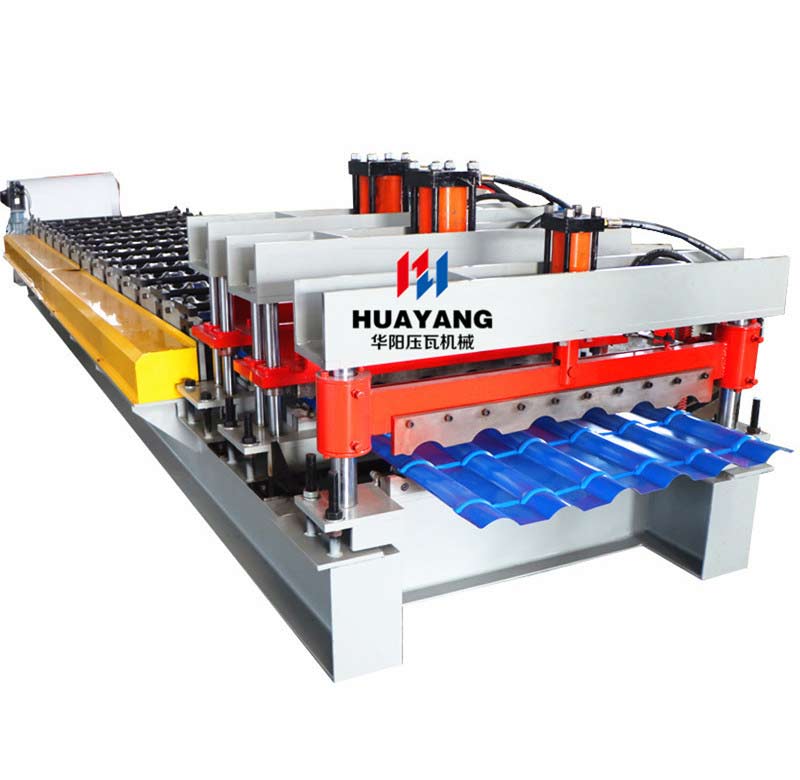

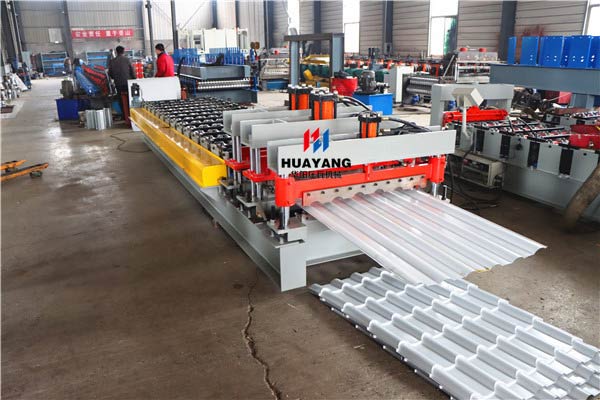

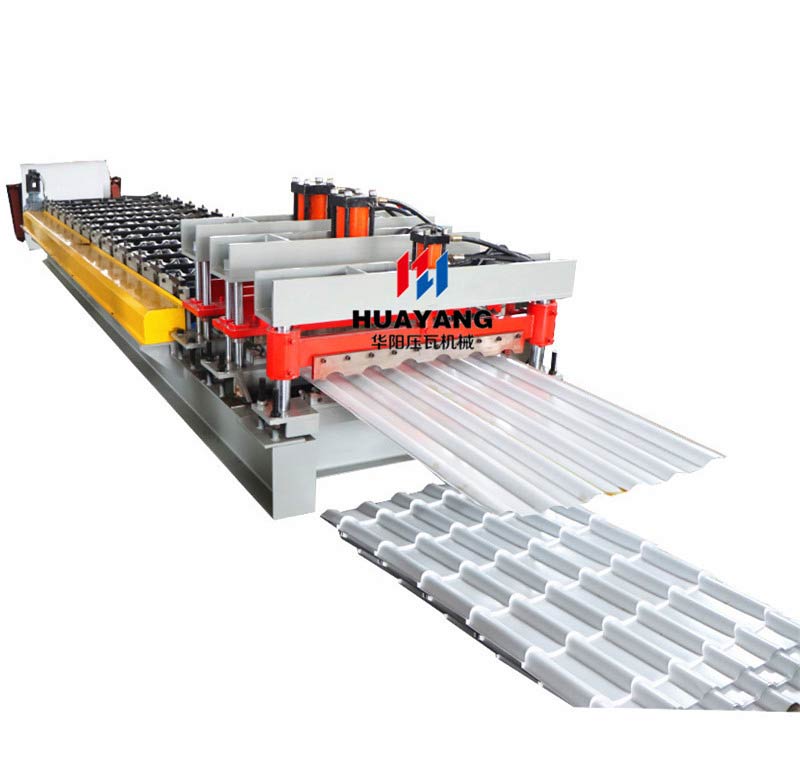

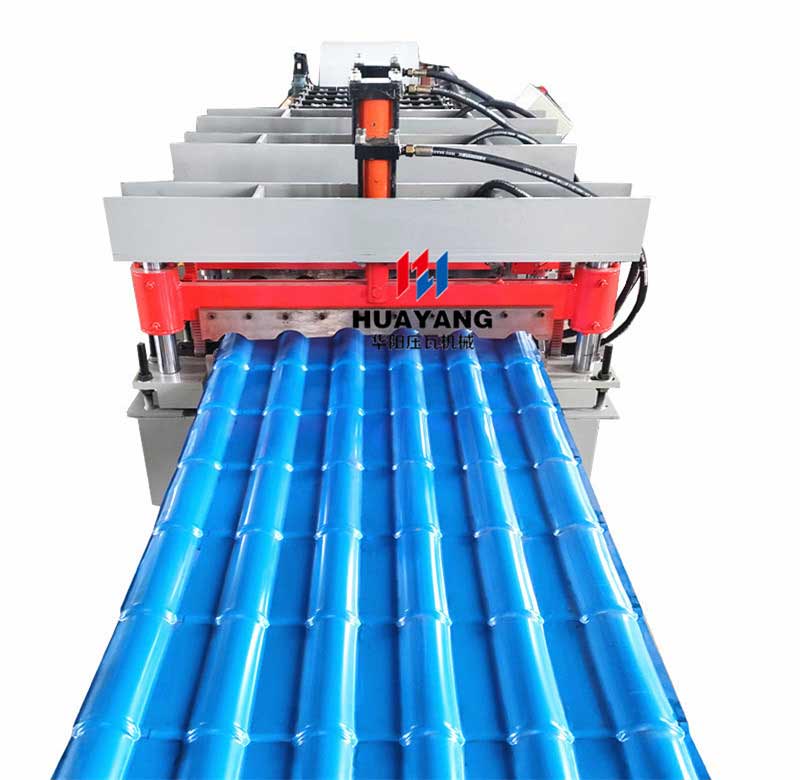

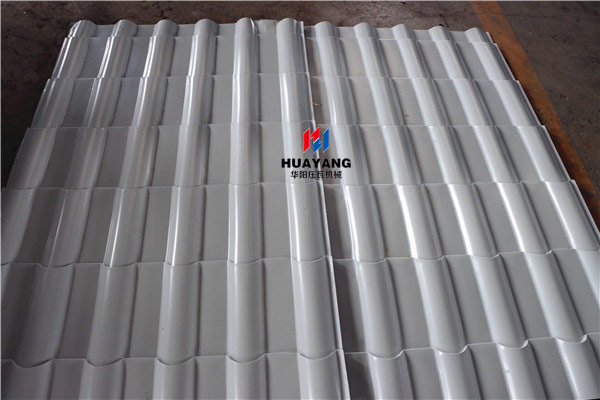

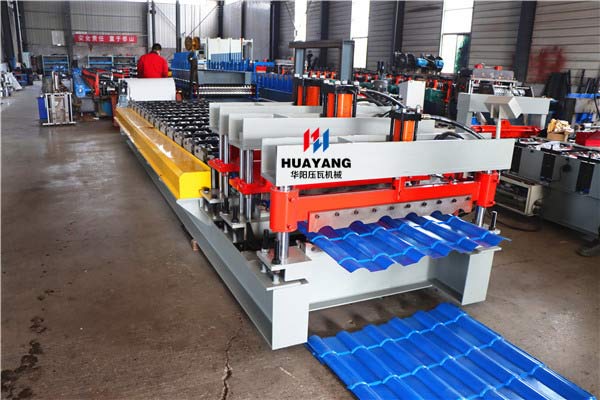

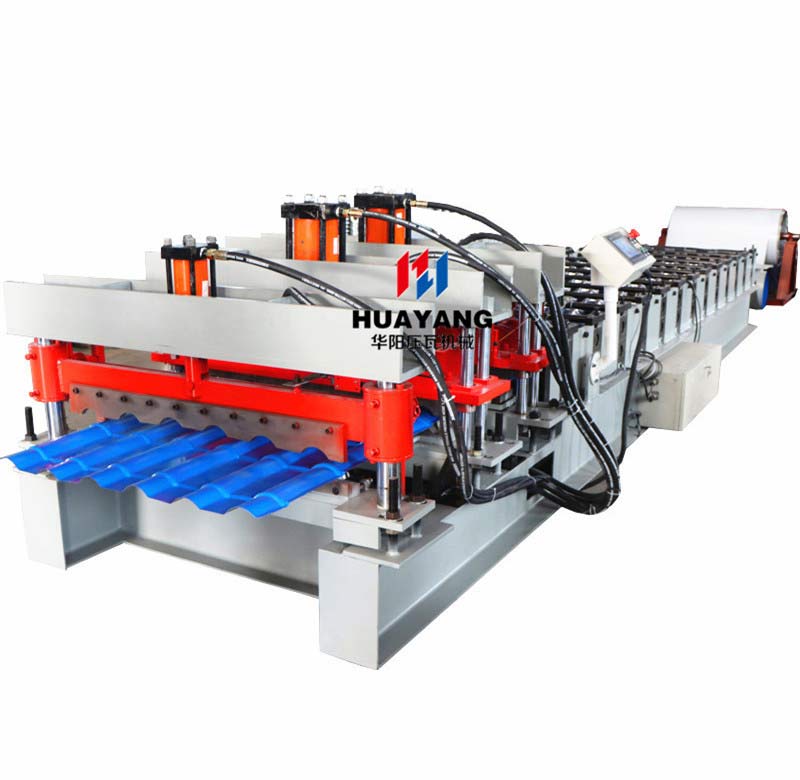

new type metal roofing sheet glazed tile roll forming machine can produce both Simulated resin tile and Bamboo glazed tile.

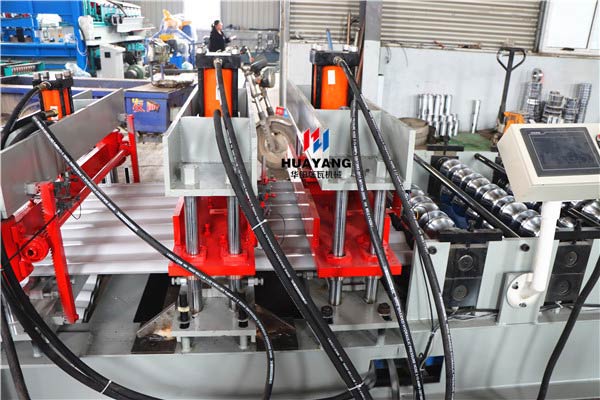

the new type metal roofing sheet glazed tile roll forming machine whole line included the decoiler -roll forming machine-press device(2sets)-cutting system-receive table
Components of Roofing Sheet Roll Forming Machine |
NO. | Name | Unit | QTY | Remark |
Part 1 | 7T Manual decoiler | set | 1 |
|
Part 2 | Roll forming part | set | 1 | Chain driving |
Part 3 | PLC control system | set | 1 | Delta brand |
Part 4 | Hydraulic system | set | 1 | Hydraulic |
Part 5 | Collect table | set | 2 | 3m/set |

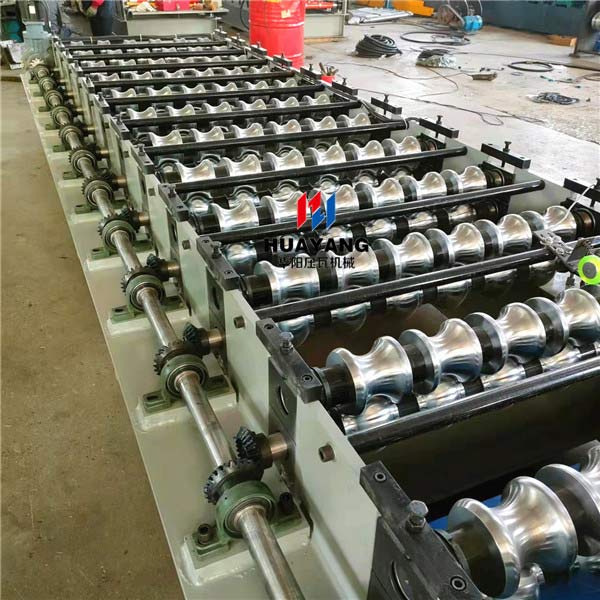

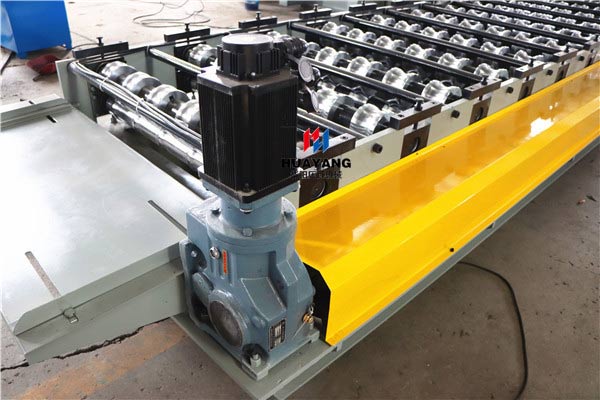

the new type metal roofing sheet glazed tile roll forming machine roll forming part details :
Rolling shaft | Shaft material:45# STEEL |
Shaft type: solid shaft |
Shaft diameter: 80 mm |
heat treatment |
Roller | 45# steel |
0.03mm Chromed treatment |
Rolling station | 11 rolling stations |
Middle wall plate thickness | 18mm thickness |
Work speed | 4-6 m/min |
Machine structure | Carbon steel welded structure |
Machine basic frame | 350# H steel welded |
Rolling spacer | Anti rusty treatment |
Transmission | By Gear |
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
