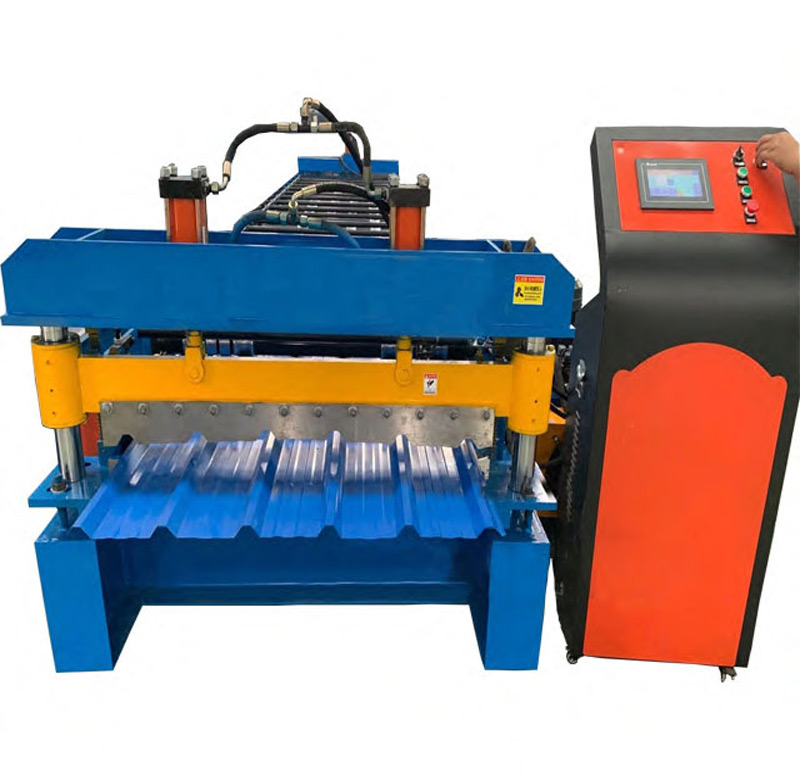

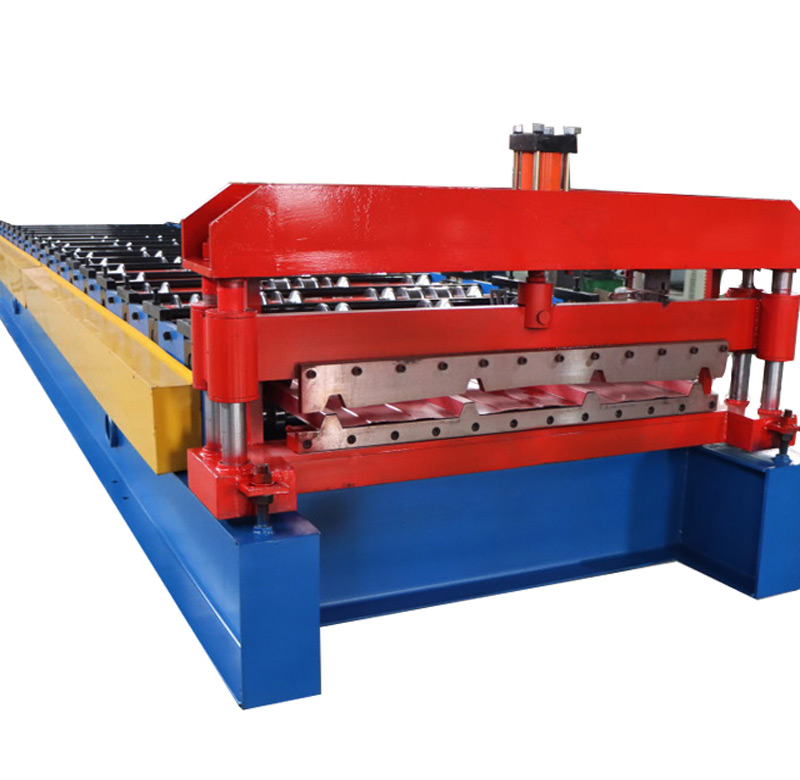

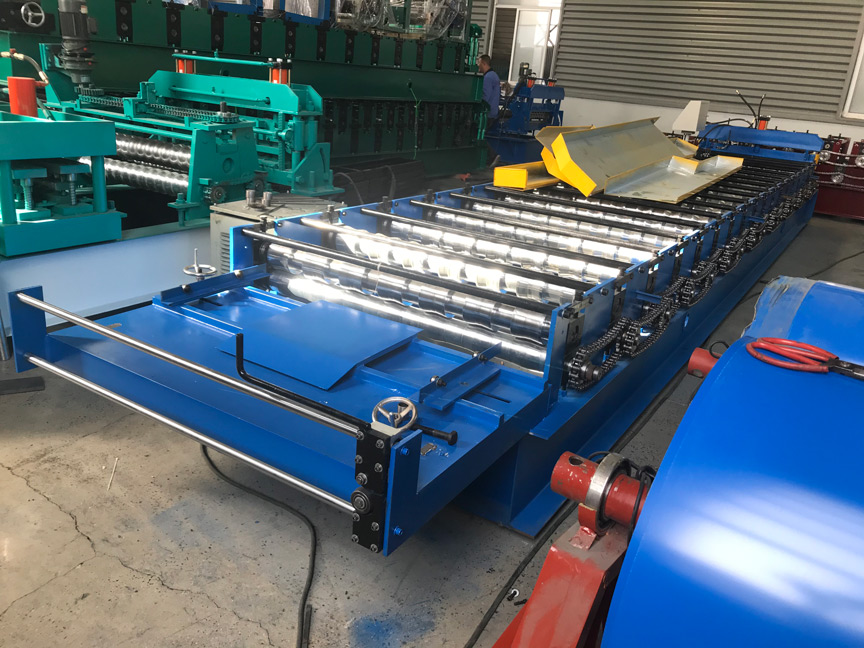

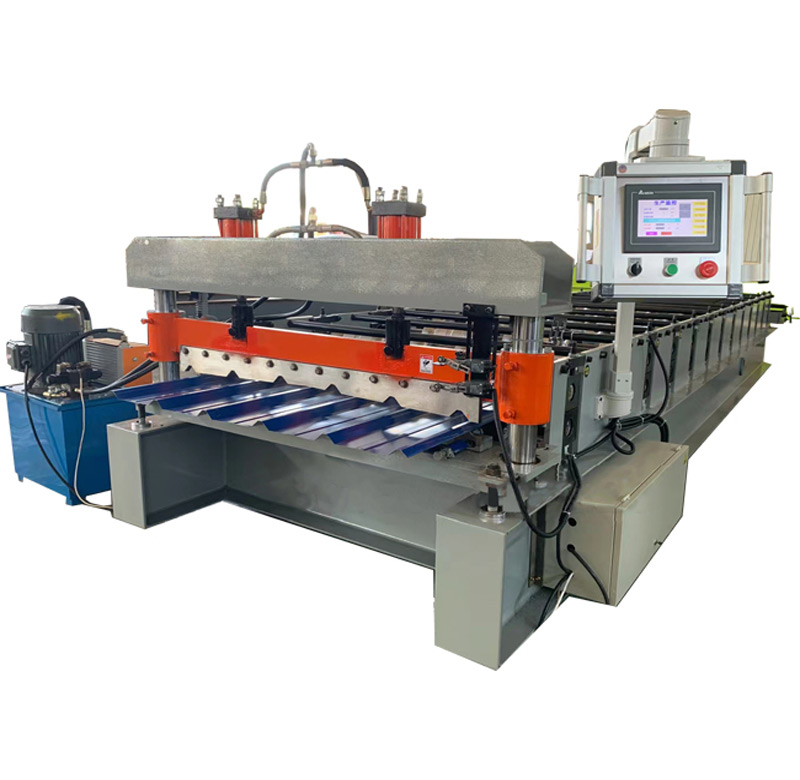

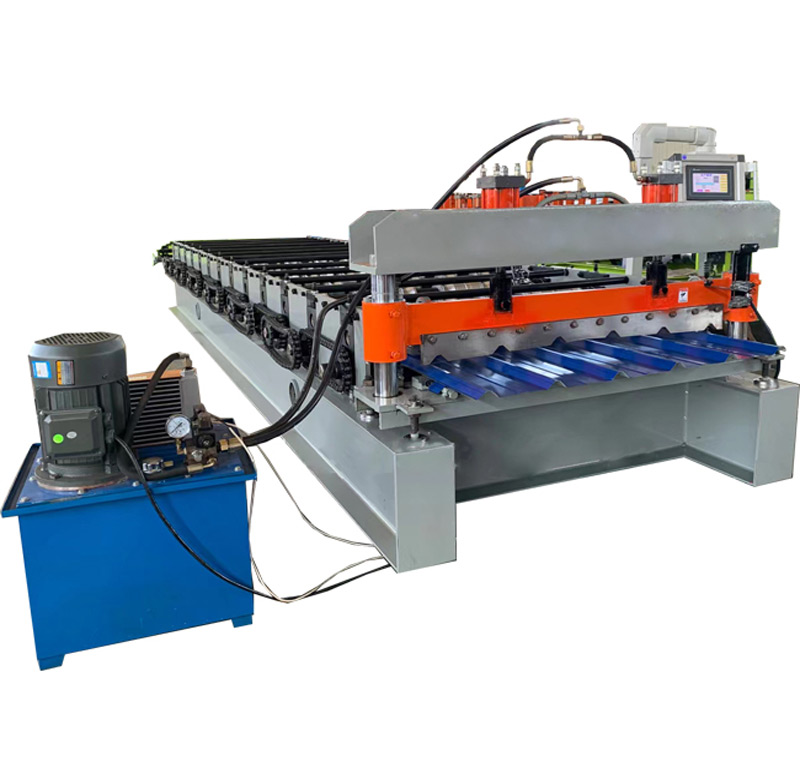

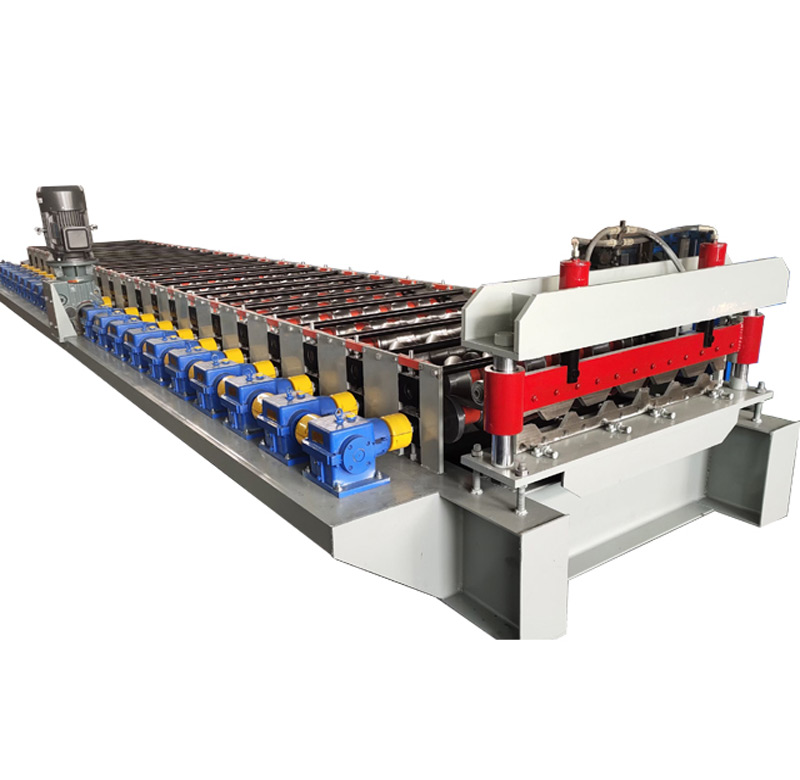

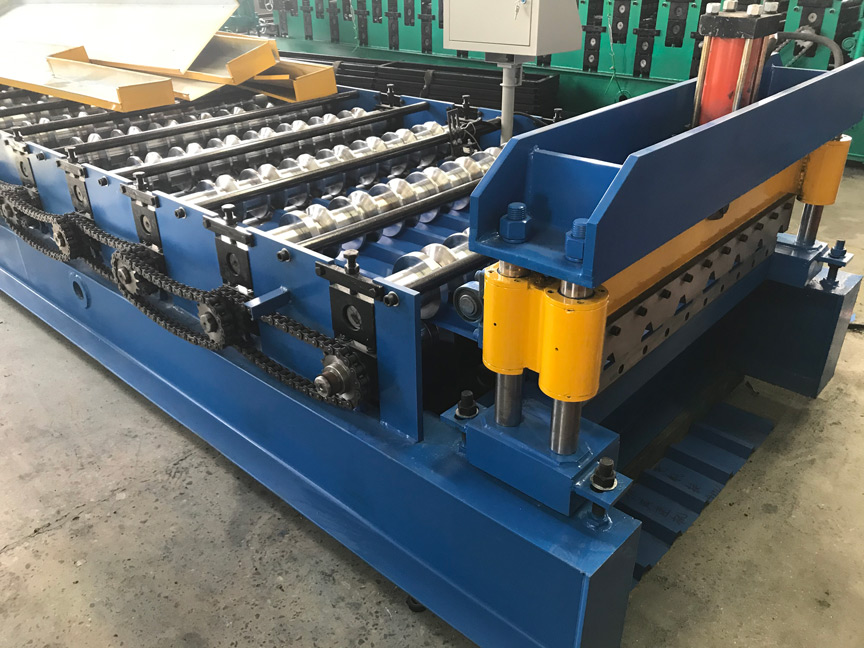

metal roof tile making machine is with Uncoiler ,roll forming, and cutting. The cold roll forming machine is a machine that continuously roll forming the metal plates such as coils, strips and other metal sheets to roll form a processing process for specific cross-section profiles through sequential multi-pass forming rolls.metal roof tile making machine is one type cold roll forming machine to produce the metal steel sheet ,which is popular used in the roofing ,building ,and new type steel structure fatory .
A,the process of the metal roof tile making machine

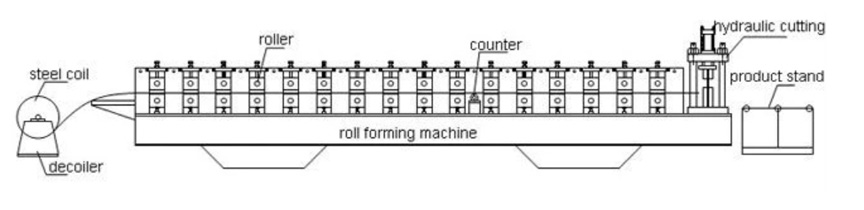

Decoiler-Roll forming machine -hydraulic cutting system-out put table
B,The describetion of the metal roof tile making machine
Feeding material: PPGI/ GI /aluminum
Thickness of the plate:0.3--0.8mm
Feeding width:1000mm/1200mm/customized
Machine size: 8000mmX1200mmX1100mm
Diameter of the axle :Φ80mm
Rolling stages:16stages
Productivity:15-20m/min
Total power: 5.5 kw machine motor + 4 kw pump station motor
Voltage:380V 50Hz 3phase or as requirement
Weight:about :8T
Base frame:300H steel
Side board thickness:18mm
Cutting blade: Cr12 with heat treatment

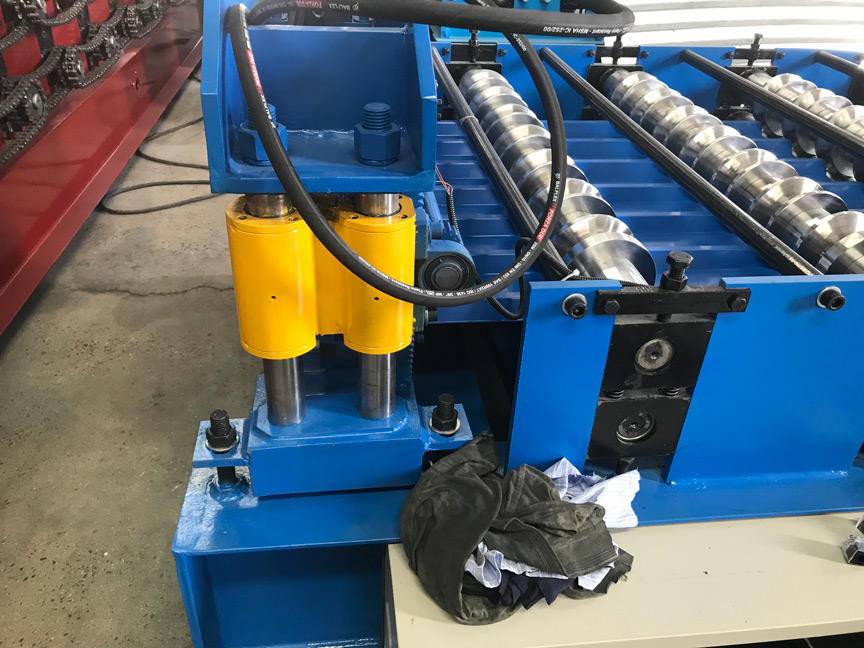

Cutting system: Hydraulic cutting system after forming
Control cabinet: PLC and frequency changer in it

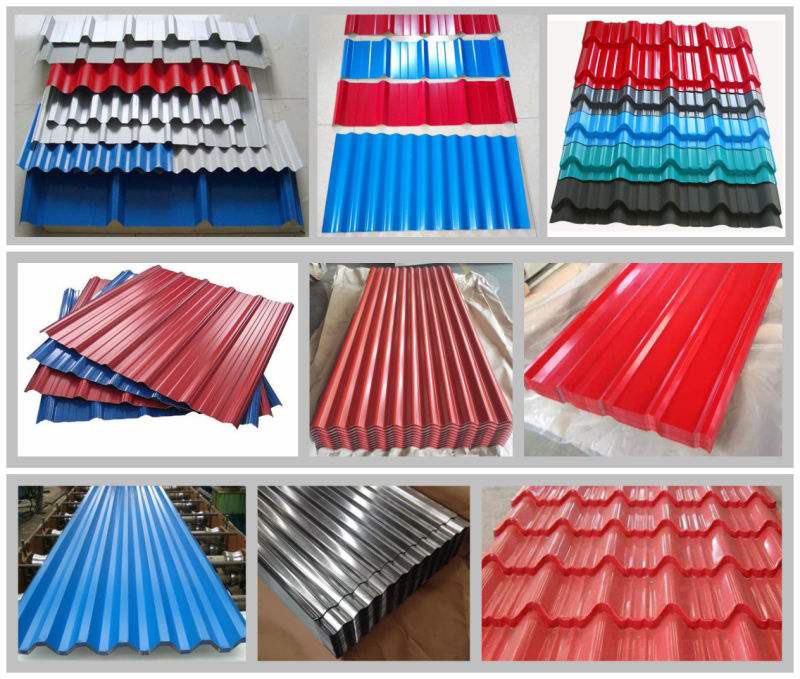

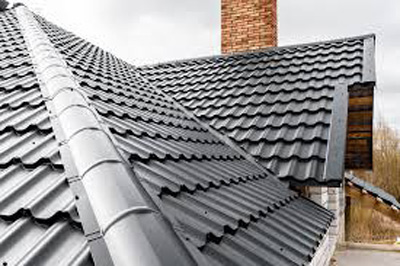

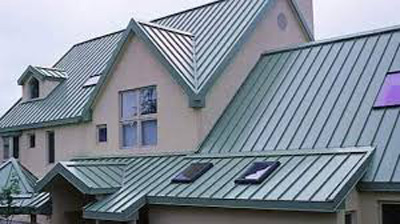

C,the final prodcut of the metal roof tile making machine

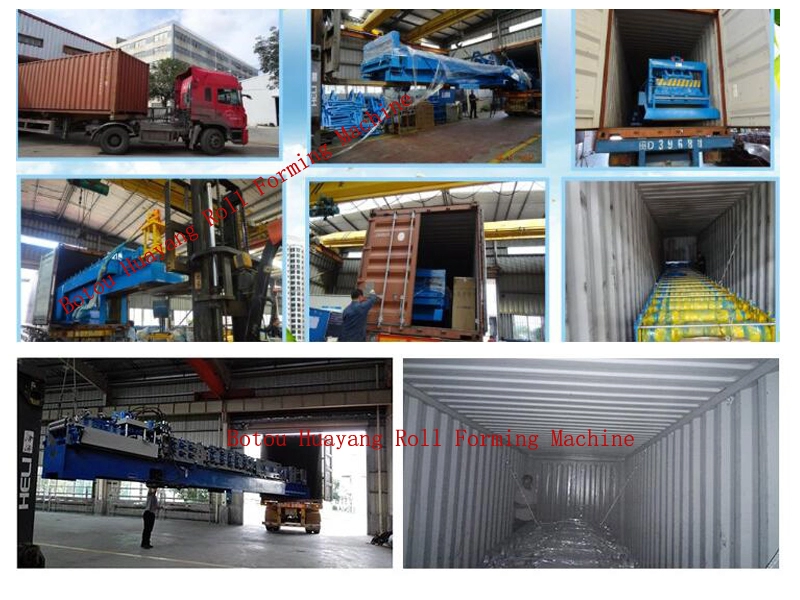

Packaging & Shipping
Main machine is nude, computer control box is packed with wooden box frame for c z purlin roofing sheet roll forming machine.
From Tianjin Xingang port
Customer from all over the world
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
