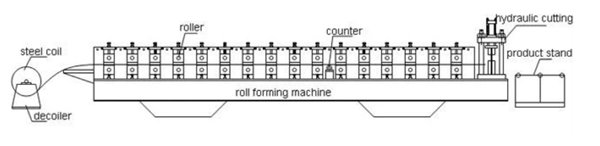

The glazed tile roll forming machine is with Uncoiler ,roll forming, and cutting. The cold roll forming machine is a machine that continuously roll forming the metal plates such as coils, strips and other metal sheets to roll form a processing process for specific cross-section profiles through sequential multi-pass forming rolls.

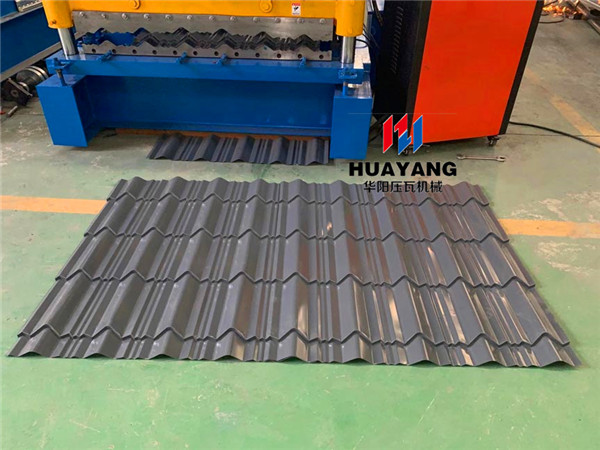

Antique glazed tiles have the characteristics of beautiful appearance, simplicity and elegance, exquisite and unique shape and taste. They can be widely used in garden factories, tourist scenic spots, pavilions and pavilions, hotels, villas, exhibition halls, resorts, families and other buildings and outdoor decoration.
our machine details (just for your reference ,different machines has different technical paratmeters.)
| 1 | Suitable material | Aluminium coil/galvanized steel/color steel coil |
| 2 | Width of the plate | 1000mm |
| 3 | Thickness of the plate | 0.4-0.6mm |
| 4 | Production speed | 4m/min |
| 5 | Roller material | 45# steel |
| 6 | Diameter of active shafts | 80mm |
| 7 | Shafts steps | 14 rows |
| 8 | Thickness of wall plate | 16mm |
| 9 | Control system | PLC control system (Delta) |
| 10 | Frame | 300H steel |
| 11 | Main motor power | 5.5kw |
| 12 | Cutting power | 4kw |
| 13 | Cutting material | Cr12 |
| 14 | Weight | About 8T |
| 15 | Size of machine | About 8.5*1.35*1.2m |

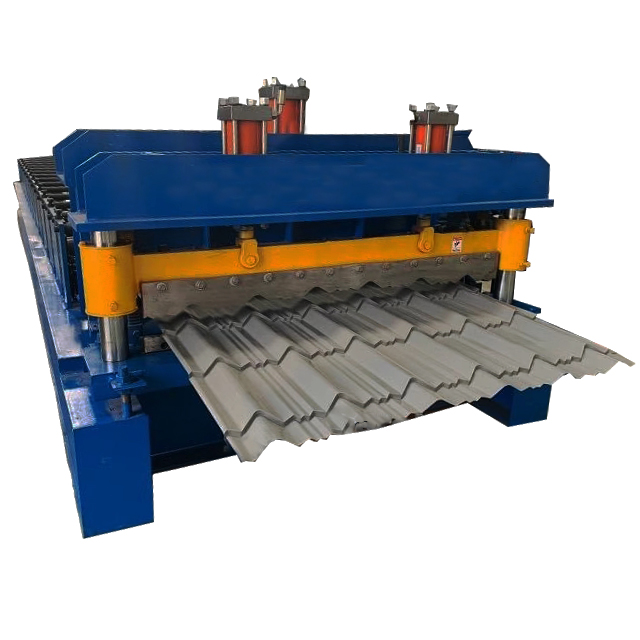

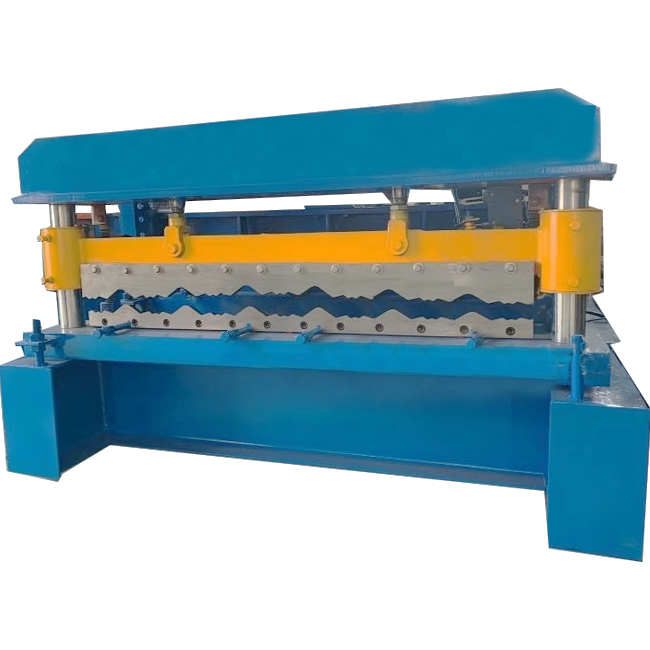

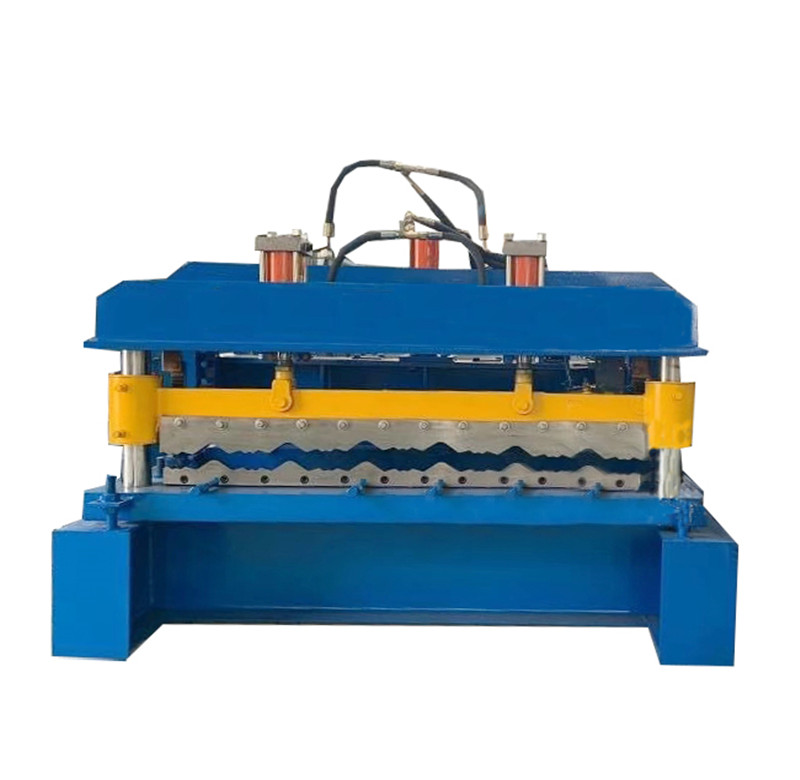

Our Machine Details
Customer from all over the world
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
