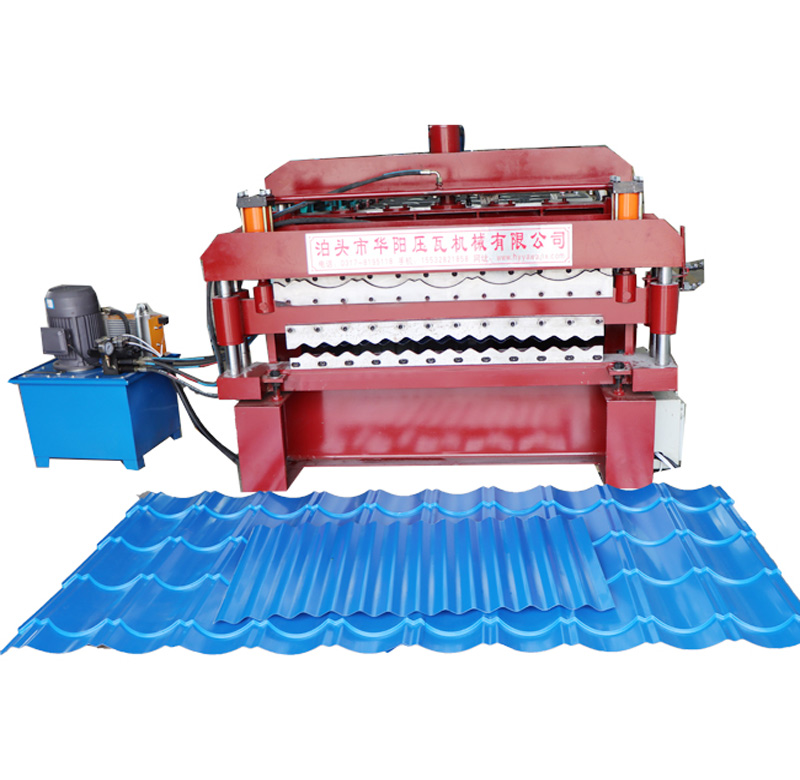

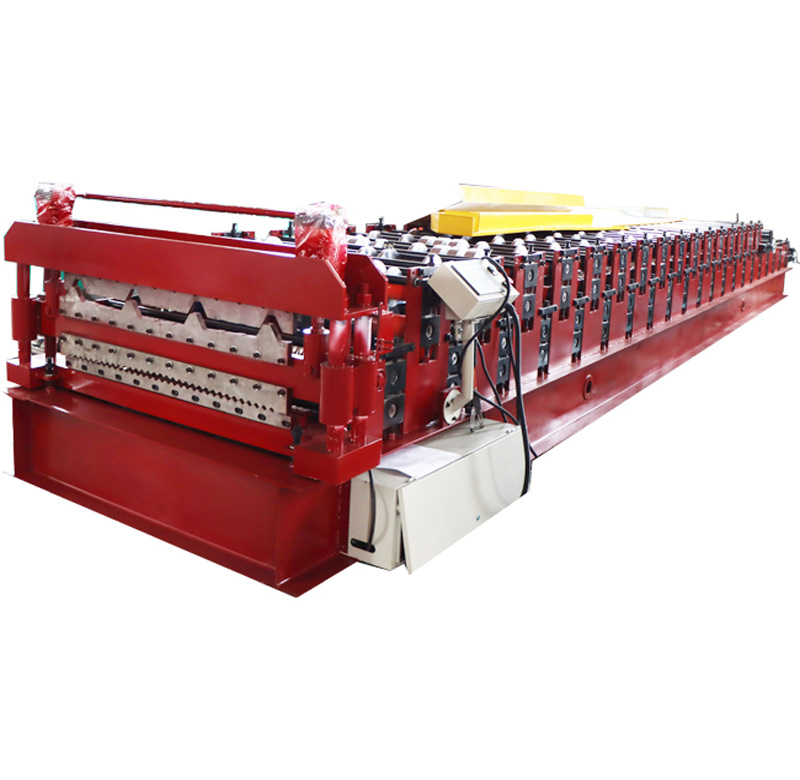

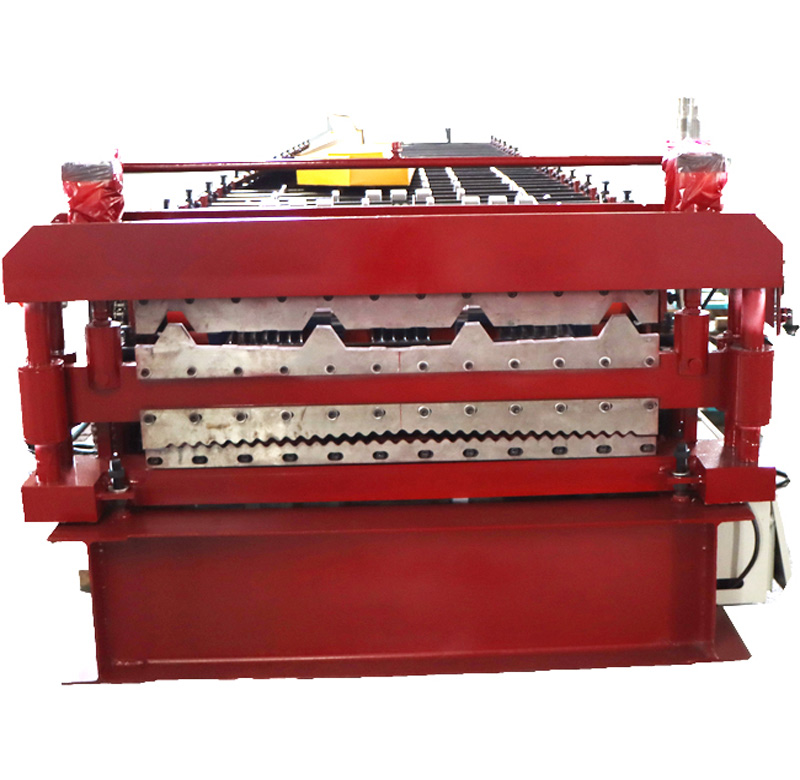

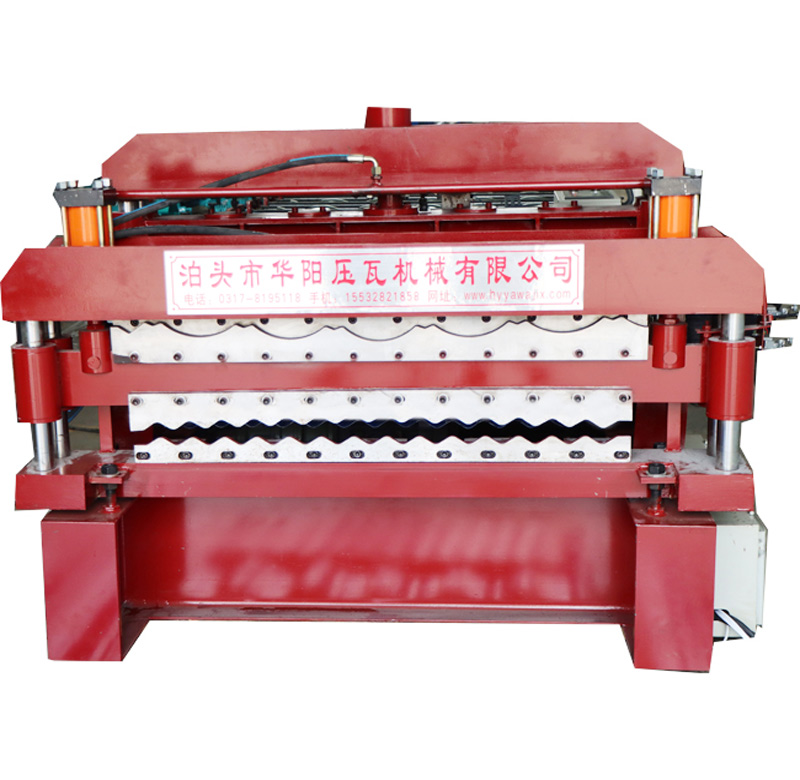

Double layer roll forming machine is to meet one machine can produce two types metal sheet .two sets roll forming models are intalled in one bottom frame body .one set double layer roll forming machine include decoiler ,feeding device ,roll forming ,hydraulic cutting and receiving table .fist layer can produce one type sheet ,second layer can produce another type.

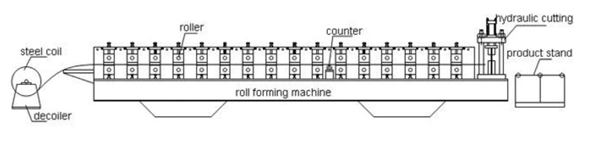

the process of the double layer roll forming machine
decoiler-feeding device -roll forming machine -hydraulic cutter-output table
Main parameters of double layer deck roof tile roll forming machine
| 1 | Suitable material | galvanized steel/color steel coil |
| 2 | Width of the plate | 914mm |
| 3 | Thickness of the plate | 0.3-0.8mm |
| 4 | Production speed | 8-15m/min |
| 5 | Roller material | 45# steel |
| 6 | Diameter of active shafts | 70mm |
| 7 | Shafts steps | Upper:16 rows | Bottom:16 rows |
| 8 | Thickness of wall plate | 20mm |
| 9 | Control system | PLC control system (Delta) |
| 10 | Frame | 350H steel |
| 11 | Main motor power | 3 kw |
| 12 | Cutting power | 3 kw |
| 13 | Cutting material | Cr12 |
| 14 | Size of the machine | About 8.5*1.55*1.5m |
| 15 | Weight of the machine | About 4.6T |

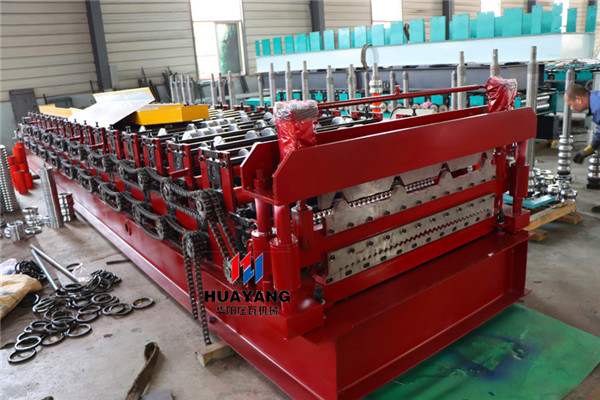

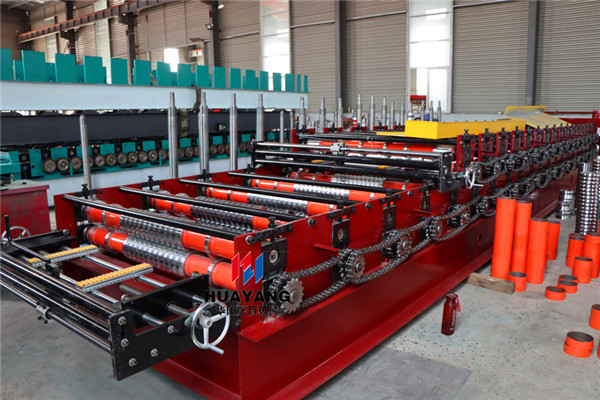

chan drving ,smooth ,no noise ,longer life time

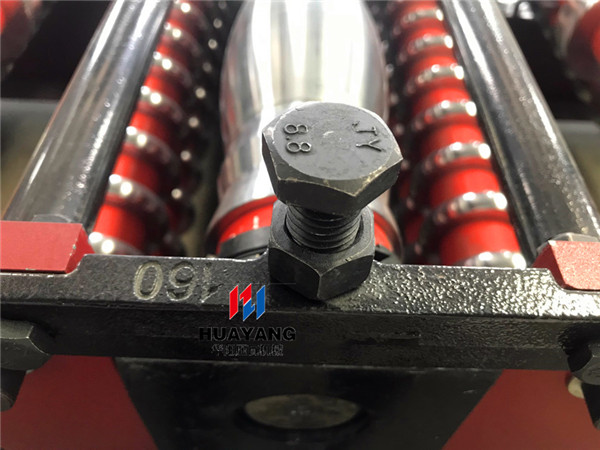

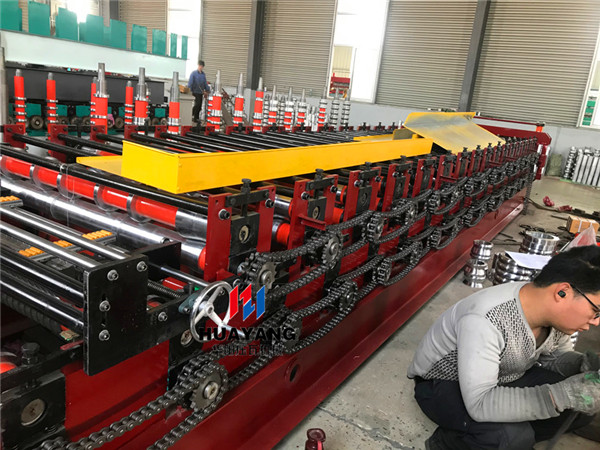

Suite side panel and thickening Fixings,which can keep the machine longer life time ,make the machine stable .

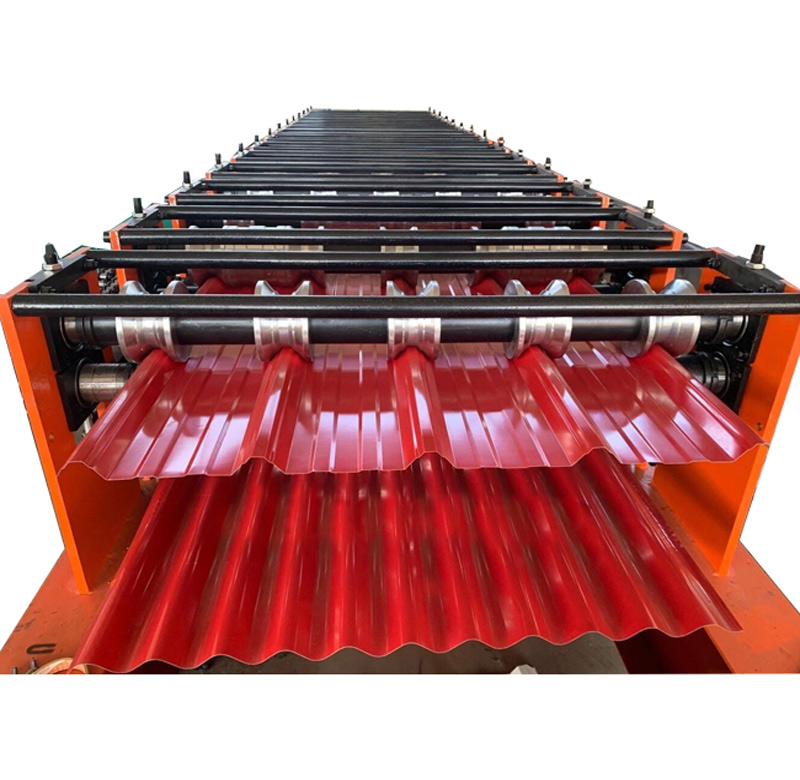

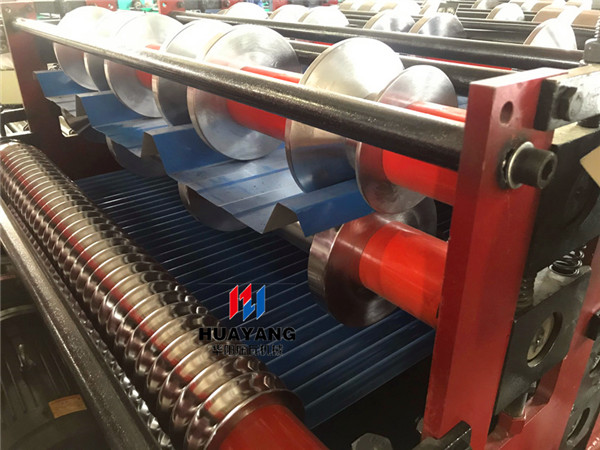

16+18roller stations .make the sheet shape perfect .Cr12MOV roller model with heat treatment
no Paint scratch,longer life time .

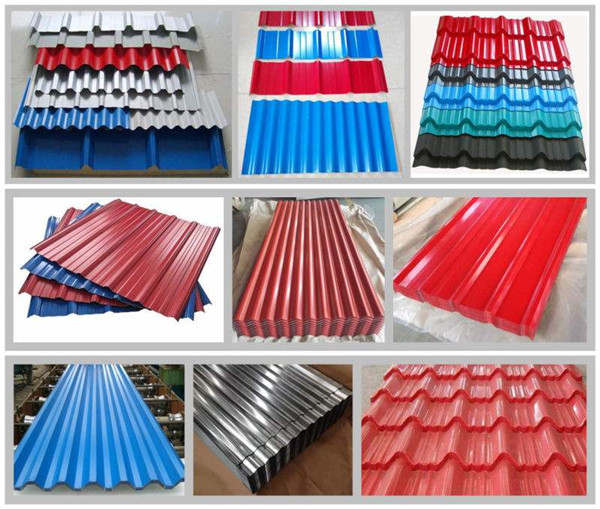

Products picture of double layer deck roof tile roll forming machine
