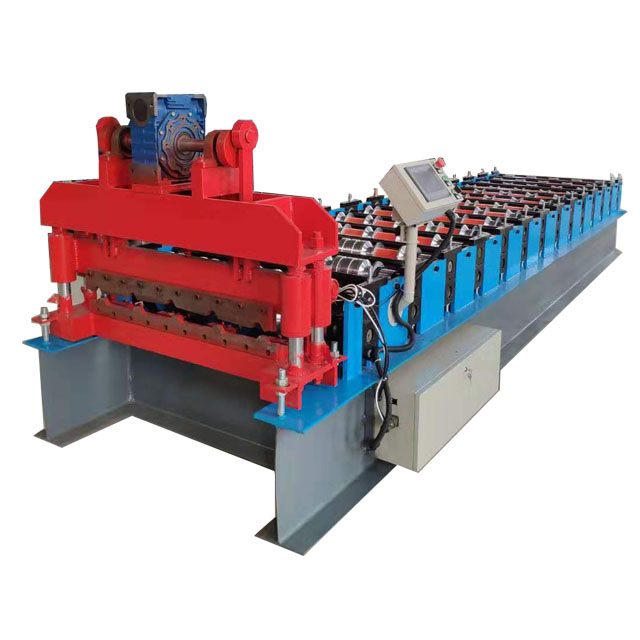

building material tile making machinery

building material tile making machinery  is designed to make the IBR sheets in batch fully automatically and those roofing sheets which are widely used in GBR.

Layout of building material tile making machinery

Uncoiling– Feeding and Guiding– Roll Forming– Cutting Off– Collecting.

Main Machine Components and Technical Specifications of building material tile making machinery :

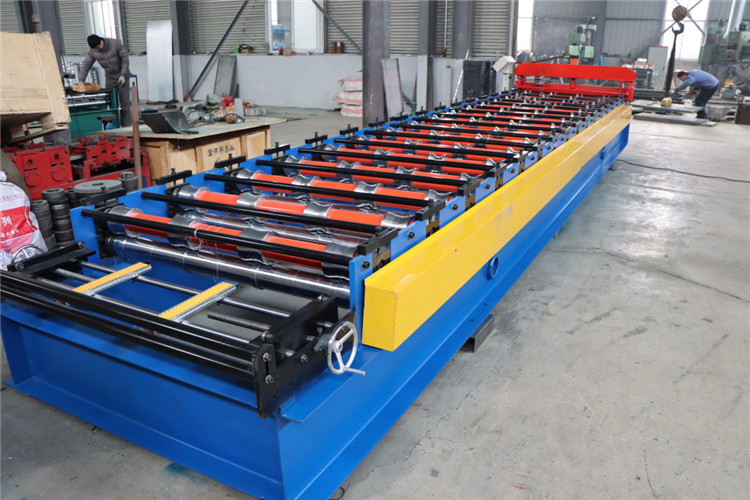

Roll Forming Machine Part:

1. Coil Material: GI, PPGI, SS, HR, CR. 235-550MPA

2. Thickness range: 0.2-0.8mm

3. Line Speed : 15-20m/min

4. Main motor power: 7.5KW

5. Machine Voltage, Frequency, Phase:440 V, 50 Hz, 3Phase

6. Roll station: 20 stations

7. Roller material:ASTM 1045 chrome plated surface with hardness 58-62 degree ,CNC,

8. Shaft diameter: ￠76mm material: ASTM1045 with quenching and tempering

9. Transmission: by chain

10. Machine base frame adopt H beam welding steel

11. Machine chromed pillar as the stands

12. To avoid accidents,all of drive part adopt protect cover

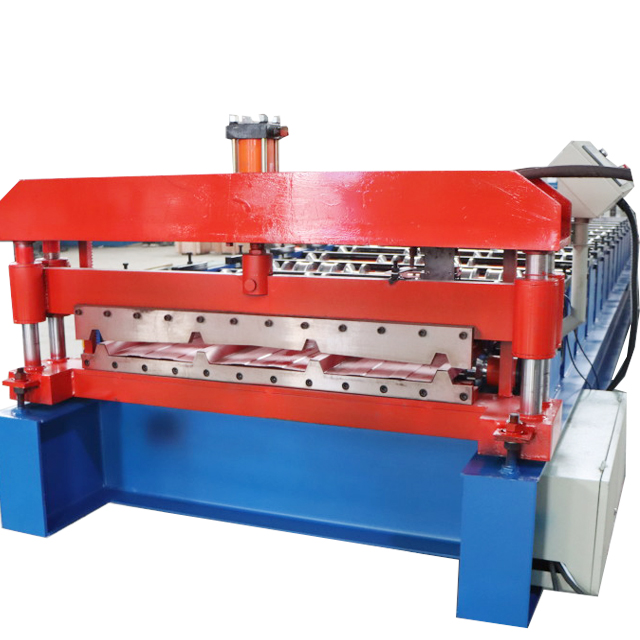

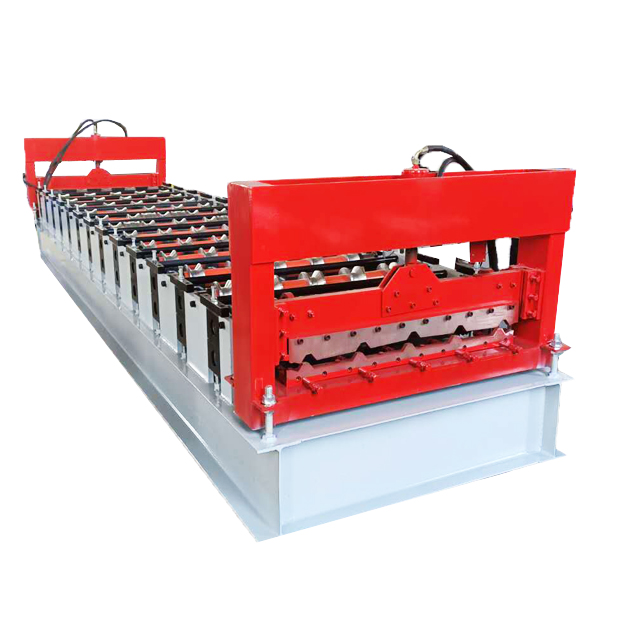

Shearing part of building material tile making machinery:
With 4 pillar poles for beautiful appearance and long time to use.

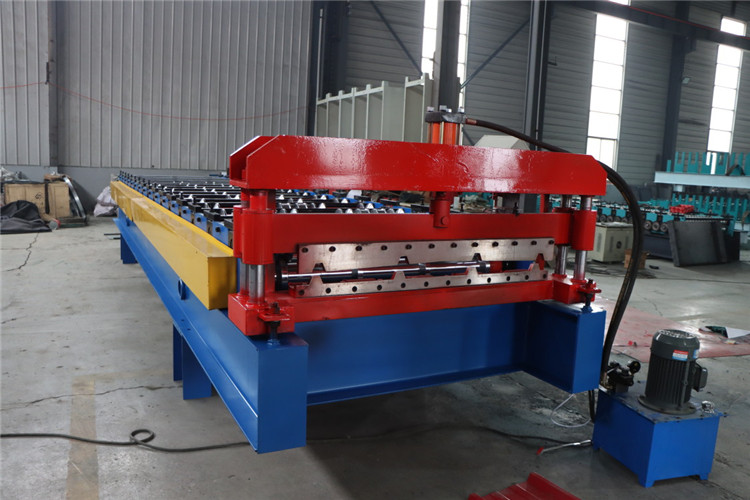

1. Cutting type: hydraulic, connect with the punching hydraulic unit

2. Cutting power by hydraulic, 5.5KWAC motor

3. Hydraulic working pressure: 12-16Mpa

4. Cutting after forming: Cut the sheet before roll forming to required length

5. Cutting motion: The roll forming part is NON-stop when cutting

6. Material of blade:Cr12 with heat treatment

7. Length measuring: Automatic encoder length measuring, brand: Omron

8. Tolerance of length: +/- 1.5mm each piece end product

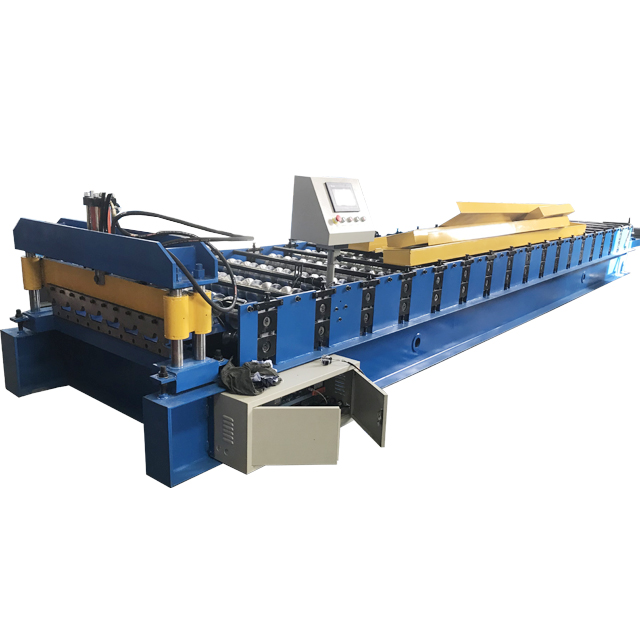

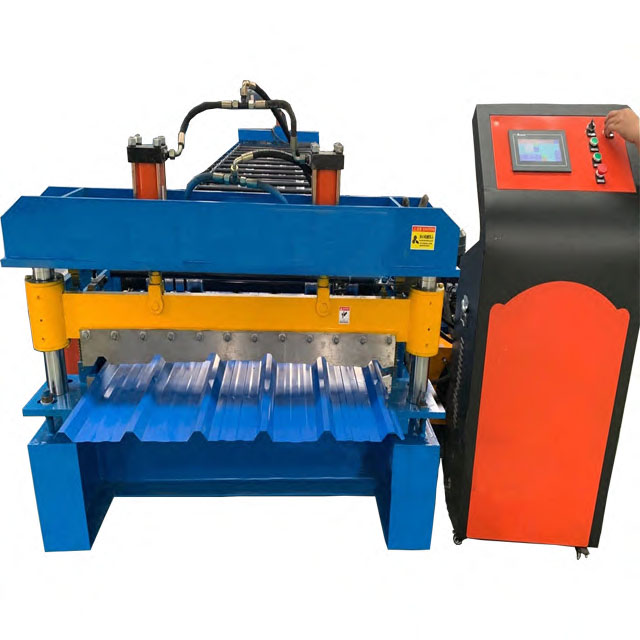

Controlled Box of building material tile making machinery

1. Programmable setting of profile dimensions: to be provided

2. Programmable cutting unit, various lengths in one programming cycle without quantity restrictions (without stopping the operating equipment)

3. Automatic stopping of the equipment after completion of the cutting program

4. Operating system language: English and Chinese.

5. Voltage, Frequency, Phase: 415 V, 50 Hz, 3Phase

6. Length inaccuracy can be amended easily.

7. Control panel: Button-type switch and touch screen

8. Unit of length: millimeter (switched on the control panel)

9. PLC brand: Panasonic

10. Frequency converter brand: Yaskawa

11. Touch screen: MCGS

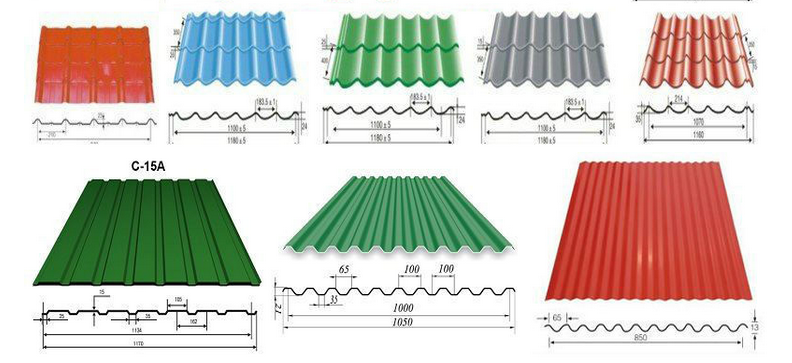

What is the metal tile

metal roof is produced by the tile making machinery to roll forming the steel coil to get box wave,corrugated wave or

glazed wave ,the materila is light and colorful .it also has a capillary groove down one edge which eliminates the need for using sealing strips and is  proof.
