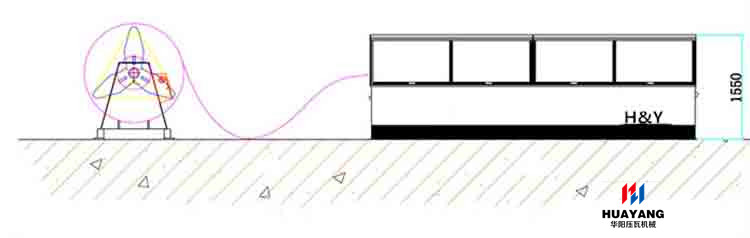

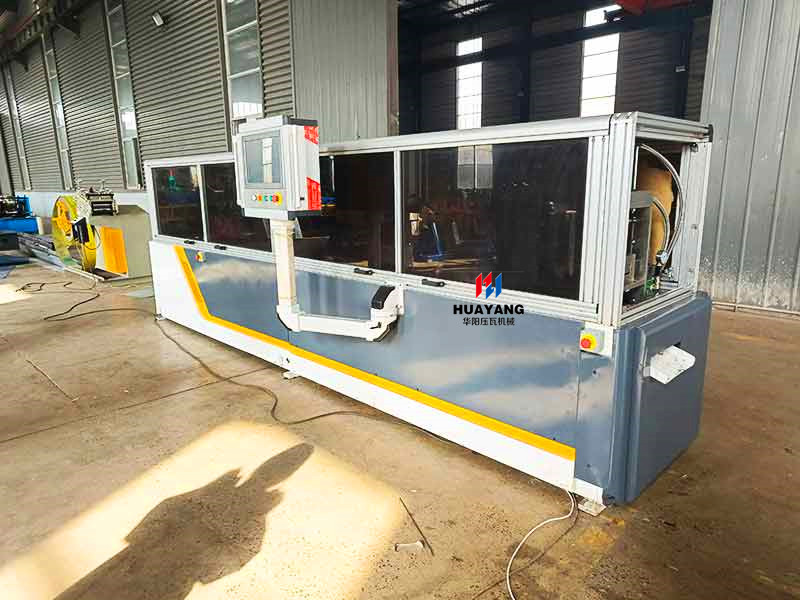

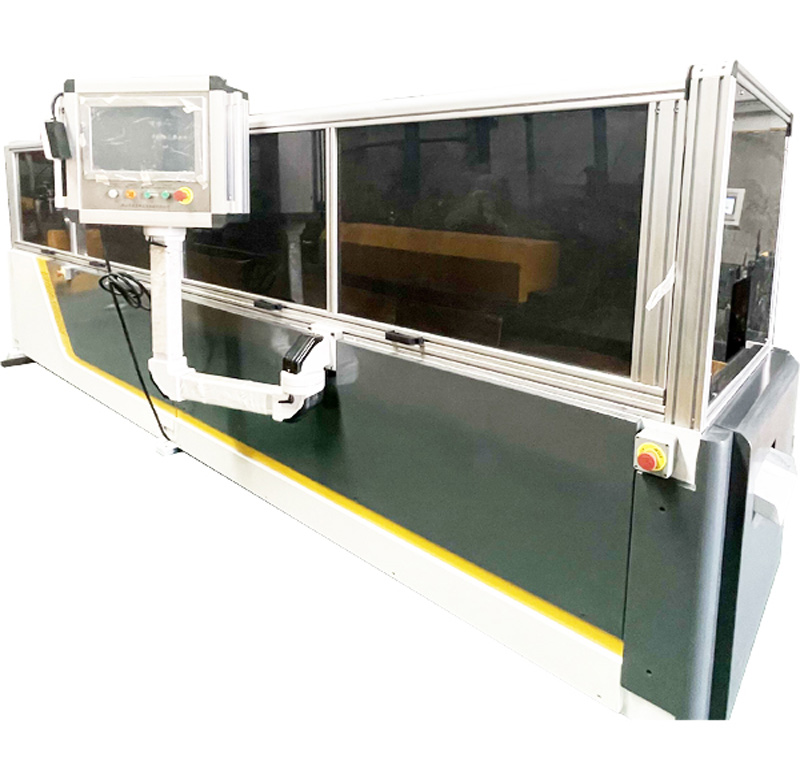

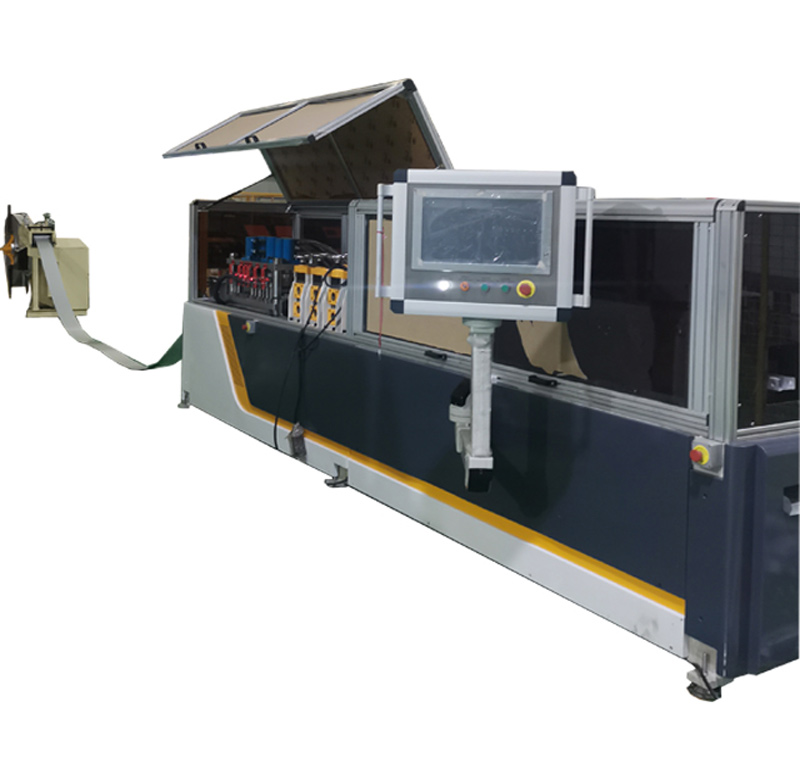

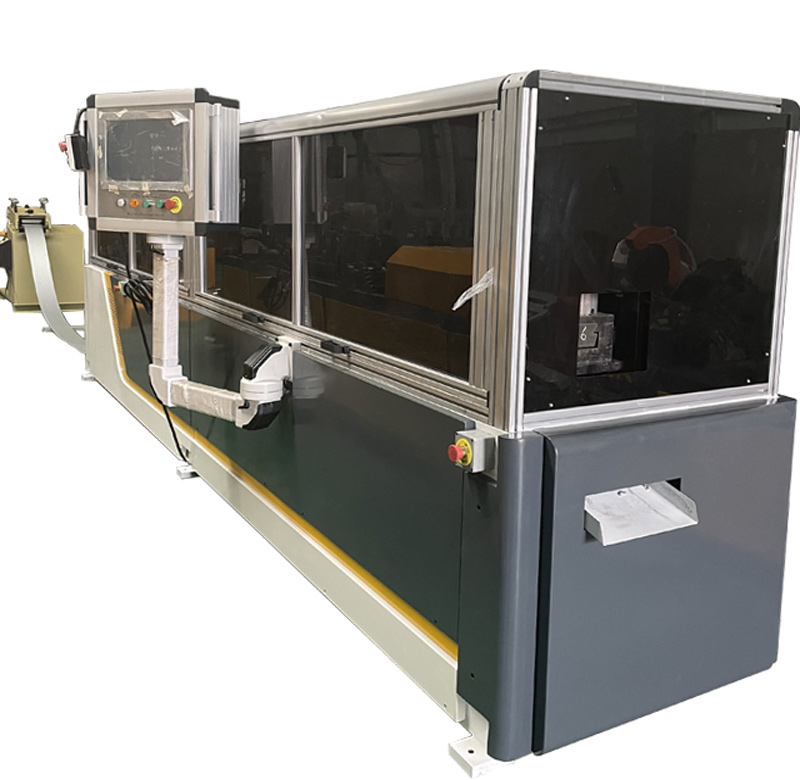

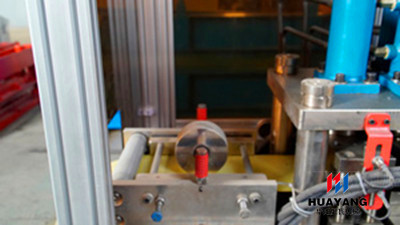

LGS villa house steel frame forming machine is professioanl producing the light steel house's steel frame.Automatic decoiler- leveling device-encoder-punching-guiding device -roll forming -Inkjet code -cutting-out put table. The raw material need put on the decoiler ,After straightening, the output enters the material guide port of the forming host,Punch through code counting,Conduct secondary guiding feeding again,keep the material straight ,then roll forming ,After forming, necking, code spraying and shearing shall be completed in turn as required.
LGS villa house steel frame forming machine advantages
No. | Main machine parameters |
1 | Section size | C89-41 |
2 | Raw material | PPGI,GI,AL |
3 | Raw material thickness | 0.8-1.2mm |
4 | Speed | 300-900m/h |
5 | Max speed | 1500m/h |
6 | Main power | 7.5kw |
7 | Hydraulic power | 7.5kw |
8 | Voltage | 380v,50hz or as customer’s requirement |
9 | Hydraulic oil pump | 120L |
10 | Machine size | 4900*1000*1500mm |
11 | Control system | PLC control |
12 | design software | Vertex |

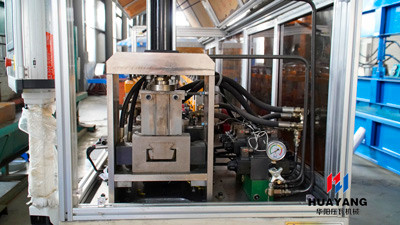

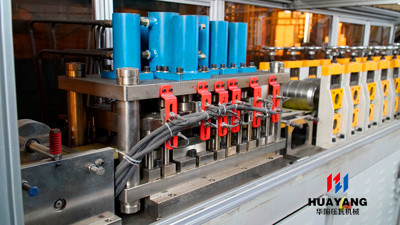

Punching part:SKD11 MODEL,can be used more than 3 million times, dimple screw holes, web through holes, pipeline holes, etc.can keep the error within 0.5mm,which ensure the seamless connection of materials, and achieve double load-bearing screws and keel materials

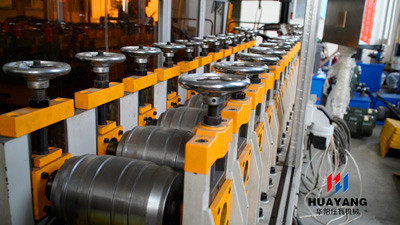

Forming roller: 12roller station ,Stable performance, fast discharging, straight material,vertical structure, support 24 hours work. It can produce 760kg per hour, 5-7 tons in 8 hours.

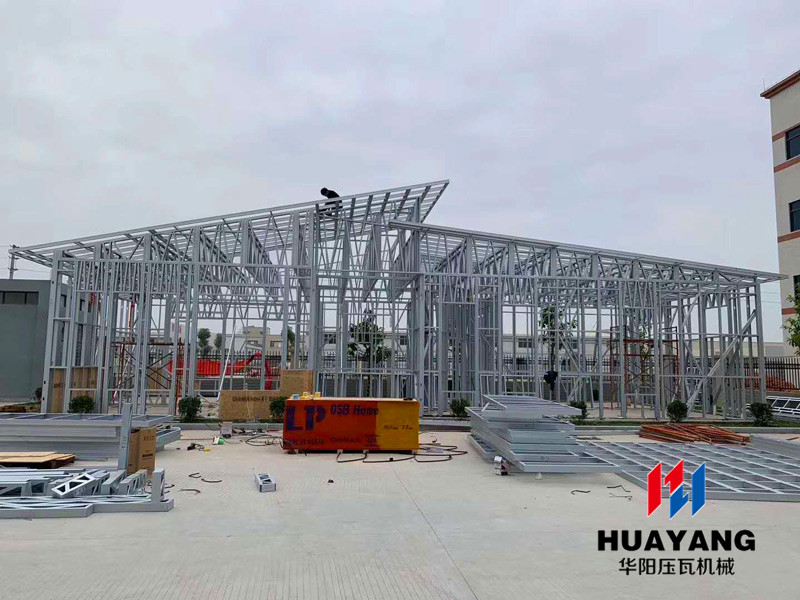

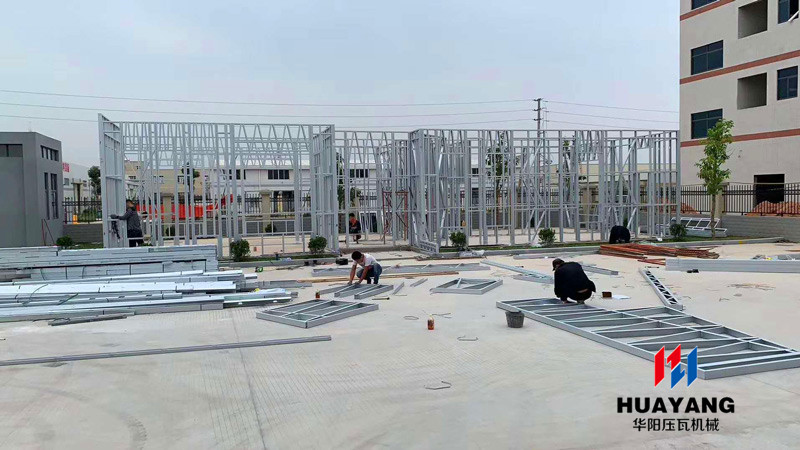

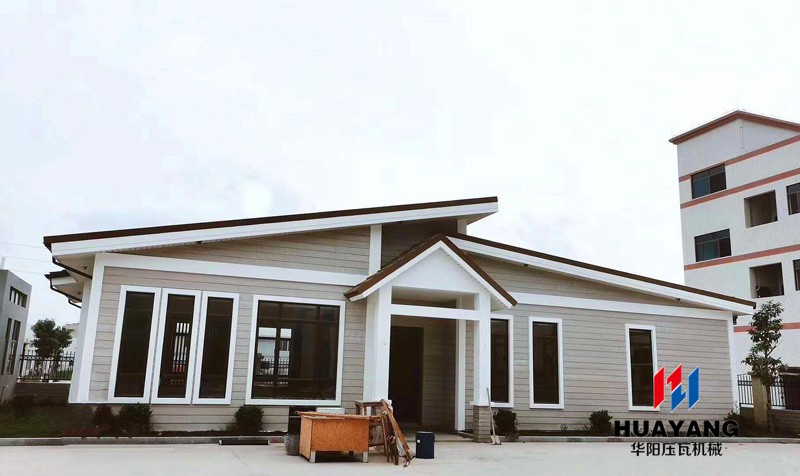

the projects of our lgs machine
Seismic resistance: it can resist 9 ° rare earthquake and is suitable for areas with seismic intensity above 8 °. Wind resistance: it can resist 70m / s Hurricane and the wind resistance grade can reach grade 12
Durability: the service life of the main structure can reach more than 100 years
Fire resistance: according to different design, the fire resistance time can reach 1 ~ 4 hours
Sound insulation: the sound insulation of the external wall can reach 65dB, and the sound insulation volume of the internal wall can reach 45dB
Thermal insulation: the thermal resistance of 200mm thick composite wall can reach 3.2m2k/w, 11 times that of equal thickness brick wall. Environmental protection: steel structure materials can be 100% recycled, and most of other supporting materials can be recycled
Energy saving: new thermal insulation materials are adopted, and the energy required for heating and cooling is 65% more energy-saving than that of traditional buildings. The occupancy rate of light steel integrated houses is 5% ~ 15% more than that of traditional buildings
Construction period: the standardized assembly operation of light steel structure residence is simple and fast, saving 2 / 3 of the construction period compared with the traditional structure
Due to our mature technology, our machines are deeply loved by customers all over the world. At present, our products have been sold to many countries all over the world
welcome contact to know more
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
