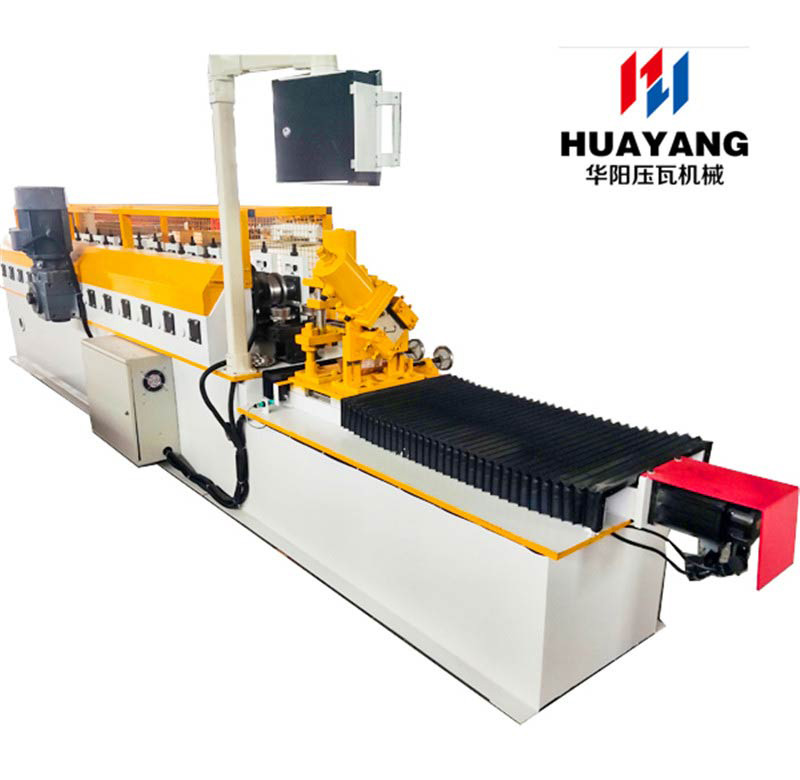

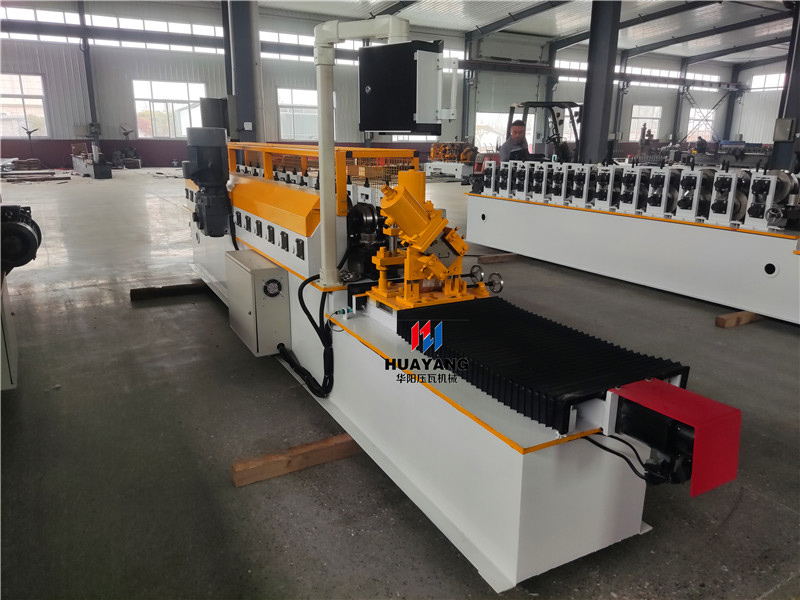

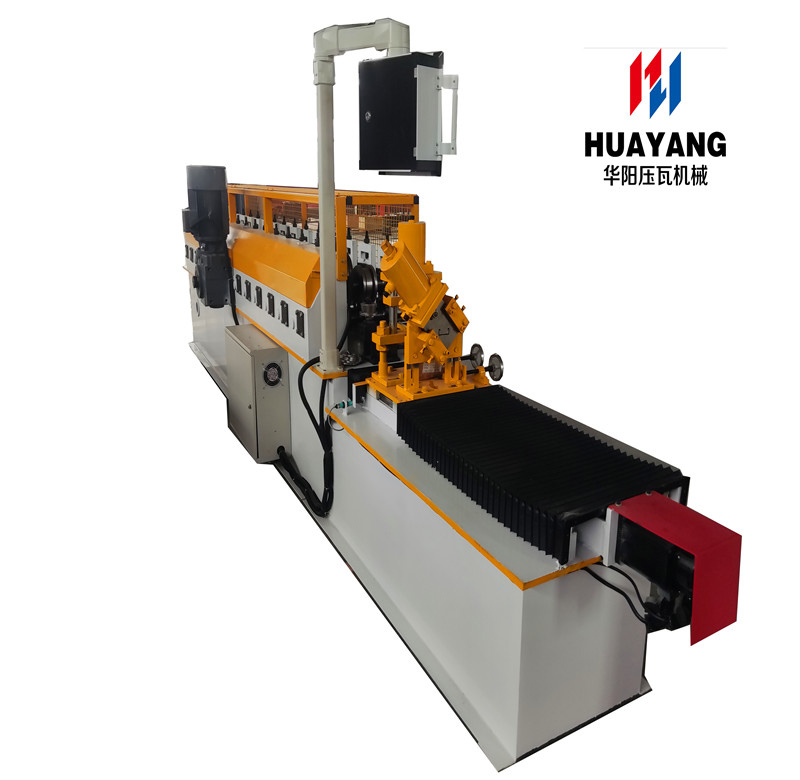

metal stud and track roll fomring machine is the full automatic line including the decoiler ,roll forming ,cutting and output table to produce the light gauge steel frame stud and track .

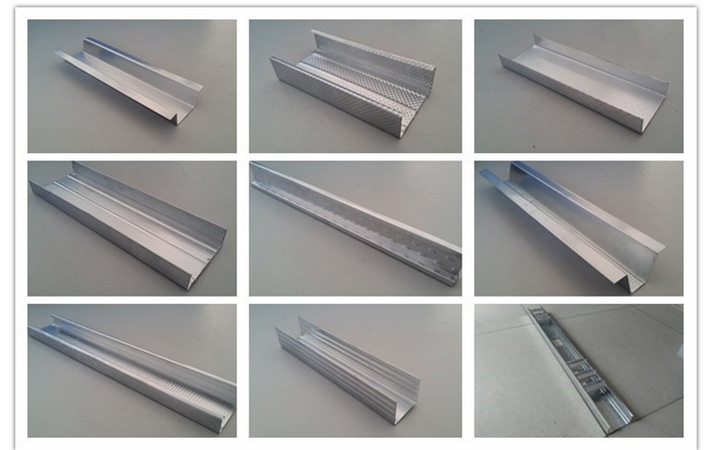

stud and track steel frame is widely used for the Gypsum board partition wall.It is portable, easy to install, and low cost.
*our huayang metal stud and track roll forming machine is with servo motor and hydraulic cutting system ,which speed can get 60m/min
*the machine technical details
Feeding material:galvanized sheet
Thickness of the plate:0.3-0.8mm
Diameter of the axle :Φ52mm
Rollers: 10rows
Roller material: 45# steel
Productivity: about 50-60 m/min
Total power: 5.5+4kw
Voltage:380V 60Hz 3phase
Weight: about 4T
Frame:square steel box
Side board thickness:25mm
Drive: by chain

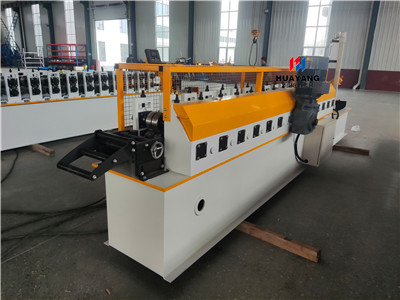

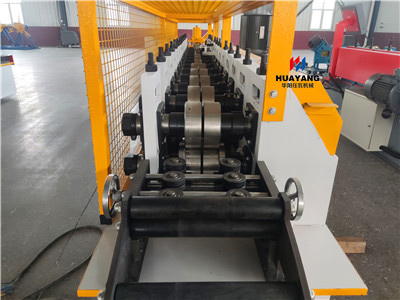

*The coil after uncoiling will go into the roll forming core through this device,this device can let the steel sheet more level and feeding accurately

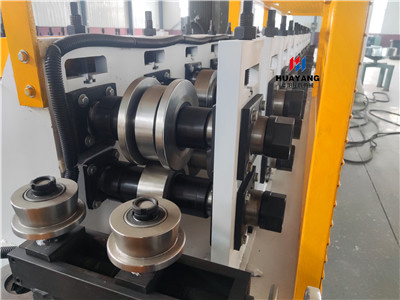

*In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard plating , heat treatment and galvanized treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.Material of rollers:45# steel, surface hard chromium plating.
Main power:5.5kw（cycloidal planetary gear speed reducer）

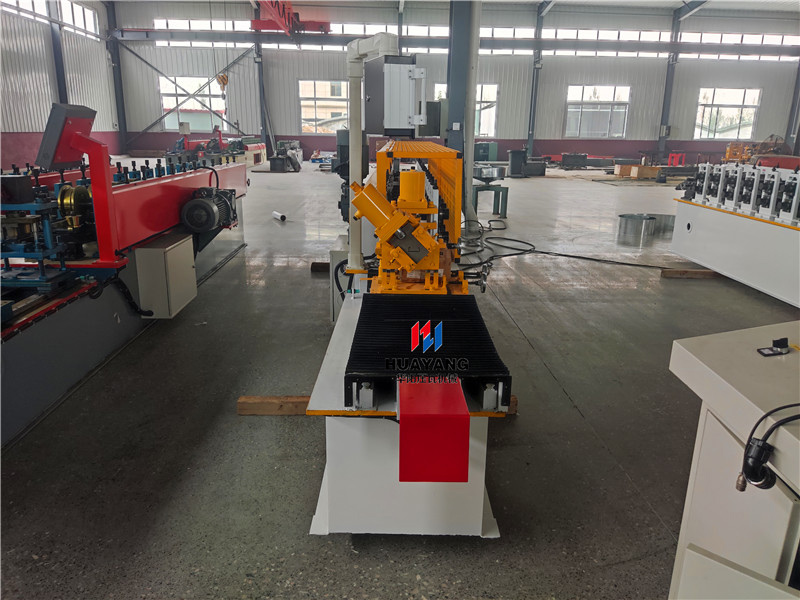

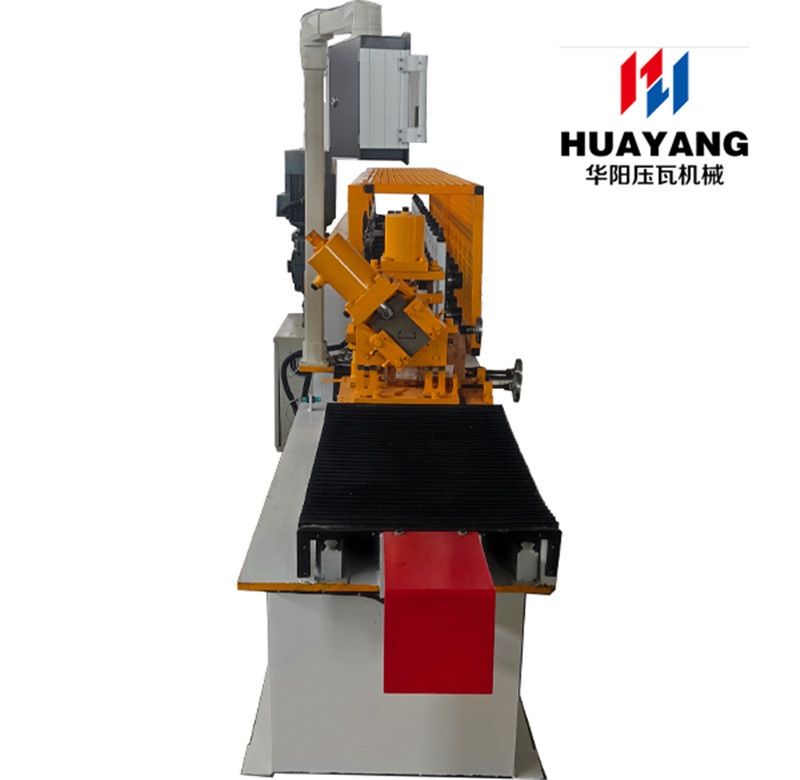

*the tracking cutting system adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment .Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine.

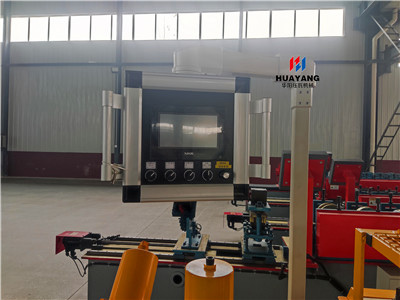

*It adopts Delta PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. The system is easy to operate and use.
Language:English and Chinese
welcome contact to know more at+8615830630347
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
