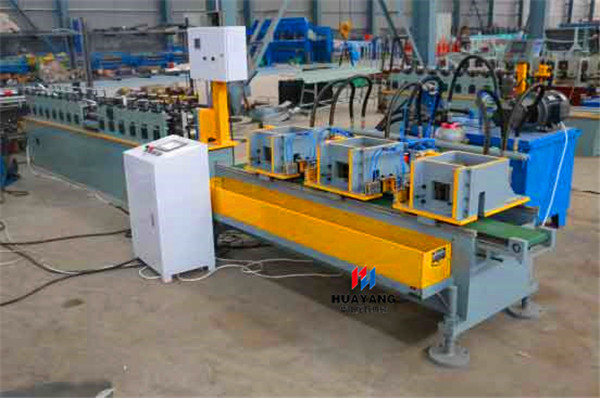

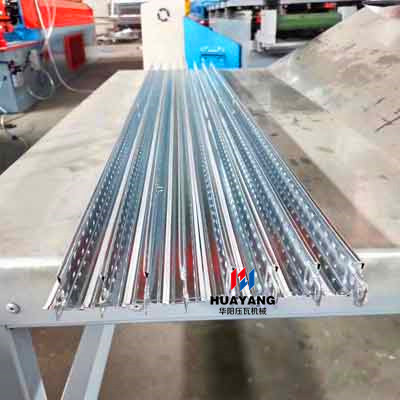

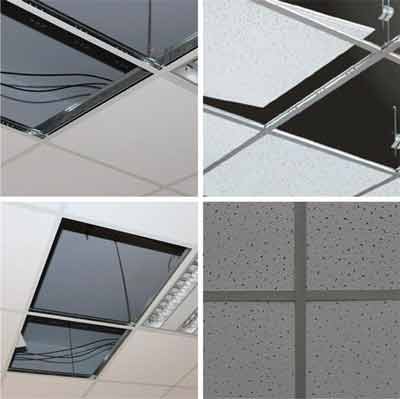

Ceiling T Grid roll forming machine is full automatic line to produce the main T frame and Cross T frame from botou huayang roll forming co.,ltd.The ceiling keel is a component that connects with the suspender and provides installation nodes for the surface cover panel, connecting the upper and lower parts in the ceiling.
Main T frame roll forming machine process:uncoiler-feeding-roll forming-straightening-cutting-automatic cutting-punching-receiving table .
NO. | Name | Unit | Qty |
1 | Manual decoiler | Set | 2 |
2 | Main machine for roll forming | Set | 1 |
3 | Control system | Set | 2 |
4 | Hydraulic system | Set | 1 |
5 | Cutting Mechanism | Set | 1 |
6 | Punching system | set | 1 |
7 | Out put table | set | 1 |

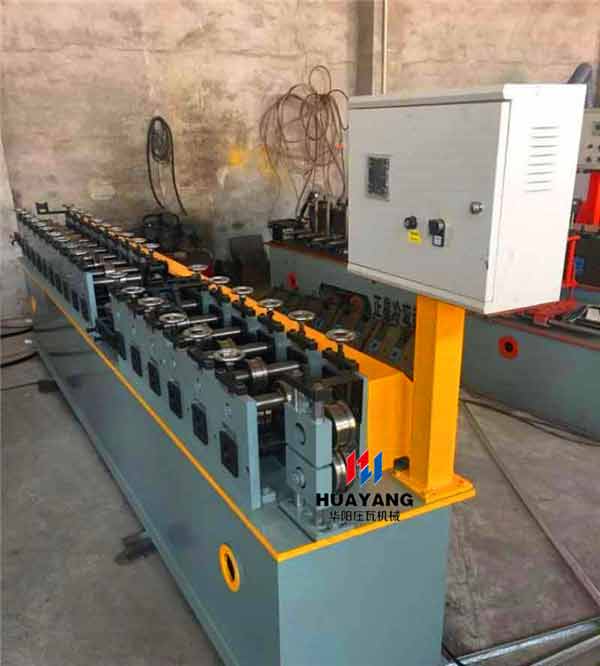

T grid frame roll forming machine technical details :
Feeding material: PPGI/ GI /aluminum
Thickness of the plate:0.25-0.3mm
Diameter of the axle :Φ40mm

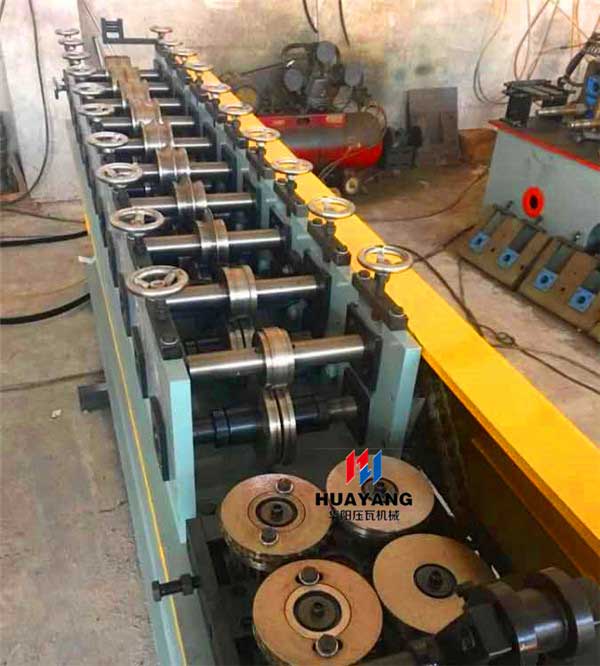

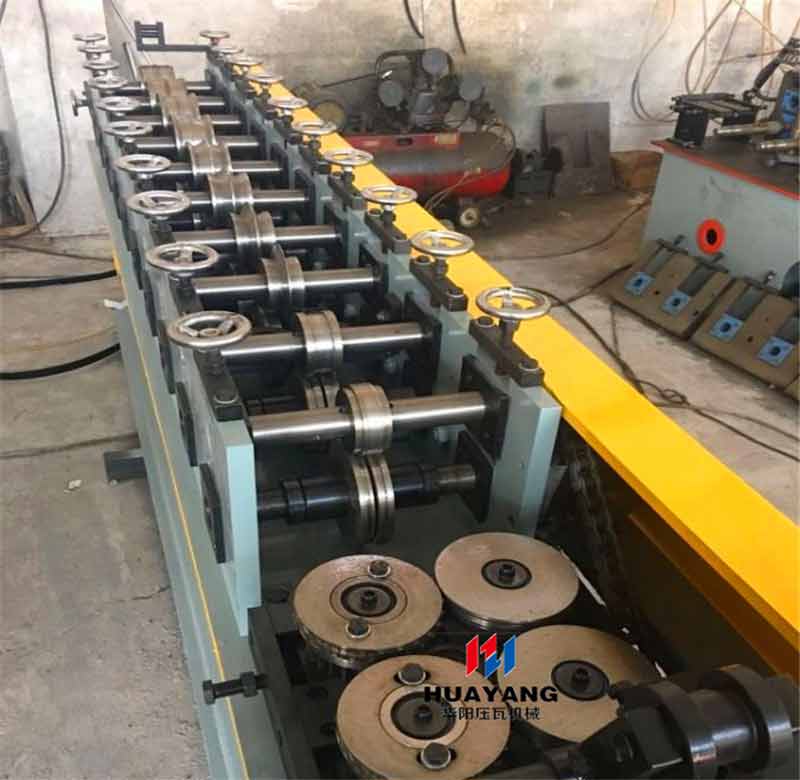

Rolling stages:16stages
Productivity: 25m/min
Total power: 26kw machine motor
Voltage:380V 50Hz 3phase or as requirement
Cutting blade: Cr12 with heat treatment

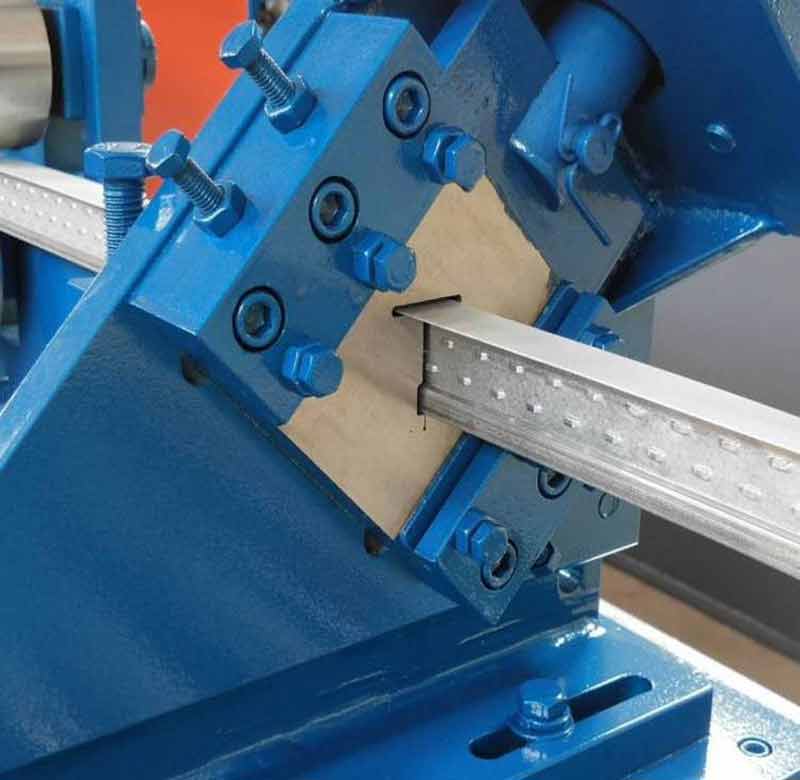

Cutting system: tracking cut

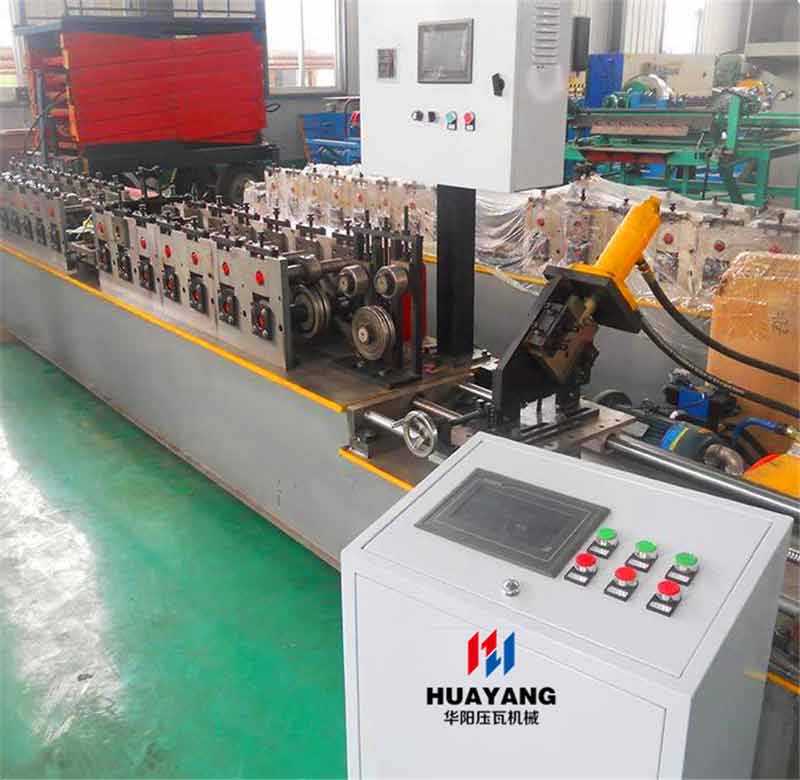

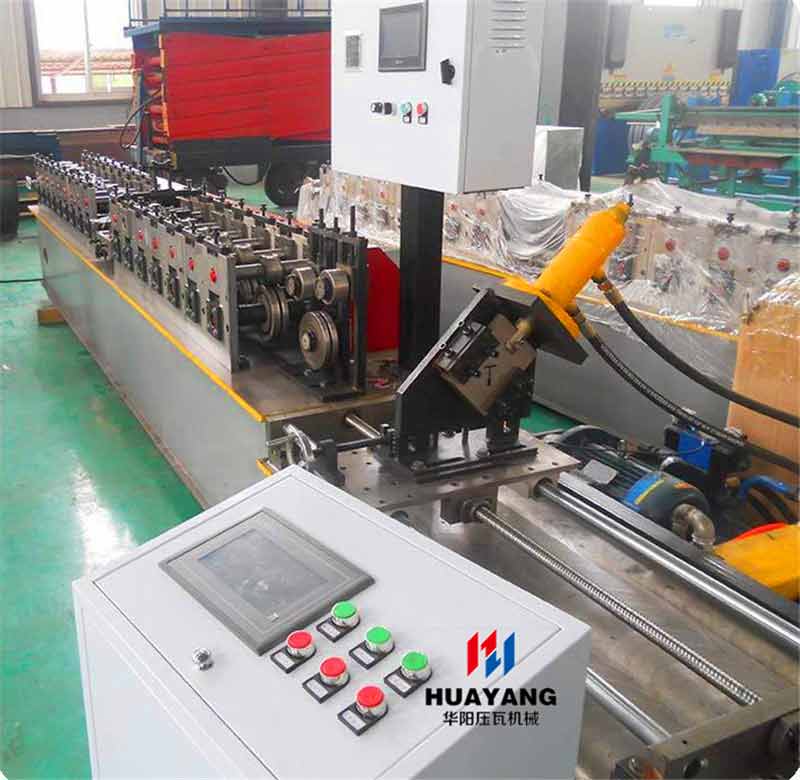

Control cabinet: PLC （2 set 1 for punching part and 1for forming and cutting part）

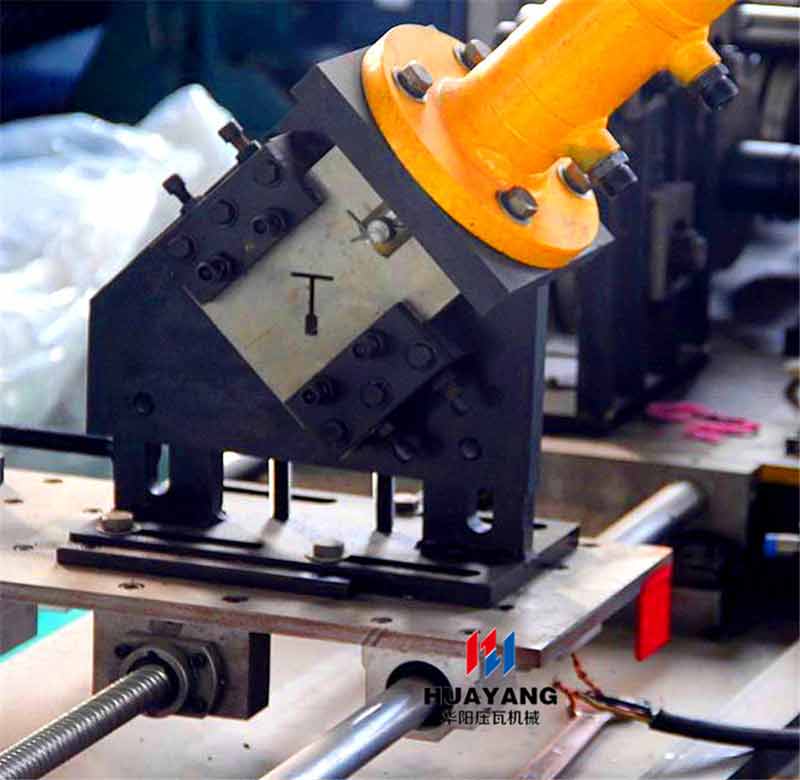

Track cut off part: 1 set cutting 1set Lead screw 1set servo motor

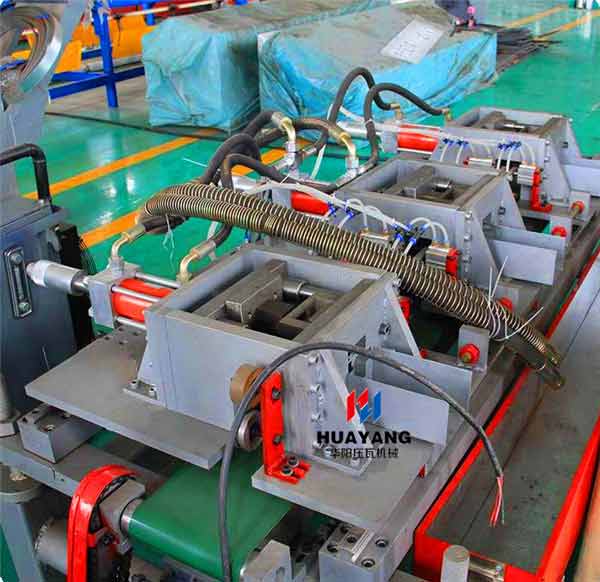

Automatic punching machine:2 set Lead screw 3set slideway 3set servo motor 1set receive part
Stamping die:5 set(2for heading 3for punching )
Final place for the machine：20*3m
Roller station :16stages
Roller mould material:Cr12MOV with heat treatment58-60
Roller diameter:40mm
roll forming speed:25m/min
Screw rod of automatic punch：2sets
Screw rod of automatic punch brand：TBI
Guide rail of automatic punch:3pcs
Guide rail of automatic punch brand:CSK
Servo motor:3sets (130ST-M15025 SERVO MOTOR 2SETS ,80ST-M02430 SERVO MOTOR1SET)
Receiving table：stainless steel
