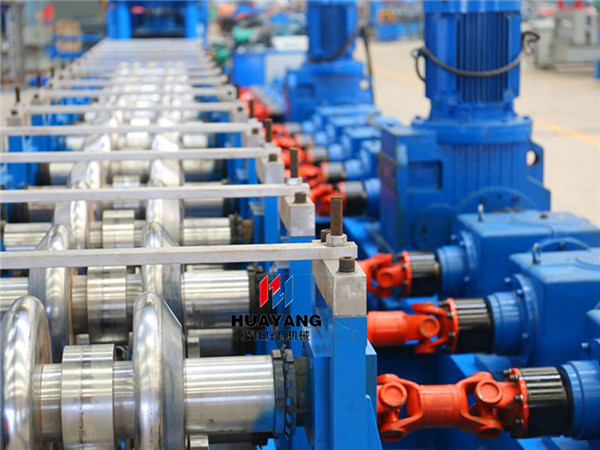

Highway guardrail roll forming machine is a full automatic production line with hydraulic decoiler,leveling part,punching part,roll forming part ,hydraulic cutting,plc control system and output table .the high guardrail which produced by the highway guardrail roll forming machine has the characteristics of light weight, high strength, large load-bearing and good seismic resistance,it is widely used on the highway road .

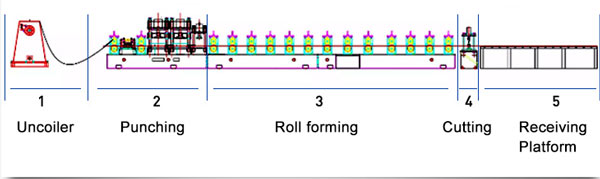

the highway guardrail roll forming machine process
hydraulic decoil-leveling and feeding device- roll forming part -cutting system-output table
the technical details of the highway guardrail roll forming machine
(just for your reference ,the technical is different of max thickness to 3mm and max thickness to 4mm)
1 | Main moter power | 18.5KW |
2 | Hydraulic station power | 11KW |
3 | Hydraulic oil pump | CB-E310 |
4 | Sprocket | P-50.8 |
5 | Roller station | 16 |
6 | Yield strength | 32MPa |
7 | Diameter of principal axis | 95MM |
8 | Material of roller | 45#steel hard chrome plating |
10 | Processing speed | 8m/min |
11 | Thickness | 2-3mm |
12 | Installation dimension about(L*W*H) | 10.5*1.4*1.2M |
13 | Material of blade | Cr12 |
14 | Total weight | 10T |
15 | Equipment parts includes:5T decoiler, roll forming machine,hydraulic cutter,hydraulic station,electric controlling system,counter. |

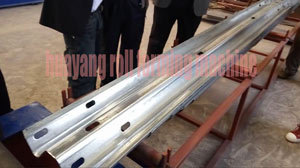

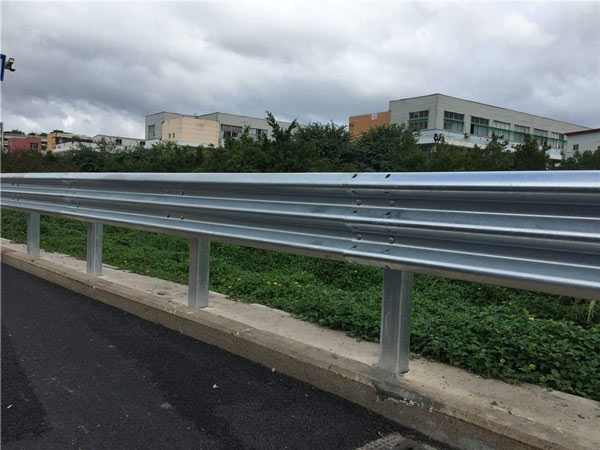

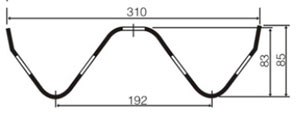

the final product highway guardraol .
The use of highway guardrail roll forming machine mostly improves the management level of expressway, reduces the occurrence of traffic accidents, thus the occurrence of joint and several litigation cases, ensures the safety of Expressway to a great extent, and realizes the high-speed management level of expressway.
our customers
the other type cold roll forming machine we can do
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
