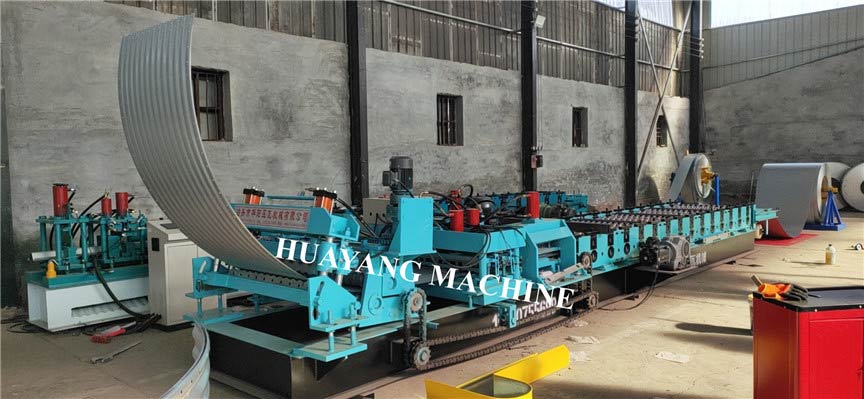

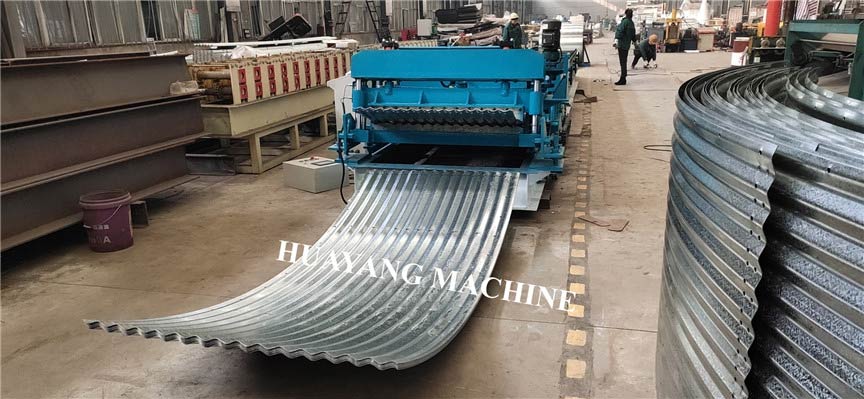

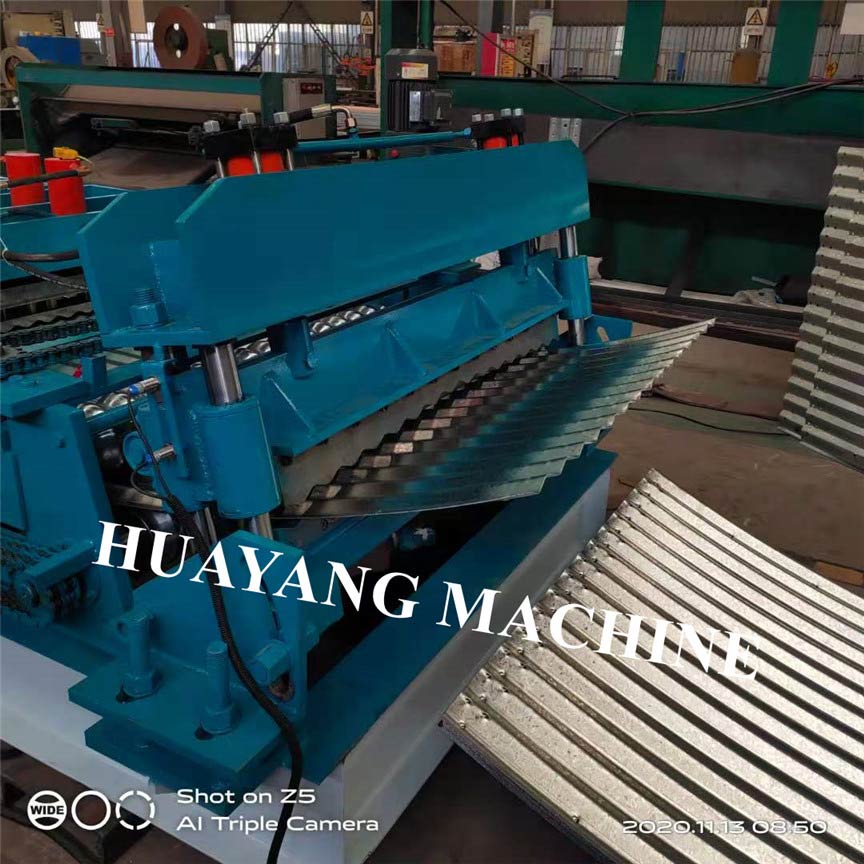

Grain silo roll forming machine is complete automatic line include the decoiler ,feeding device ,leveling part ,roll forming part ,punching part ,curving part and cutting part .

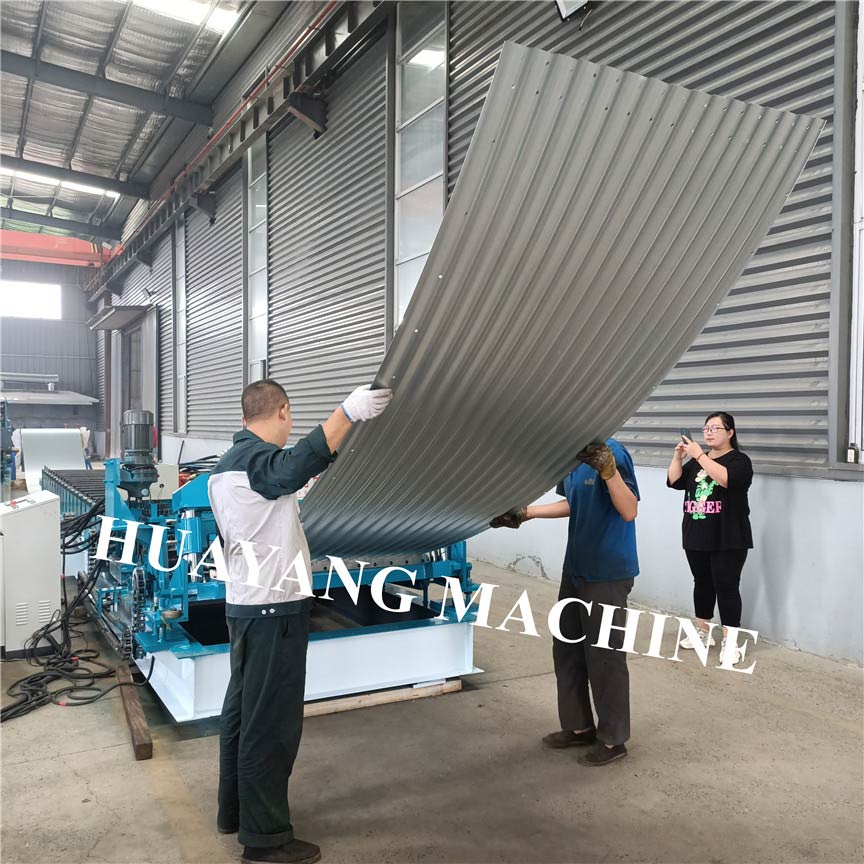

which can get the corrugated curving sheet automatically .Geting one piece corruagated curving sheet need about 2min. the final product is widely used for the galvanized fish tank and the grain silos.botou huayang roll forming machine co.,ltd is the first factory who do the grain silo roll forming machine ,we also has other device for thr grain silo ,like silo upright leg roll forming machine ,supporting L corner roll forming machine ,Retainer circle roll forming ,leveling and cutting roll forming machine ,and so on.

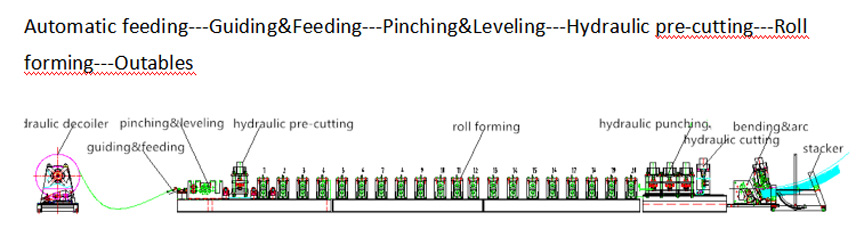

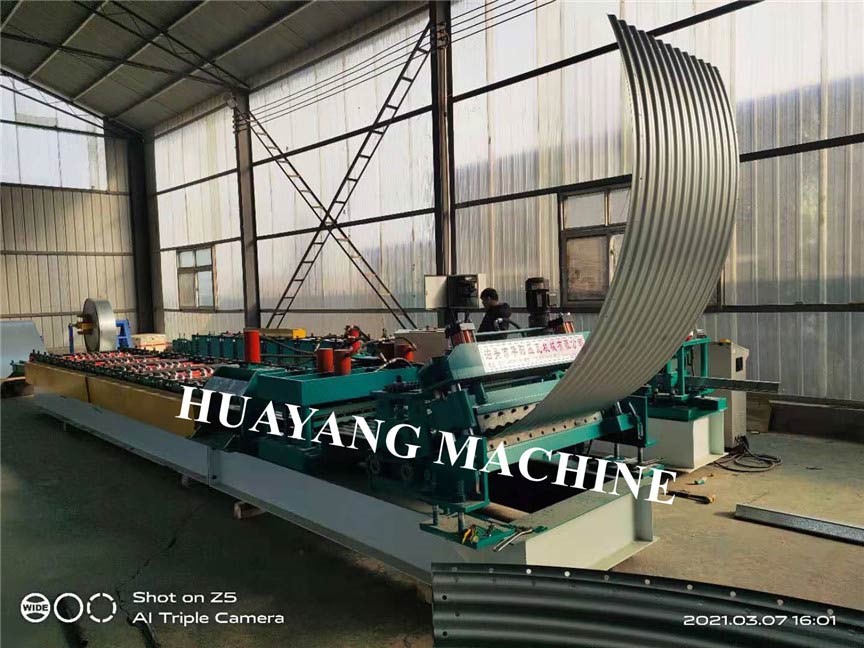

the process of the grain silo roll forming machine
the grain silo roll forming machine details
Feeding material: GALVANIZED SHEET
Thickness of the plate:1.2-3mm
Feeding width:1000mm/1220mm
Effective width:910mm/1000mm
Diameter of the axle :Φ85mm
Rolling stages:18 stages
Productivity: 0-2m/min
Total power: 11kw machine motor + 7.5kw pump station motor
Voltage:380V 50Hz 3phase or as requirement
Base frame:350H steel
Side board thickness:20mm
Cutting blade: Cr12 with heat treatment
Cutting system: Hydraulic cutting system after forming
Control cabinet: PLC and frequency changer in it

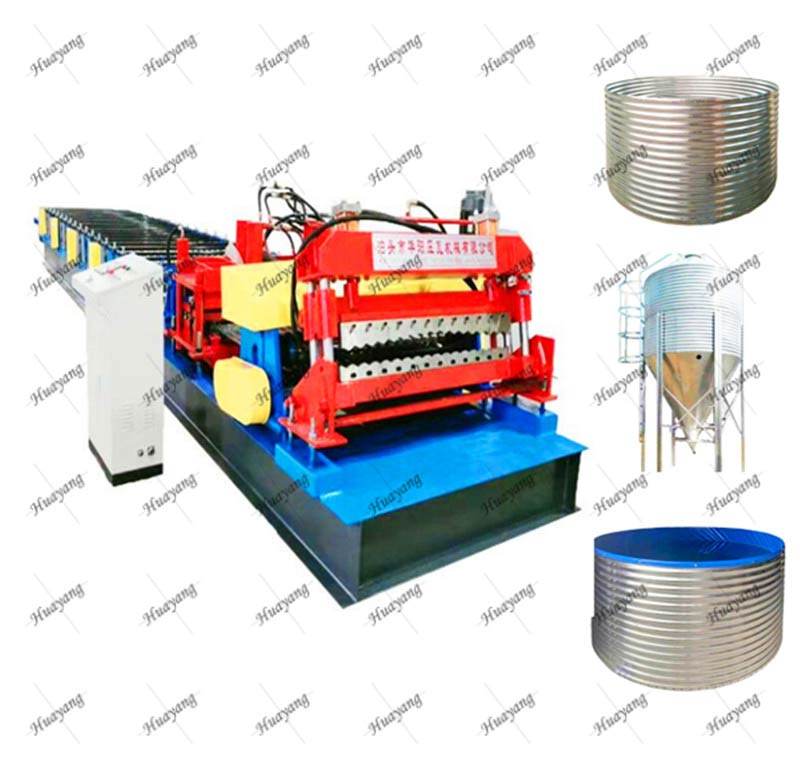

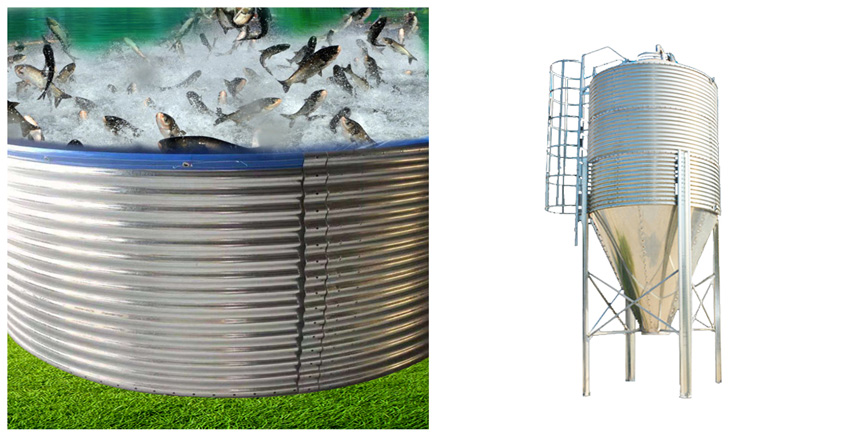

the application of the grain silo roll forming machine
the certification of botou huayang roll forming machine co.,ltd

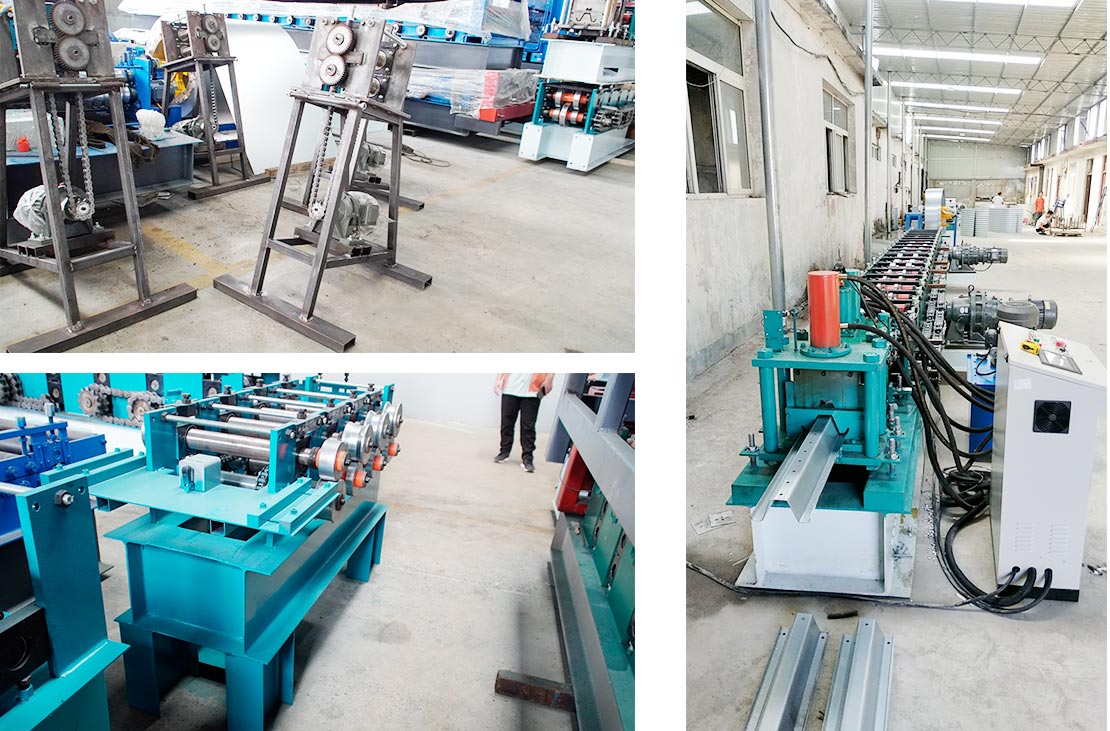

Supporting Machine

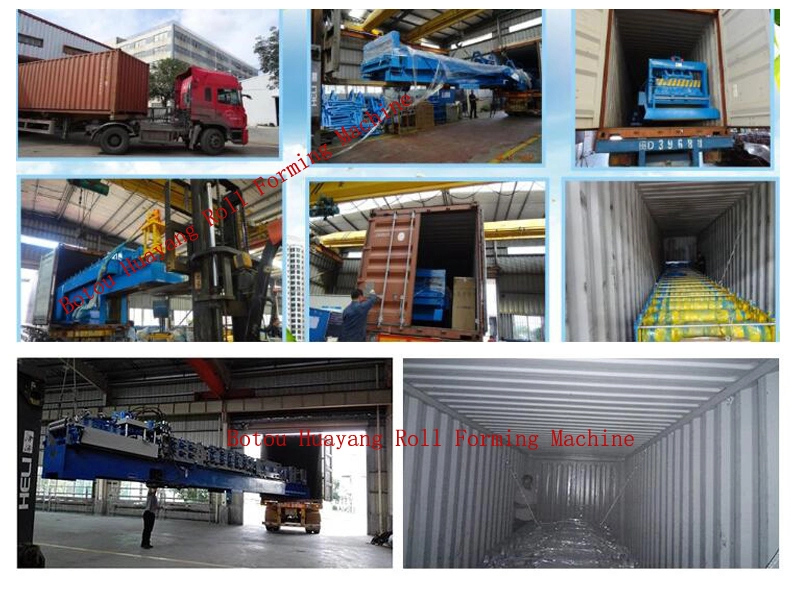

Packaging & Shipping
Main machine is nude, computer control box is packed with wooden box frame for c z purlin roofing sheet roll forming machine.
From Tianjin Xingang port
Customer from all over the world
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
