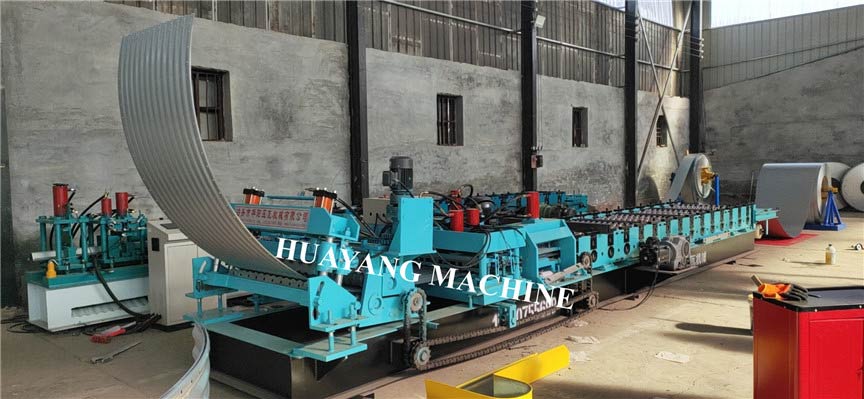

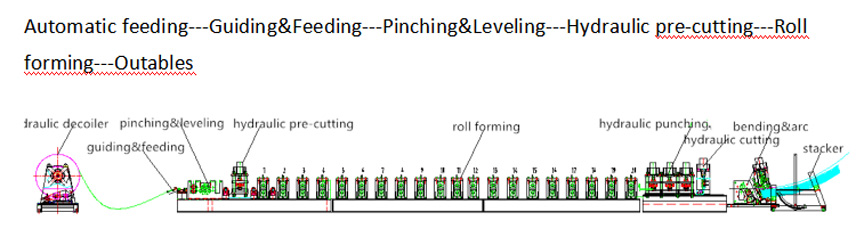

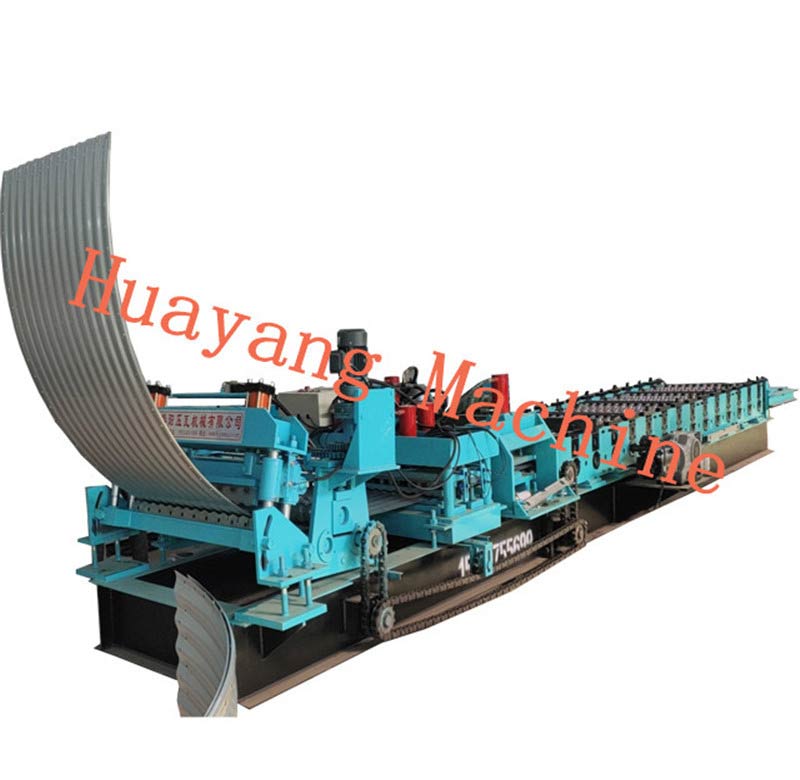

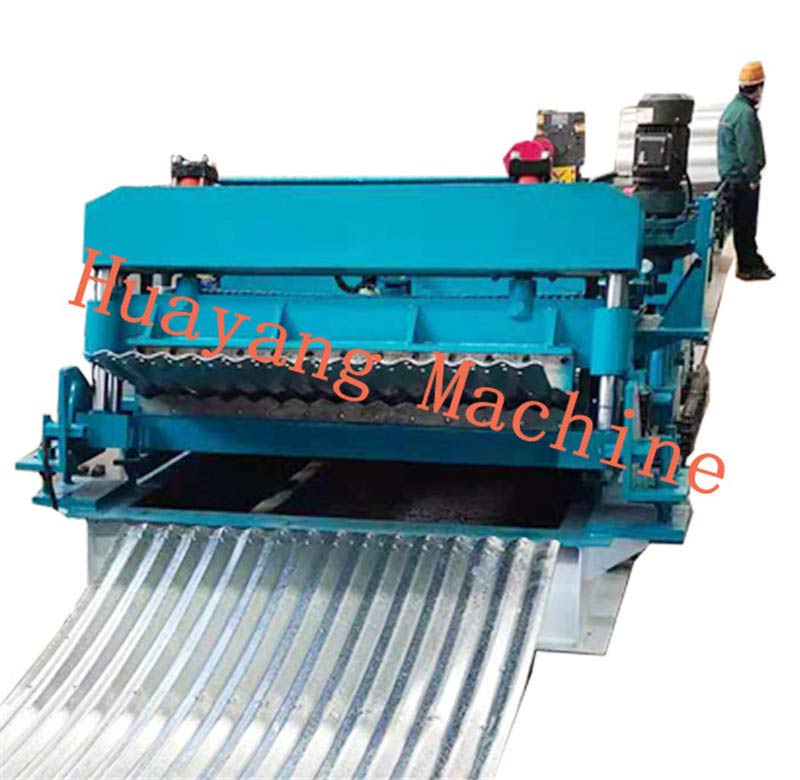

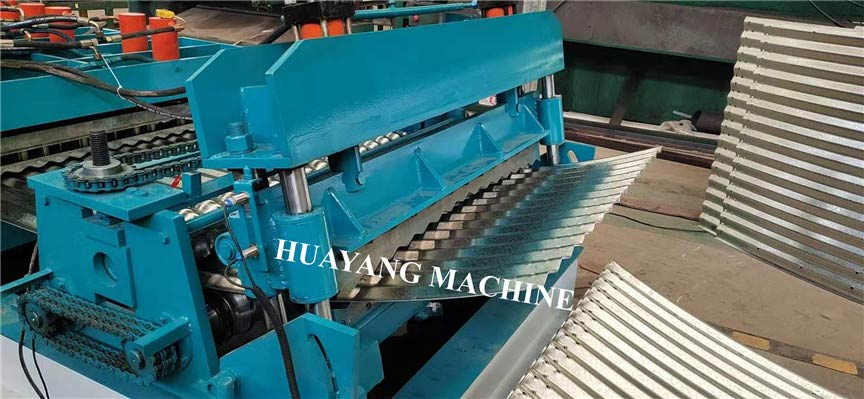

2mm silo sidewall panel roll forming machine is full automatic line include the roll forming ,punching ,curving and cutting device.the machine is east to operate,and can get the silo side wall sheet directly ,just need joint the sheets by screw,save labour cost ,improved work efficiency.we can adjust the curving radian by the PLC.
2mm silo sidewall roll forming machine technical details is designed and supplied accurately from our engineer.there is about 0 error for the holes so that the sheets can joint perfect.our company named botou huayang roll fomring machine co.,ltd is the first silo sheet roll forming machine manufature in north china market ,17years roll forming machine experience make our machine professional .
Feeding material: GALVANIZED SHEET
Thickness of the plate:1-2mm
Feeding width:1000mm
Effective width:910mm
Diameter of the axle :Φ85mm
Rolling stages:18 stages
Productivity: 0-2m/min
Total power: 15kw machine motor + 7.5kw pump station motor
Voltage:380V 50Hz 3phase or as requirement
Base frame:350H steel
Side board thickness:20mm
Cutting blade: Cr12 with heat treatment
Cutting system: Hydraulic cutting system after forming
Control cabinet: PLC and frequency changer in it
the other machines you may need for the silo ,lile leveling and cutting roll forming machine ,grain silo leg upright roll forming machine ,l corner steel support roll forming machine ,and Ladder retainer roll forming machine .

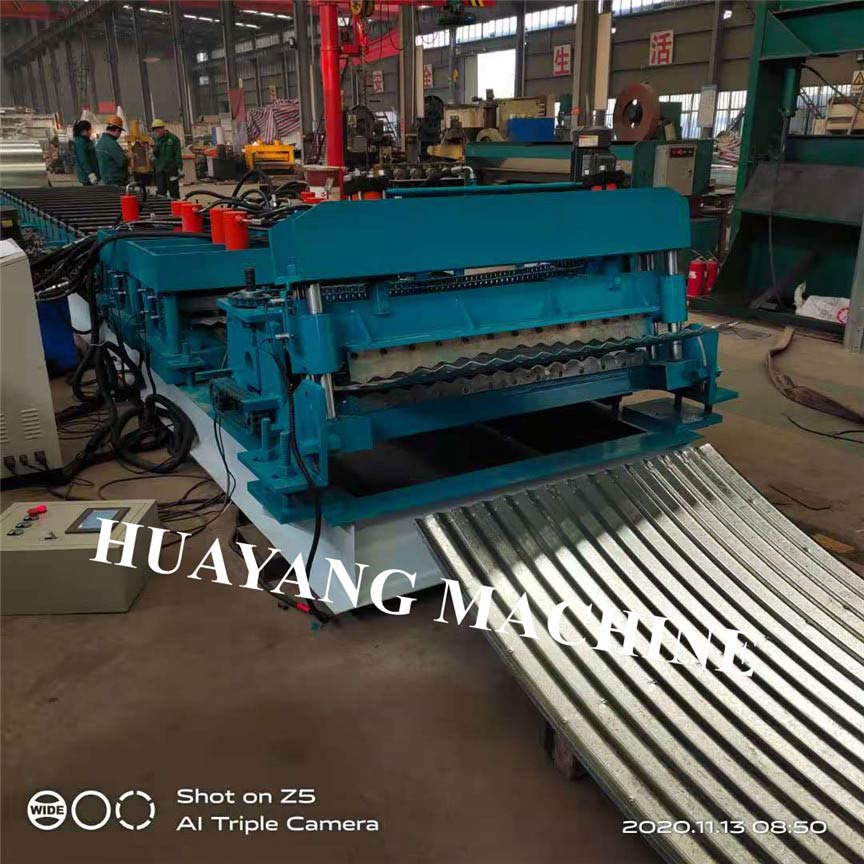

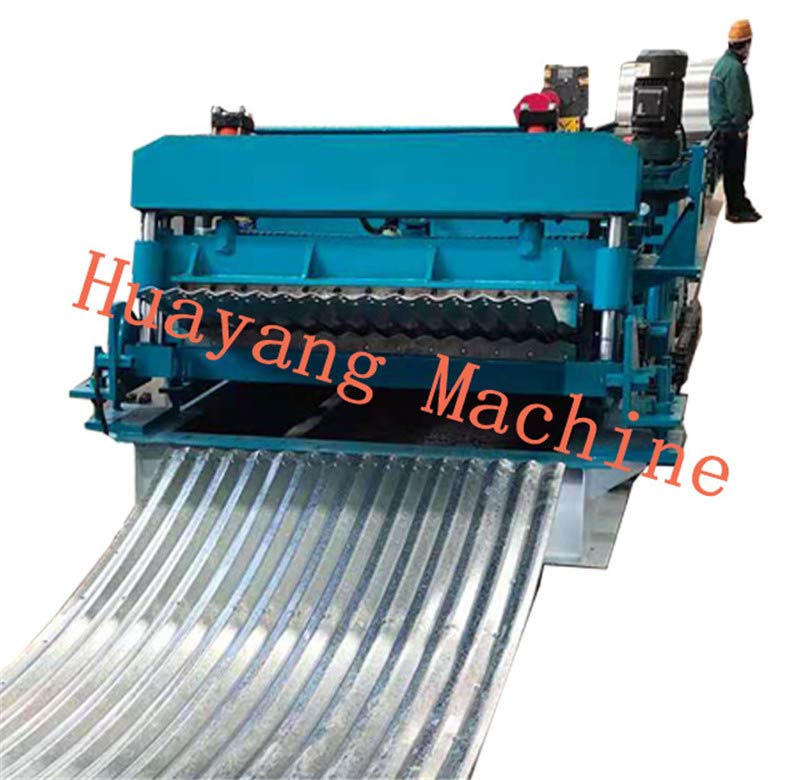

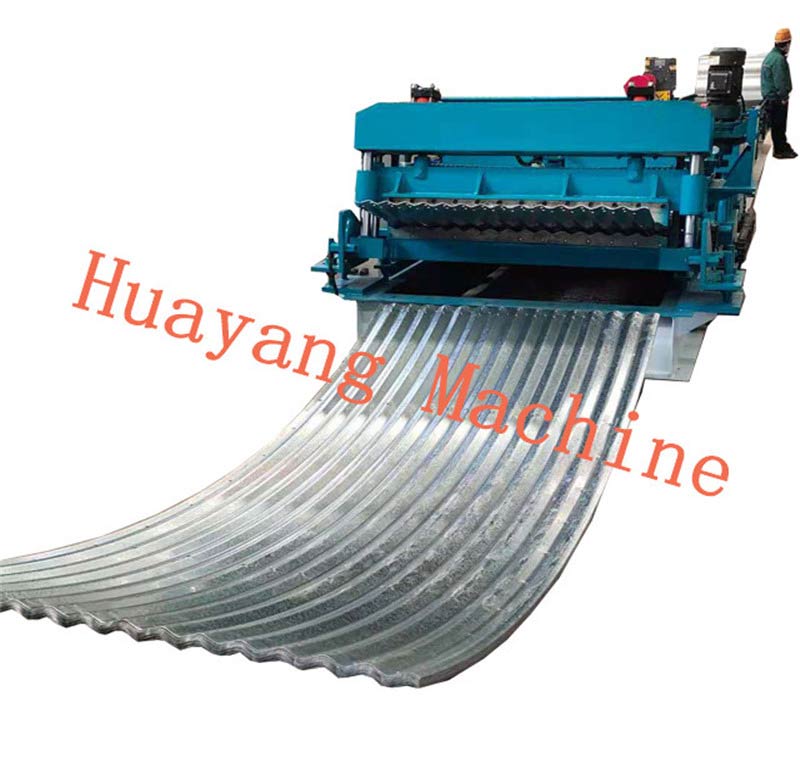

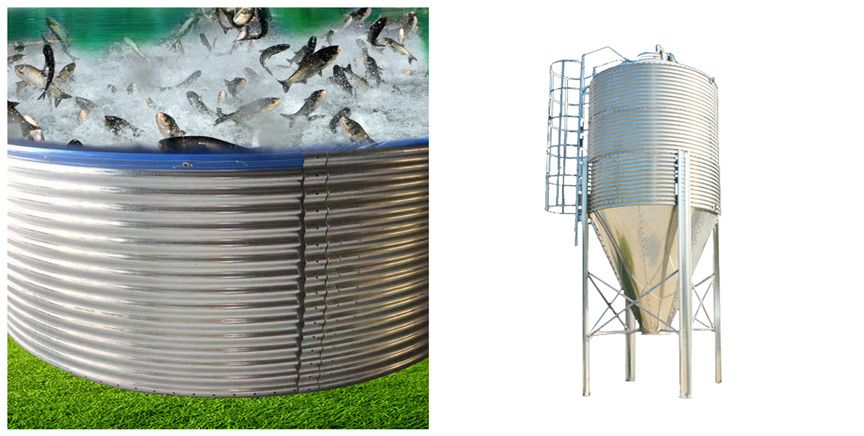

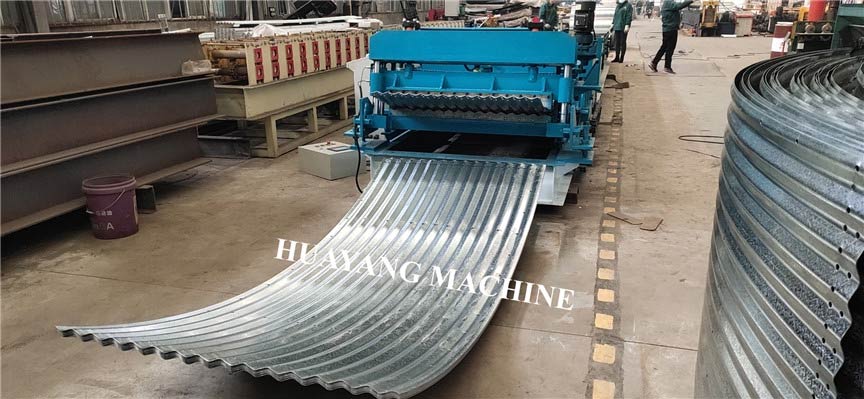

the final sheet of silo sidewall sheet roll forming machine
our 2mm silo sidewall roll forming machine roll forming machine has exported to many countries ,if have any interests ,please feel free to contact me !
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
Contact ways to buy steel former c purlin metal sheet equipment
Any quesion, please contact me any time, I am waiting for you 24 hours/day.
