2-3mm silo corrugated panel making machine Process flow -Uncoiling → Laminating → Guided feeding → Roll forming → Punching hole → Punch tail connection hole. Material tower leg mounting hole → Online arc bending → Fixed length cutting → Finished product discharge

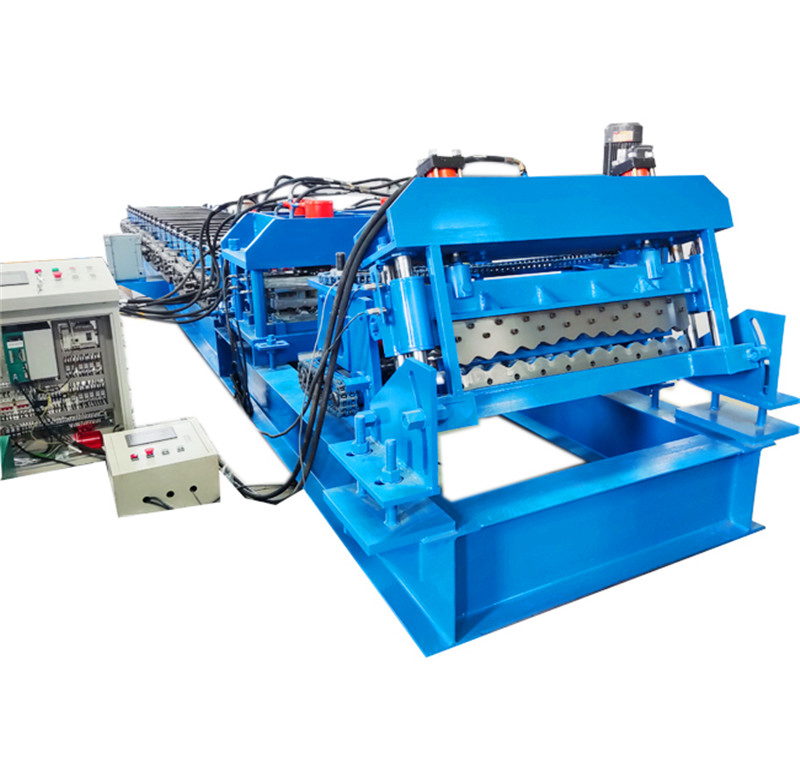

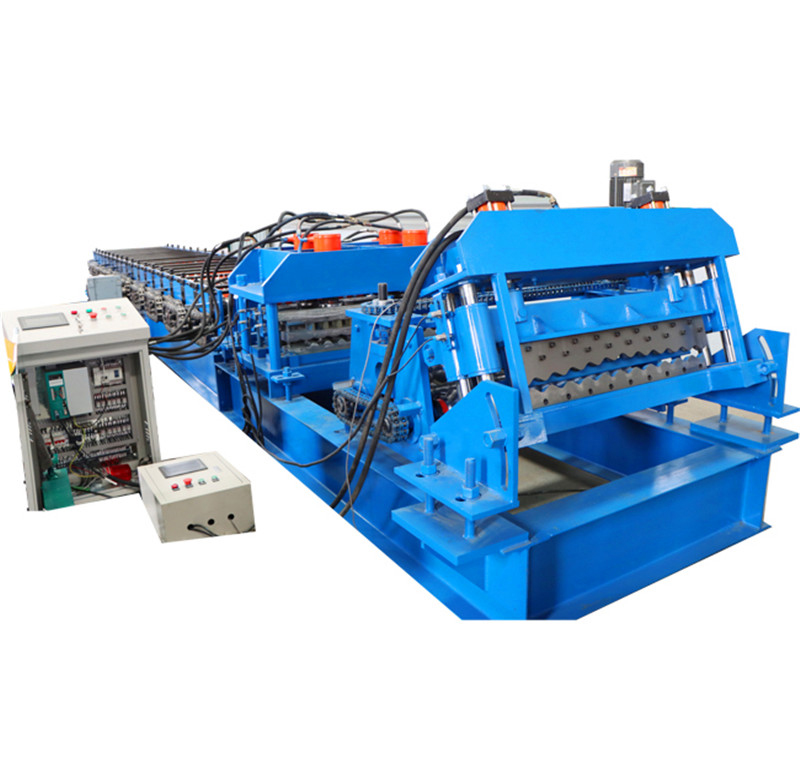

Components of line of 2-3mm silo corrugated panel making machine
NO. | Name | Unit | Qty |
1 | Manual decoiler | Set | 1 |
2 | Main machine for roll forming | Set | 1 |
3 | Control system | Set | 1 |
4 | Hydraulic system | Set | 1 |
5 | Cutting Mechanism | Set | 1 |
6 | Out put table | set | 1 |
7 | Roller station（18 unit） | Set | 2 |
A.silo corrugated panel making machine Punching hole mechanism: the cylinder drives the punching die to achieve the punching effect. Punching die material: Cr12. Heat treatment hardness: HRC58～60.
Punching mechanism for connecting holes at both ends: hydraulic punching of the connecting holes at the two sets of ends must be able to ensure the requirements of the aperture and hole distance on the drawing. The cut edges and punched holes must be vertical, neat and smooth, and the burrs and flanging must not be high At 0.05mm. Concave and convex molds are made of high-quality alloy steel Cr4W2MoV, quenched to a certain degree of hardness and toughness.

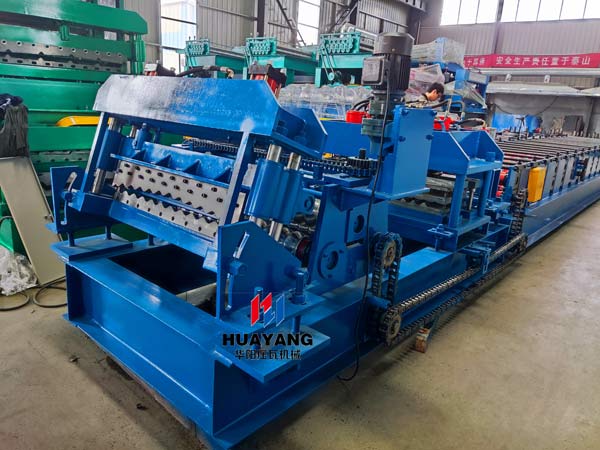

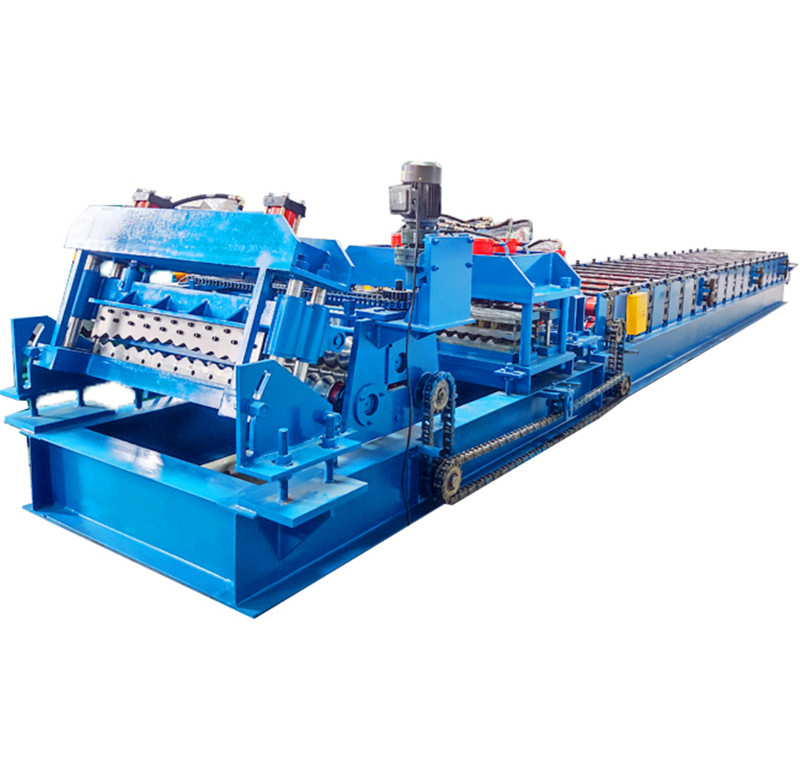

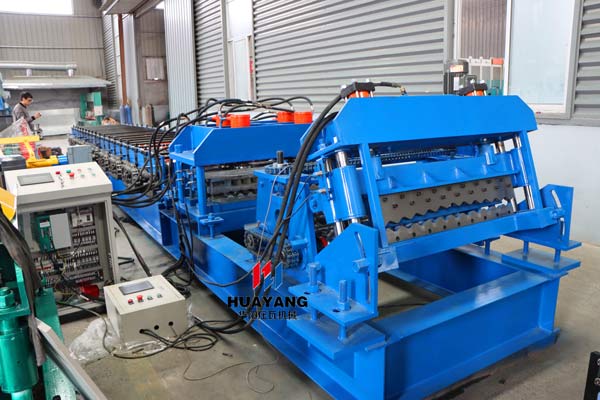

B.silo corrugated panel making machine rolling mills
a.The cold-bending forming machine is the main working part of the unit. The rolls and other forming dies are assembled on this machine to continuously roll and deform the strip to make it into a profile with a cross-sectional shape and size that meets the requirements of the drawing.
b. After forming, the surface of the parts is smooth and clean, and the arc transition is consistent and beautiful. After the whole board is rolled out, the diagonal error is less than 2mm. All holes are required to be punched out on the assembly line. These holes include: upper and lower connecting holes, connecting holes at both ends, and all hole distances meet the requirements of the drawing.
c. The machine body is the main body of the rolling mill. It is welded by the national standard 350 H-beam. It is firm and beautiful. The base is installed with adjusting bolts for adjusting the horizontal position of the machine. The base is installed with lifting holes for easy installation and transportation.
d.The wallboard thickness is 20mm, the slider is a casting, and the upper and lower shafts are fixed on the slider through bearings.
e.Sprocket + chain linkage gear transmission
C. 2-3mm silo corrugated panel making machine guide feeding ，the raw material can feeding more easy and accurate ,the guide with rollers can avoid scratches on raw materials .The manual cutter can cut the raw material any time easily ,so that you can change other colors or sizes raw material easily.

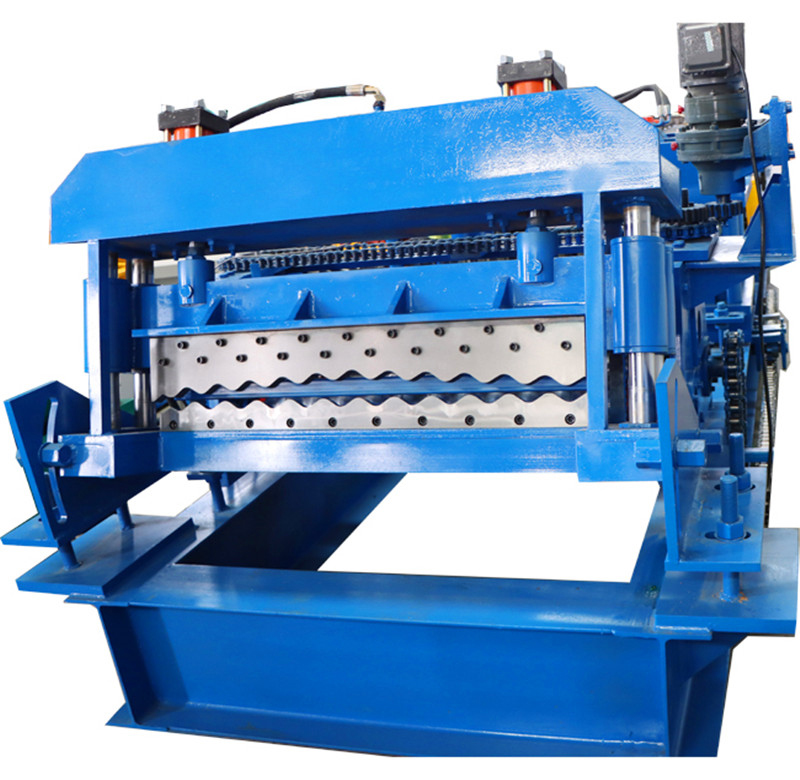

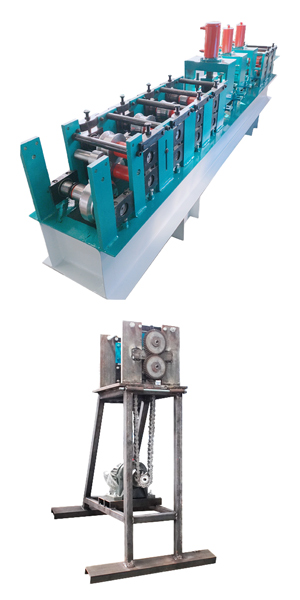

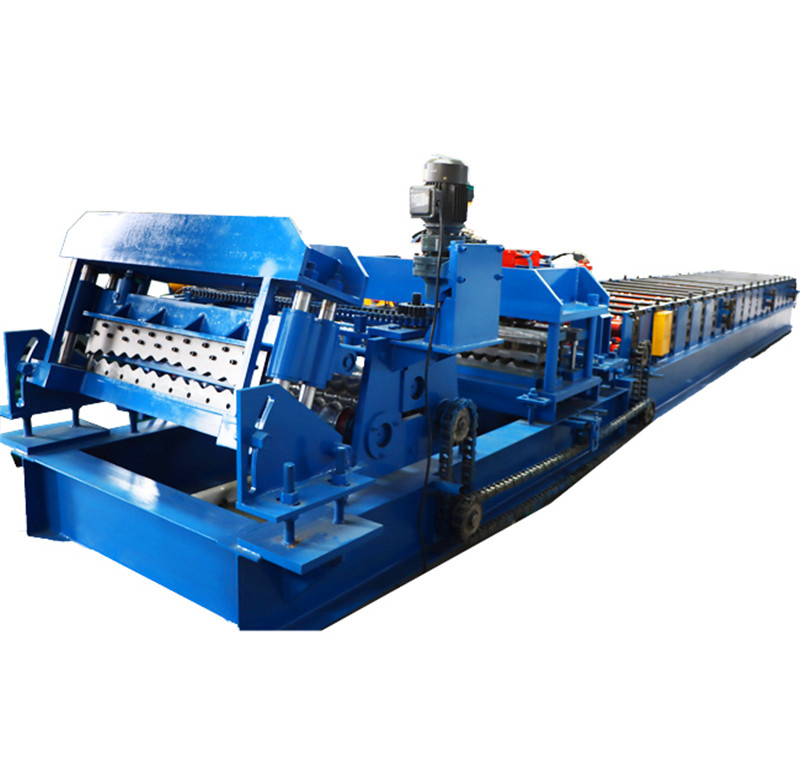

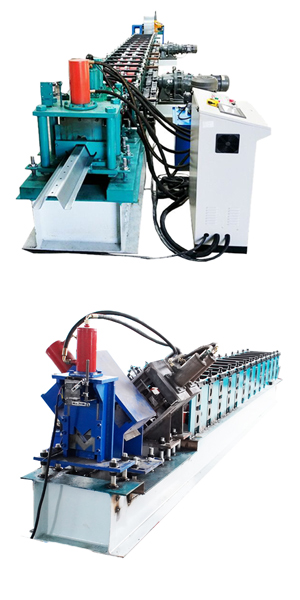

the related machines for the silo ,like the silo upright ,silo upright support L corner and so on .

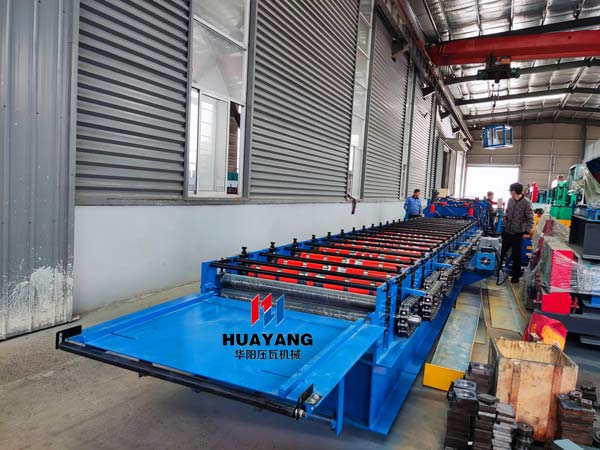

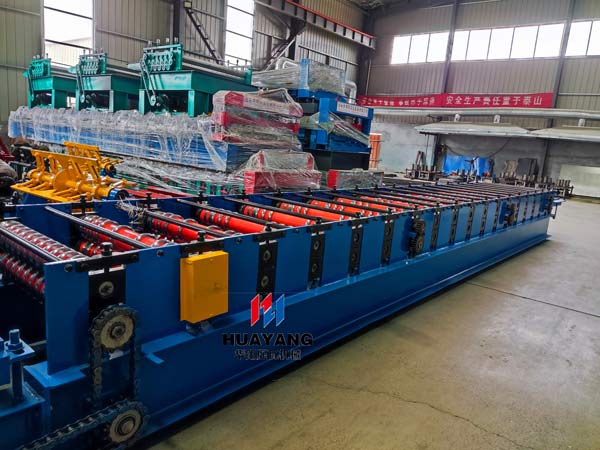

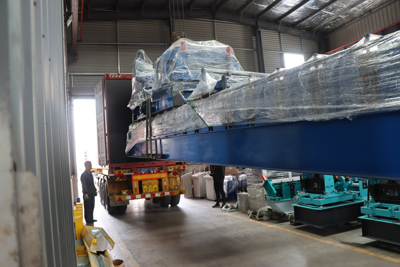

the delivery photos
