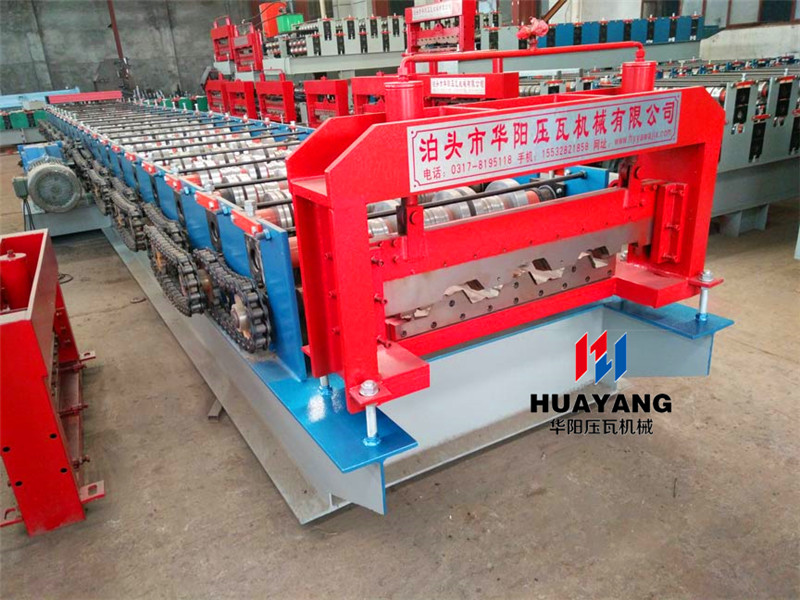

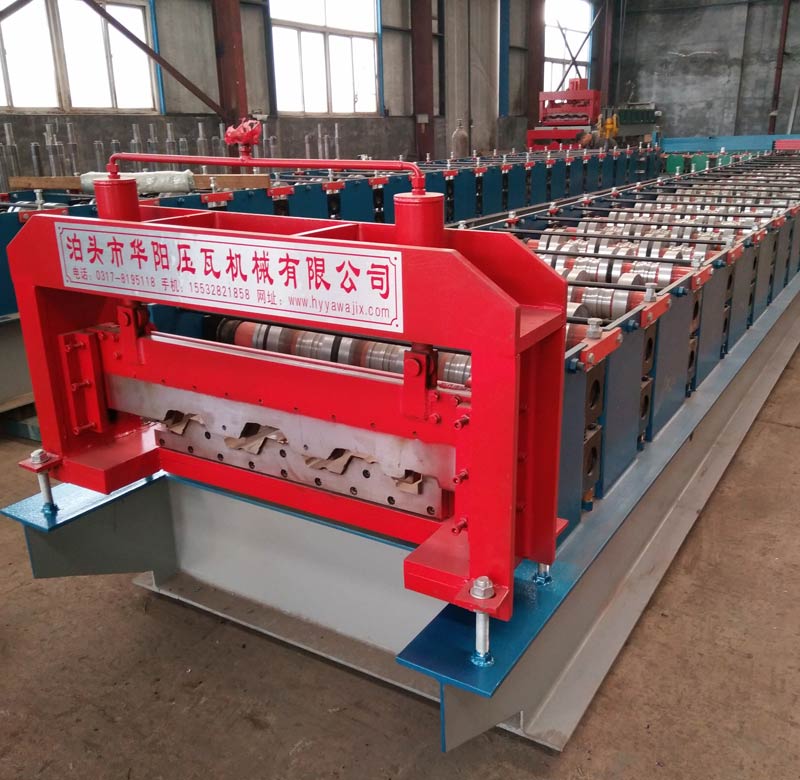

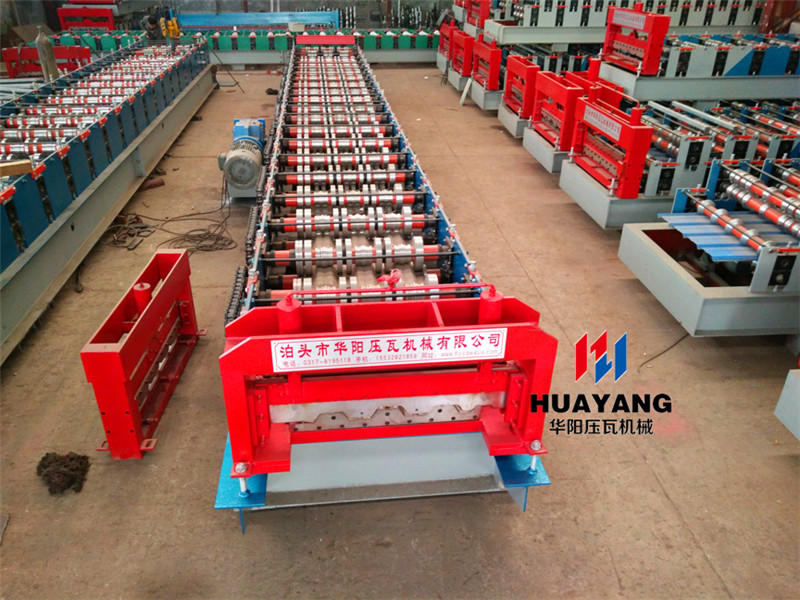

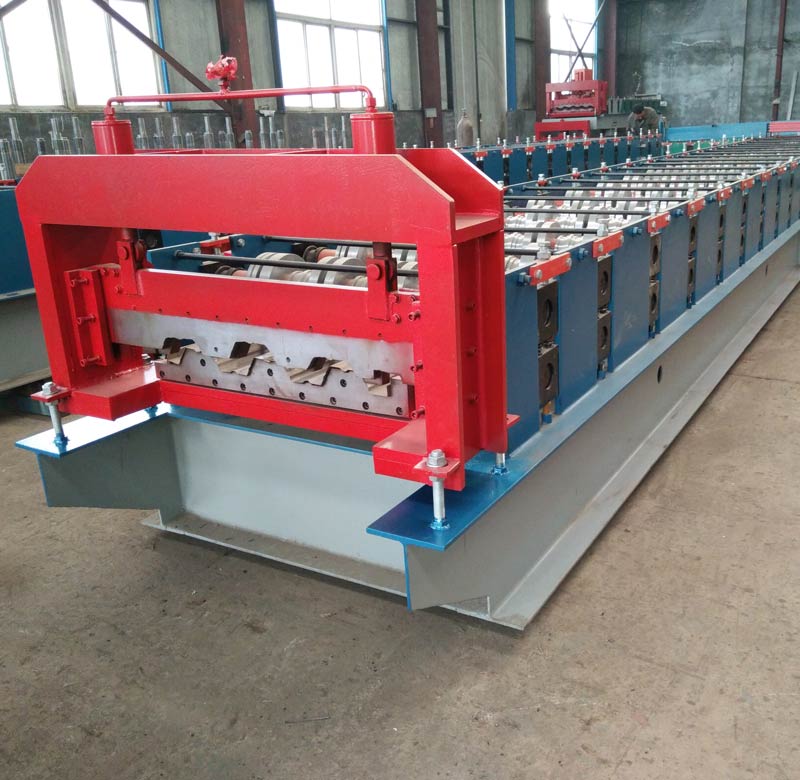

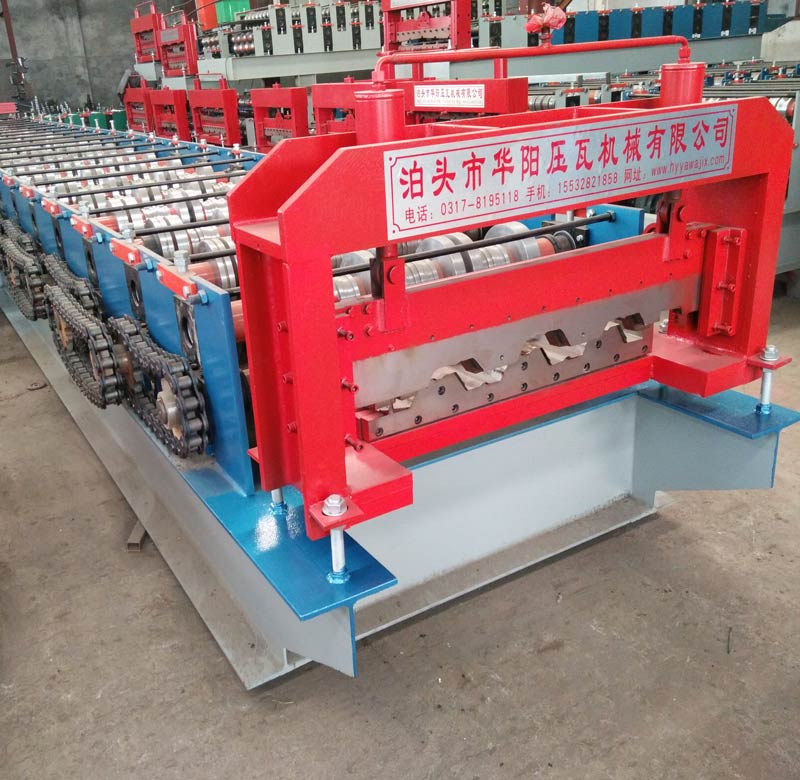

huayang 1025 metal decking floor making machine is to produce open floor deck ,which is supporting the floor concrete ,suit the second floor steel structure buidling .

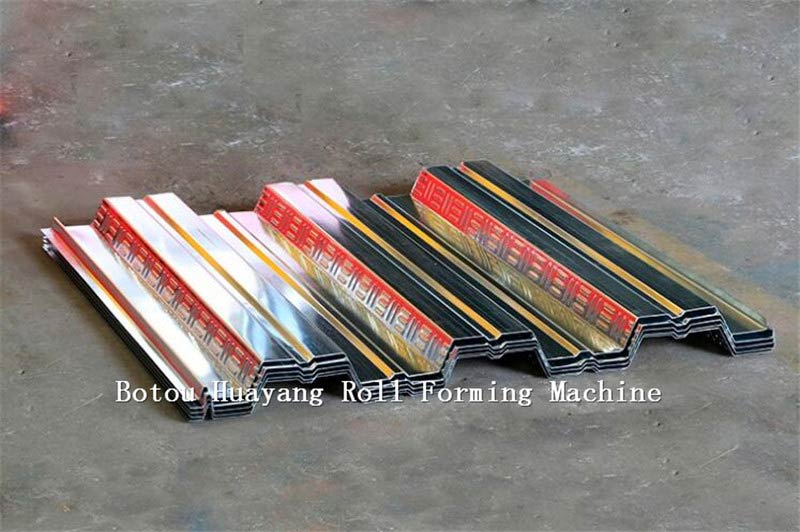

the 1025 type metal floor decking thickness is within 0.8-1.2mm ,the effective width is 1025mm ,it can meet the requirements of rapid construction of the main steel structure, it can provide a firm operation platform in a short time, and can adopt the flow construction of laying profiled steel plates on multiple floors and pouring concrete slabs in layers.
huayang 1025 metal decking floor making machine is an automatic line which easily controlled by the PLC control system .normally one machine only need one Skilled worker to charge the producing .
huayang 1025 metal decking floor making machine details :we are full of confidence in the quality and accuracy of floor bearing plate equipment. Following the production quality standard of Taiwan cold bending machine, we have established our own testing laboratory. The testing equipment includes Rockwell hardness tester, tachometer, roundness tester, coating thickness tester and other multi-functional testing machines. Our main technology comes from Taiwan, with cost-effective equipment and production technology. In the production process of the whole machine, the same group of technicians complete the design and drawing, scheme customization and after-sales of equipment. To ensure that the performance, process, accuracy and quality of the equipment are completely consistent with your needs. botou huayang roll fomring machinery company provide 7 days × 24-hour technical support and engineer service will escort the efficient production of your cold bending equipment.
Configurations | Manual Uncoiler , Guiding Platform, Main Machine Of Roll Forming,Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
Control System | PLC |
Main Frame | 350mm H-Beam |
Size | 12m*1.5m*1.2m |
Weight | About 12 ton |
Main Power | 15kw*2(Double motor)+5.5kw |
Power Supply | 380V, 3-Phase,50Hz |
Forming Speed | 8-12m/min |

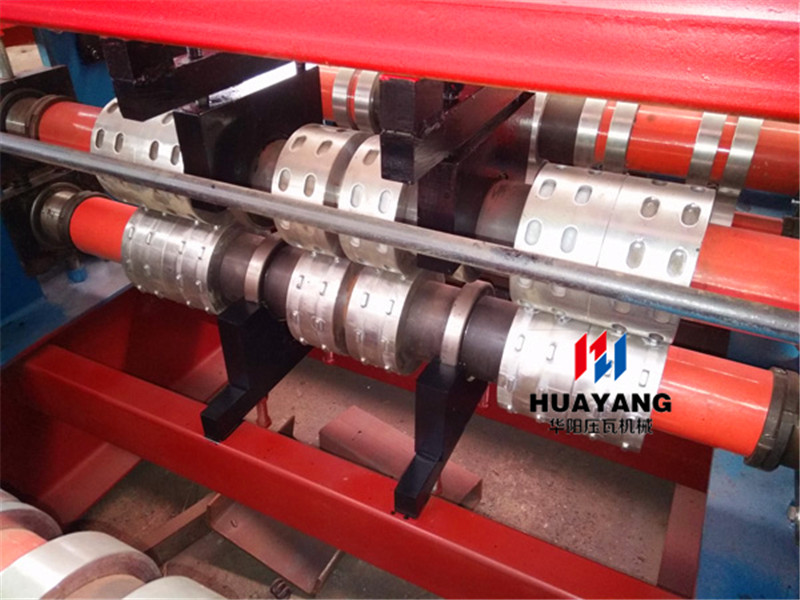

Roll Station | 26 rollers |
Roller Diameter | 90mm |
Feeding Thickness | 0.7-1.2mm |
Effective Width | 915mm |
Feeding Width | 1220mm |
Backboard Thickness | 18mm |
Cutter Standard | GCr12 |
Roller standard | 45# Plating Cr |
Chain | 2 inch |
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
Contact ways to buy steel former c purlin metal sheet equipment
Any quesion, please contact me any time, I am waiting for you 24 hours/day.
