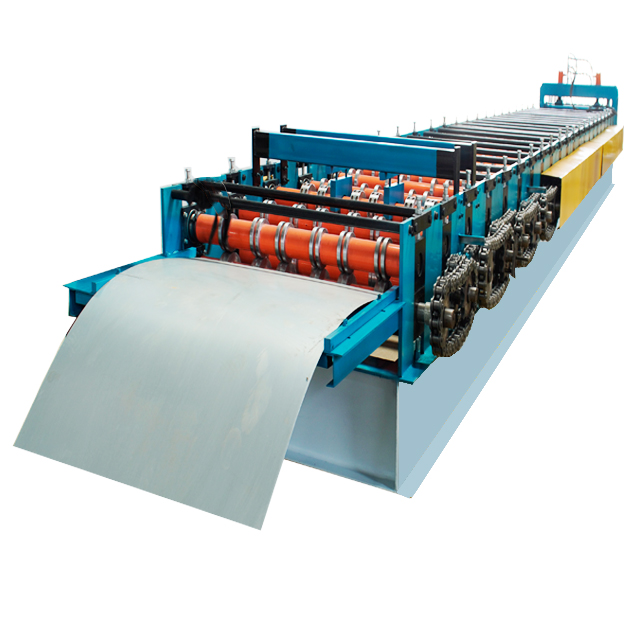

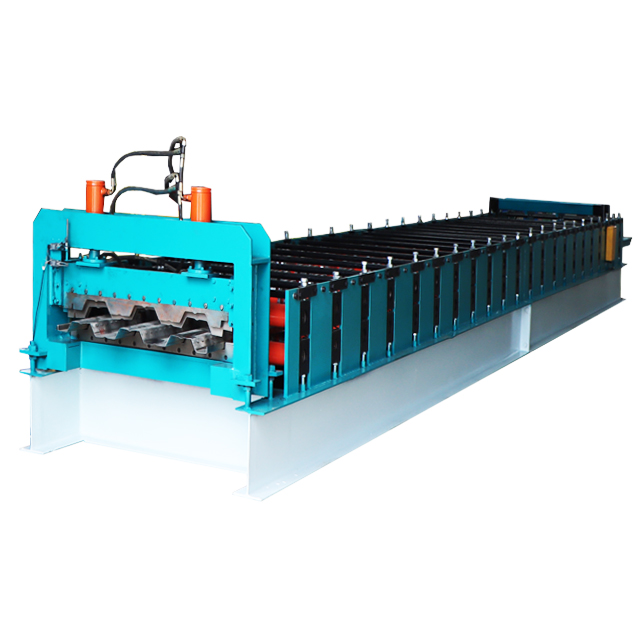

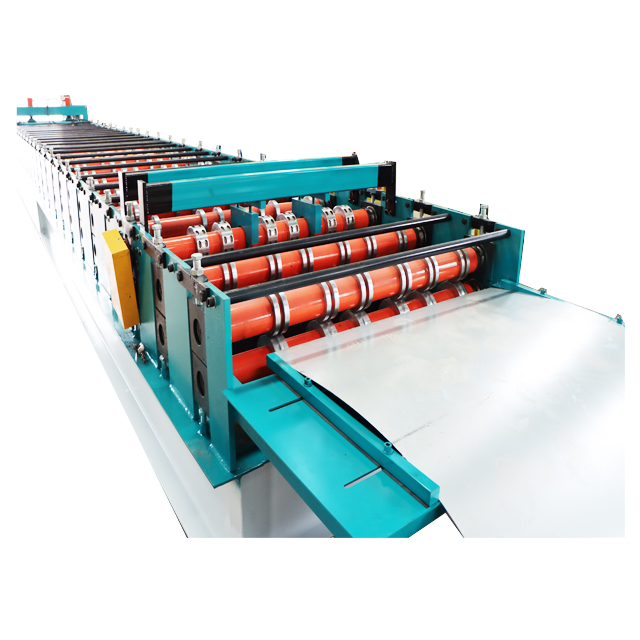

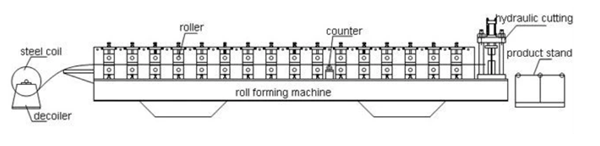

floor deck roll forming machine is one set automatic roll forming machine include the decoiler ,feeding device ,point press,roll forming machine ,hydraulic cutting and output table.
The galvanized steel floor has simple shape, large waviness, and good adhesion after laying spot welded reinforcement mesh and on-site pouring of concrete during installation. In high-rise buildings, it can not only save the steel formwork, but also reduce the floor load. On the premise of reaching the same bearing capacity, it can reduce the amount of steel used in the project and save investment. The products produced by floor decking roll forming has the characteristics of light weight, large bearing capacity and good performance. They are widely used in multi-storey and high-rise steel structure buildings.
floor deck roll forming machine details
Feeding material: PPGI/aluminum/gl/gl
Thickness of the plate:0.5--1.0mm
Diameter of the axle :Φ95mm
Rolling stages:22 stages
Productivity: 5-8m/min
Total power: 22kw machine motor + 4kw pump station motor
Voltage:380V 50Hz 3phase or as requirement
Base frame:350H steel
Side board thickness:20mm
Cutting blade: Cr12 with heat treatment

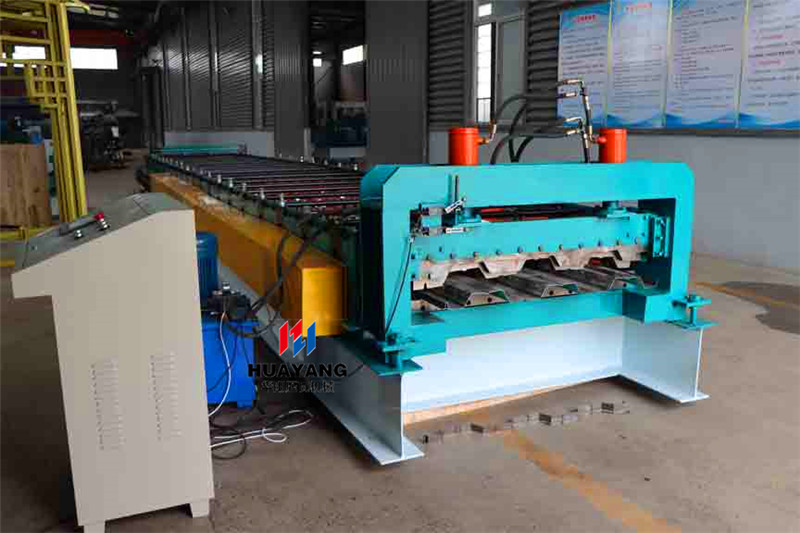

Cutting system: Hydraulic cutting system after forming
Control cabinet: PLC

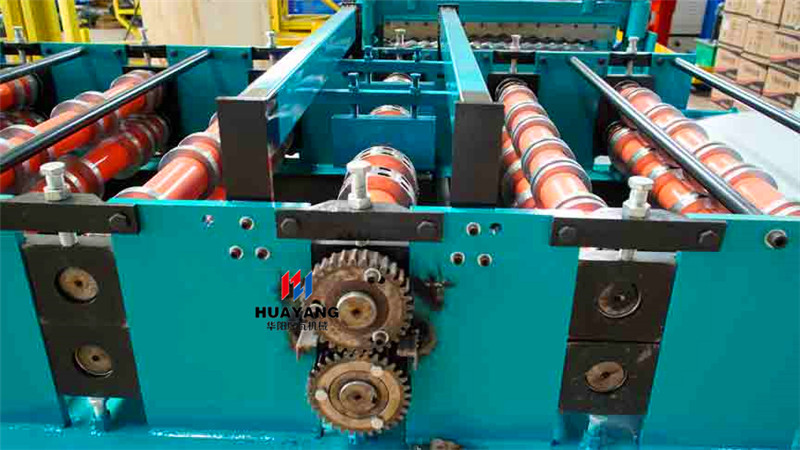

Pitting setting can be selected,you can choose the pitting when produce ,with or without both ok.

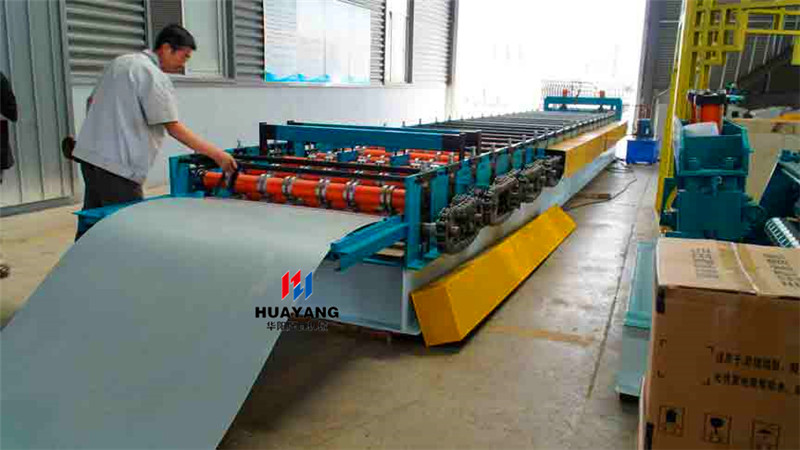

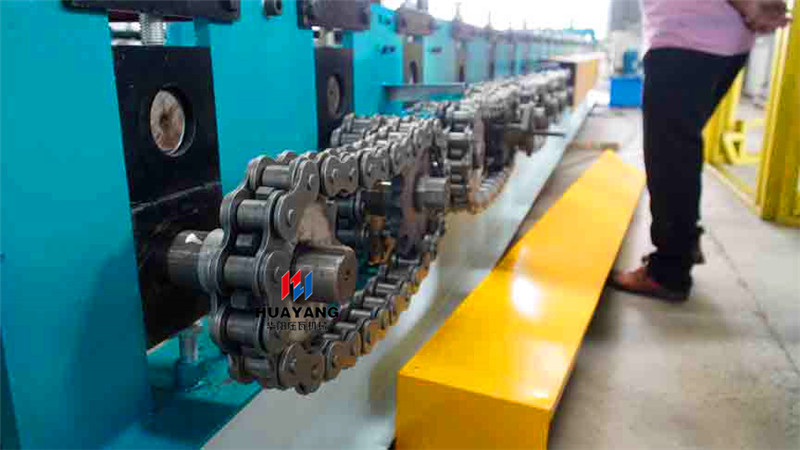

china driving ,no noise ,easy to install ,the chain is put outside ,easy to install and maintain,we will supply the
protection case for free .

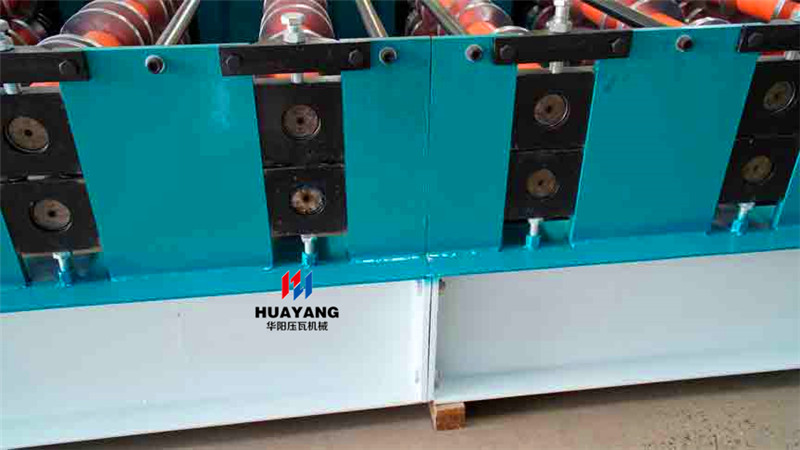

two parts design ,to deliver by 40ft container easily ,we divide the machine into two parts ,when you receive the machine,
you only need joint with screws .

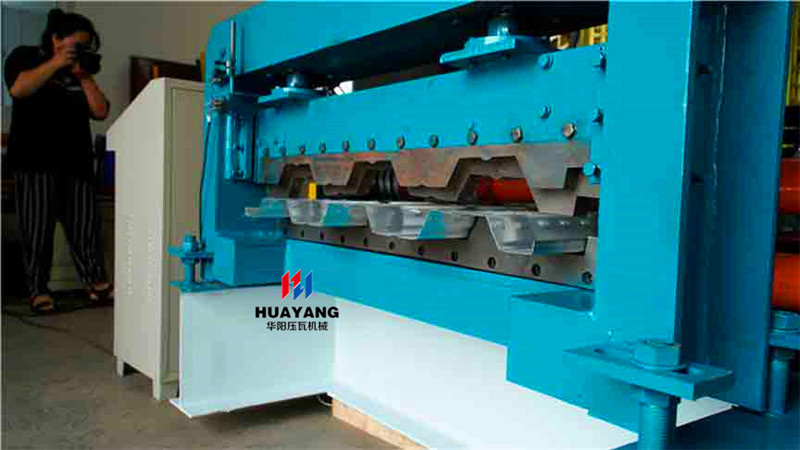

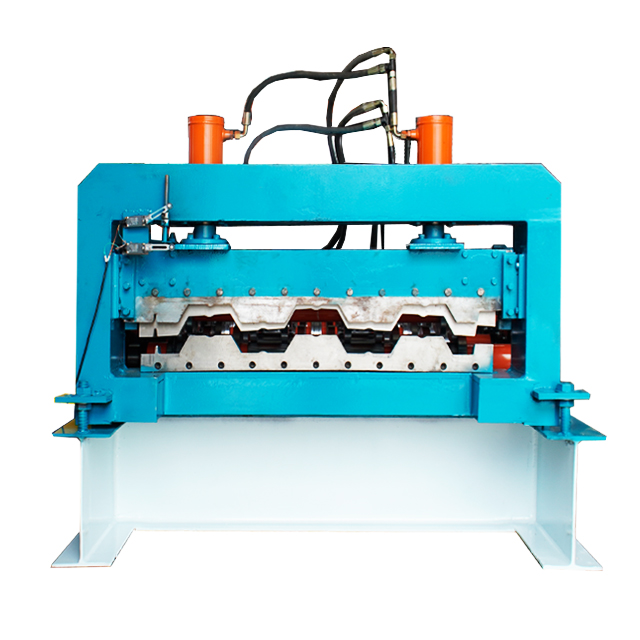

double pieces high strength cutter ,Prevent the plate from warping when cutting
\

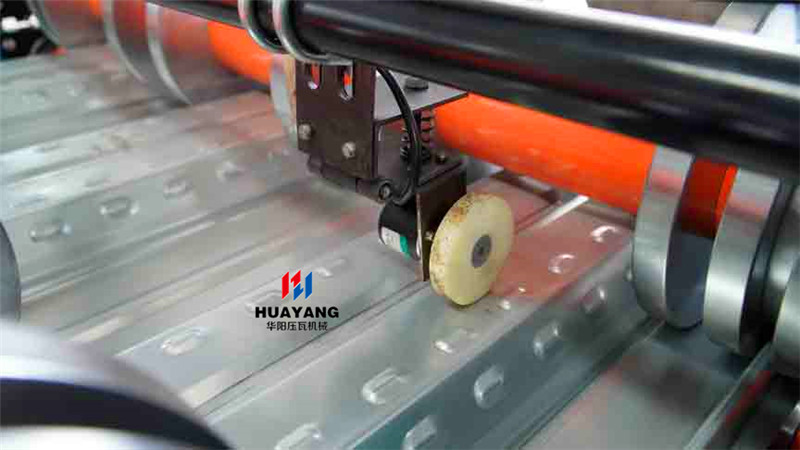

High precision encoder can accurately measure the length and number of sheets, so that the board length has no error

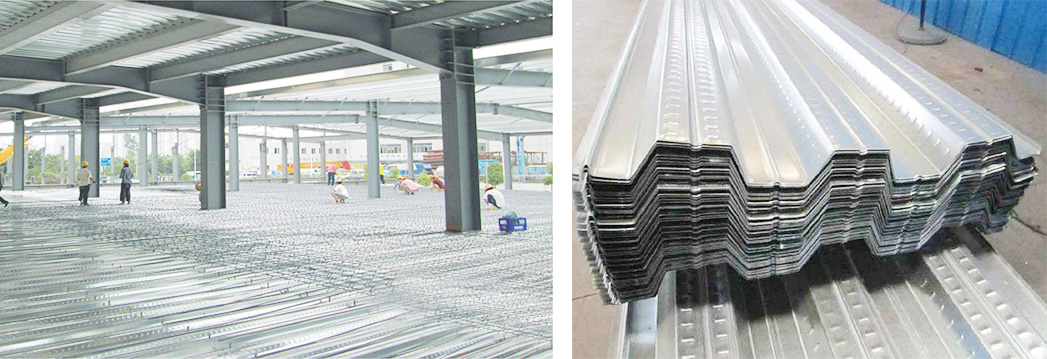

The Final Products and Application
Customer from all over the world
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
