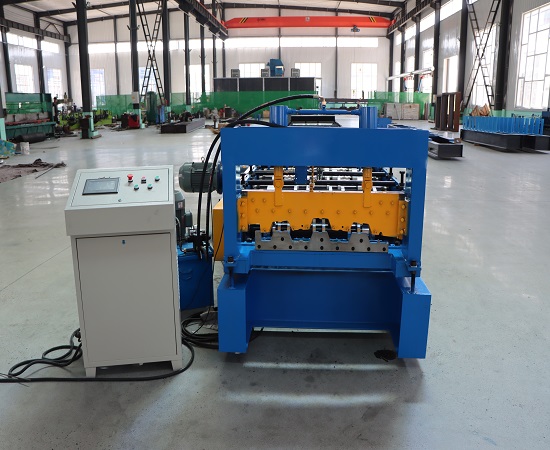

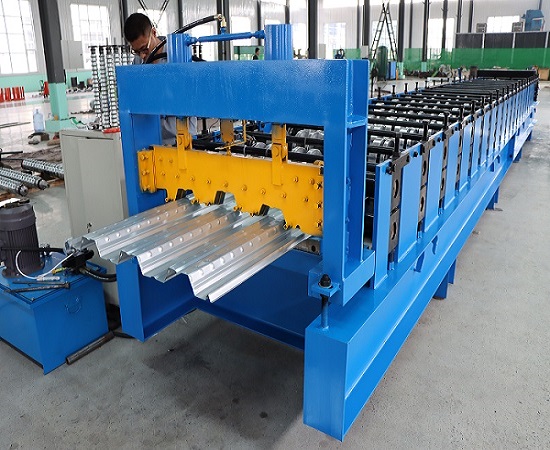

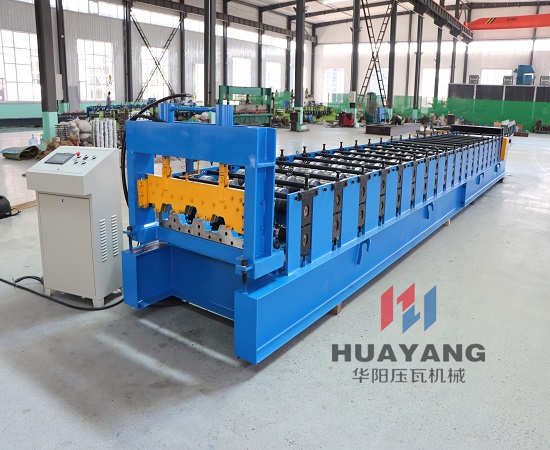

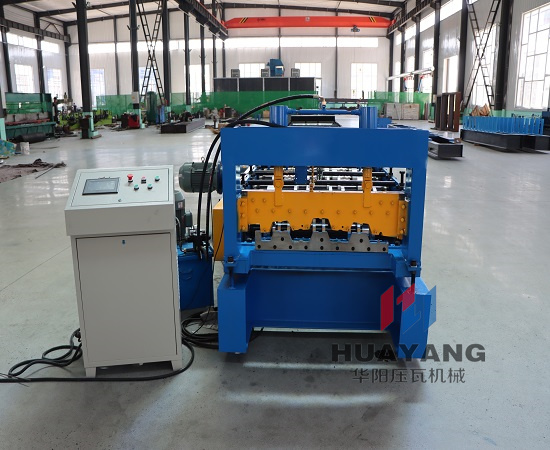

steel structure house 1000metal deck floor roll forming machine is the full automatic line to produce the 1000type metal deck floor .The 1000 metal deck floor can be used as the bottom reinforcement of the floor, reducing the workload of installing the plate reinforcement; In the construction stage, the floor steel bearing plate can be used as the continuous lateral support of the steel beam, which improves the overall stable bearing capacity of the steel beam.
The galvanized steel floor has simple shape, large waviness, and good adhesion after laying spot welded reinforcement mesh and on-site pouring of concrete during installation. In high-rise buildings, it can not only save the steel formwork, but also reduce the floor load. On the premise of reaching the same bearing capacity, it can reduce the amount of steel used in the project and save investment. The products produced by floor decking roll forming has the characteristics of light weight, large bearing capacity and good performance. They are widely used in multi-storey and high-rise steel structure buildings.
Key attributes
Feeding material: PPGI/aluminum/gl/gl
Thickness of the plate:0.5--1.0mm
Diameter of the axle :Φ95mm

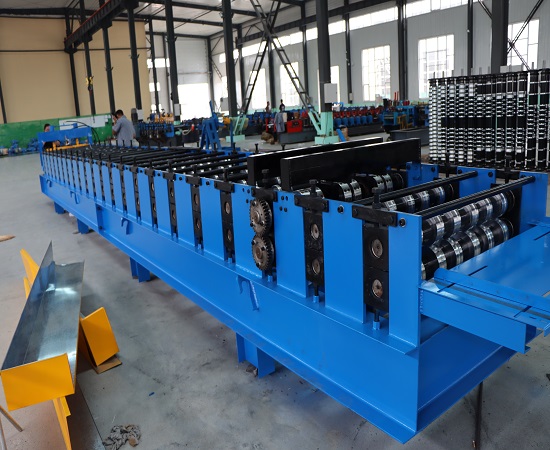

Rolling stages:22 stages
Productivity: 5-8m/min
Total power: 22kw machine motor + 4kw pump station motor
Voltage:380V 50Hz 3phase or as requirement
Base frame:350H steel
Side board thickness:20mm

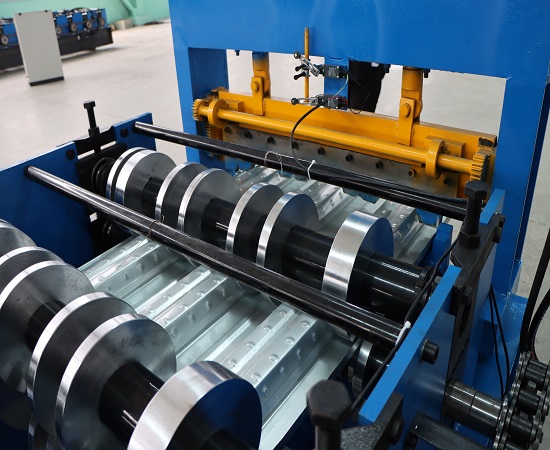

Cutting blade: Cr12 with heat treatment
Cutting system: Hydraulic cutting system after forming
Control cabinet: PLC

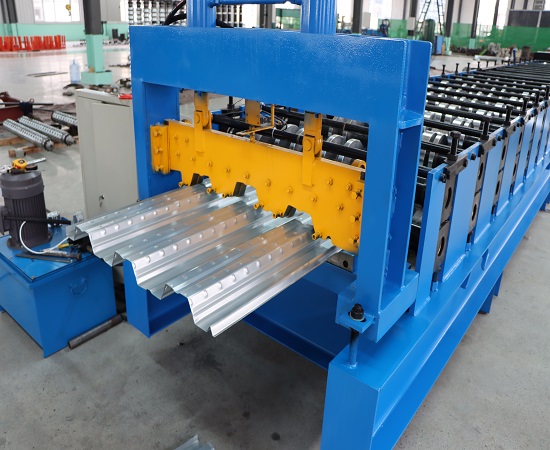

The Final Products and Application
Company Profile
Customer from all over the world
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
