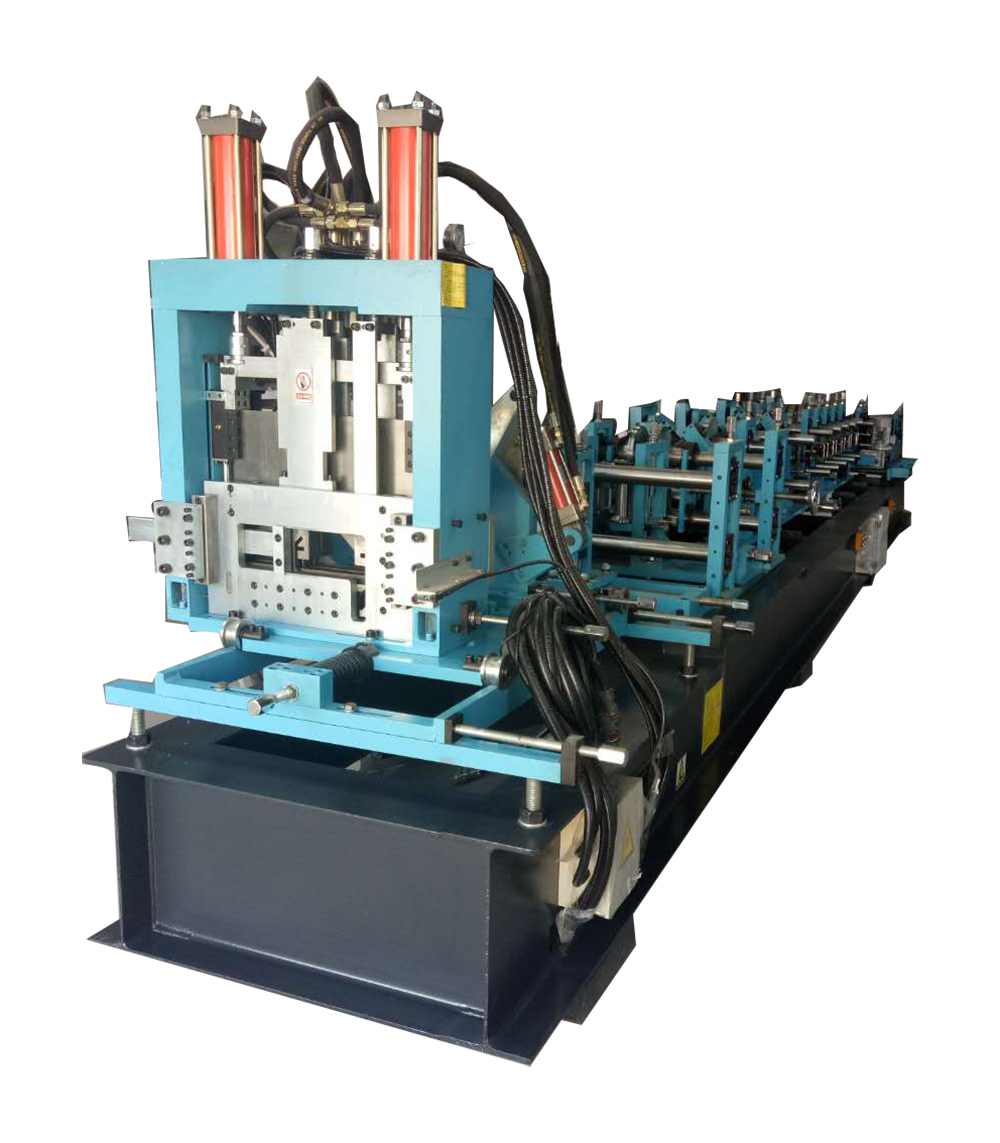

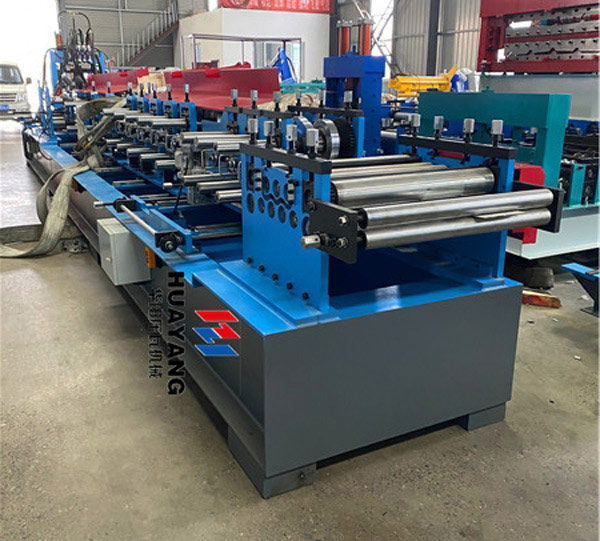

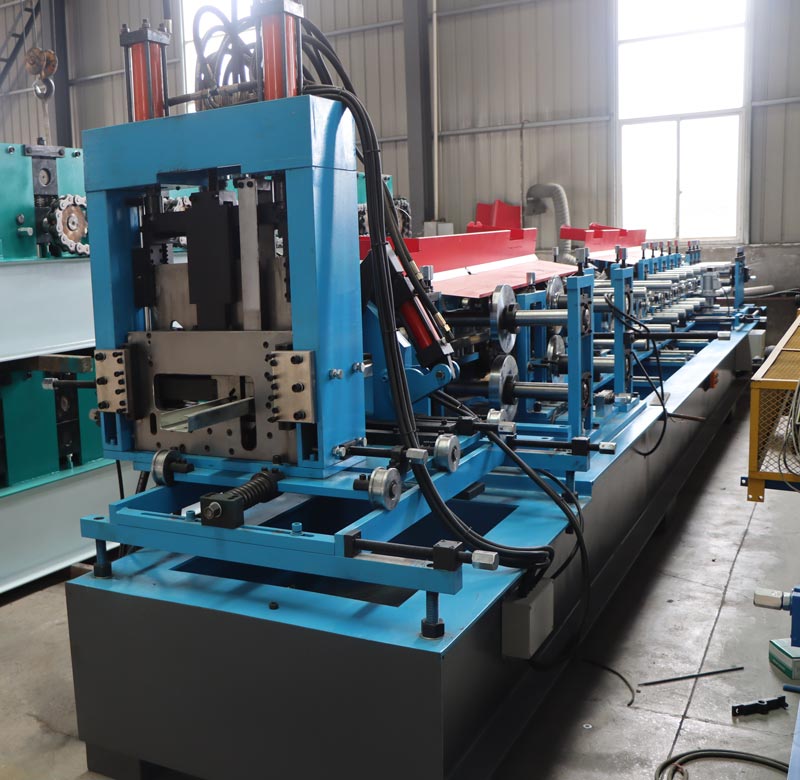

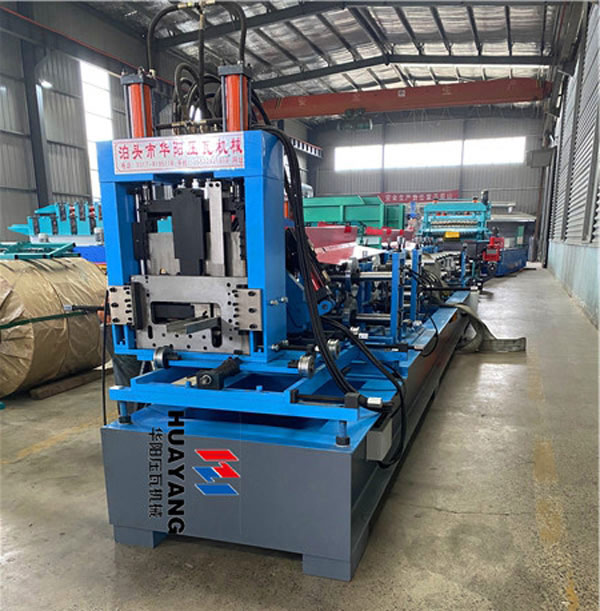

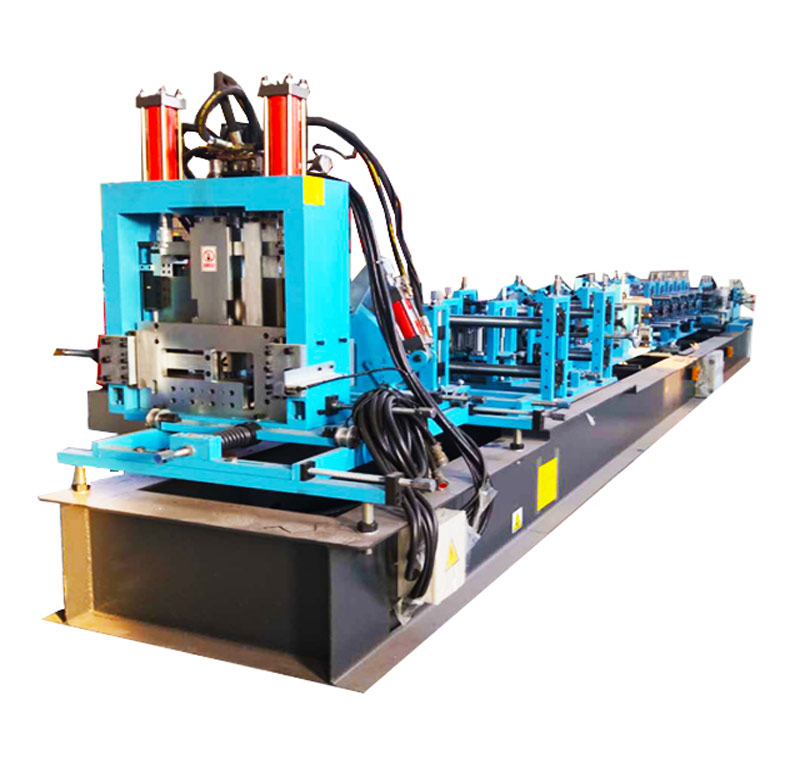

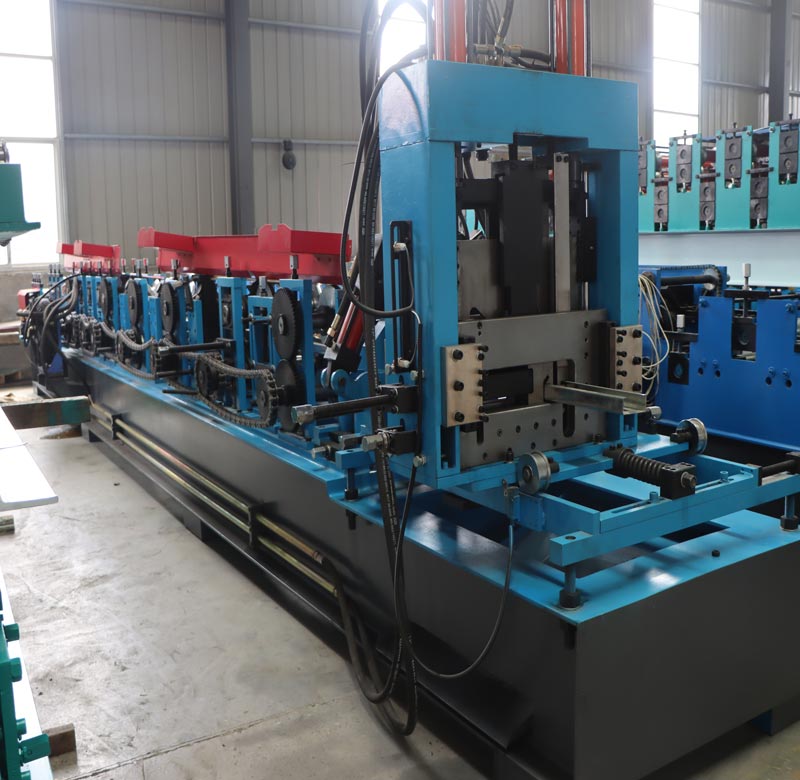

Steel Frame Purlin Machinesis one of the main forming machine produced by Botou Huayang Roll Forming Machinery.,Ltd. the machine can change c purlin and z purlin size from 80-300 automatically ,and only need twist switch from C to Z fast and conveniently.

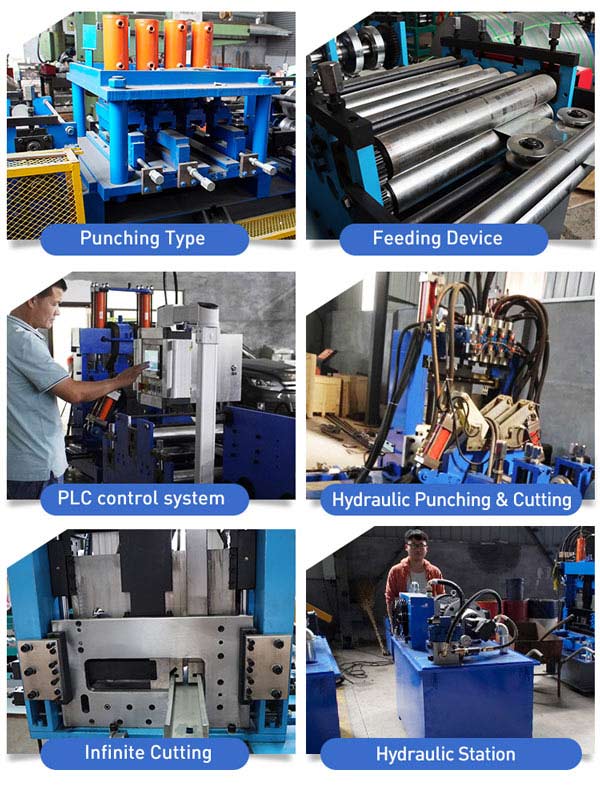

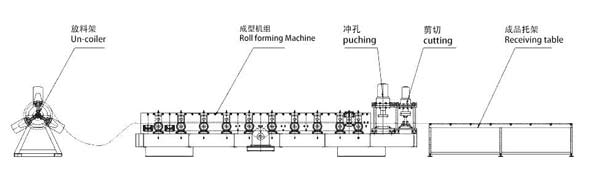

the steel frame and purlin machine can produce both c purlin and z purlin from 80-300mm .thickness at 3mm.the whole line included decoiler-leveling and feeding -roll forming-Straightening- punching -cutting -output table.
the steel frame and purlin machines technical details :
equipment operating | fully automatic computer control |
C processing specification（mm） | 80-300 |
Z processing specification (mm) | 120-300 |
Raw material of thickness | 1.5mm-3mm |
Production speed | About 25m/min |
Levelling rollers | 11 steps |
Diameter of levelling rollers | 100mm |
Main forming rollers | 16 steps |
The diameter of forming rollers | 85 mm |
Material of the rollers | 45# steel |
Auxiliary device | 6 steps regulating wheel |
Material of shaft/wheel | GCr15 |
Size of main machine（mm） | 11.9m x 1.8m x 1.6m |
Hydraulic motor power | 22kw |
PLC control system | Delta brand |
The material of rollers | Cr12 |
Machine body | 400 H steel |
The model of changing sizes | Computer control automatic change size |
cutting model | Automatic cutting |
punching model | Automatic punching |
Product support frame | 6m |
The production line of use and feature:
The material of the production line is galvanized sheet or steel strip.The formed products are used for building house frame and main girder, it can increase solid and durability of house. The production line has not limit of production length, you can set many different of data on the computer control cabinet according to the construction requirement. After setting, the machine will produce different length of finished products according to the setting data by computer .The surface of finished products are smooth, without the wave scratch, convenient to install. The products are accord with the standard of national steel structure building.

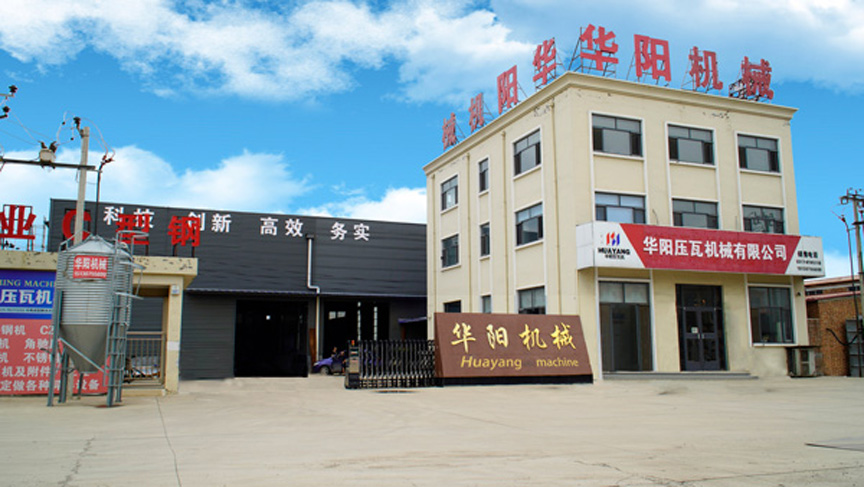

the botou huayang roll formimg machinery co.,ltd company information .
our company established in 2012,we did international business only ,the company named botou huayang trading co.,ltd.in 2015,we rent a warehouse and produce roll forming machine by ourselves .in 2016,we build our own factory named botou huayang roll forming machine co.,ltd ,we supply kinds of roll forming machines to our own export company and domestic market .we still rent the warehouse to produce the C Z purlin roll forming machine only .in 2021,we but new ground about 6000㎡ for plant expansion ,it will be finished in the October ,I will share you photos when our new factory established .
welcome to contact us to Achieve win-win cooperation.
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
