CZ type steel tile press is an efficient and multifunctional equipment mainly used for producing C-type and Z-type steel, suitable for the main load-bearing structure of large and medium-sized industrial and civil buildings. This equipment integrates key components such as passive loading rack, leveling device, punching device, post forming cutting device, hydraulic station, and computer control system, achieving automated production and greatly improving production efficiency and product quality.

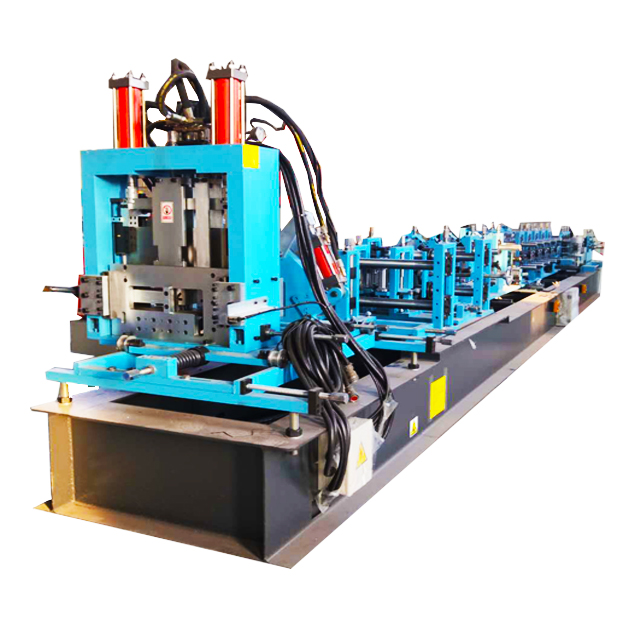

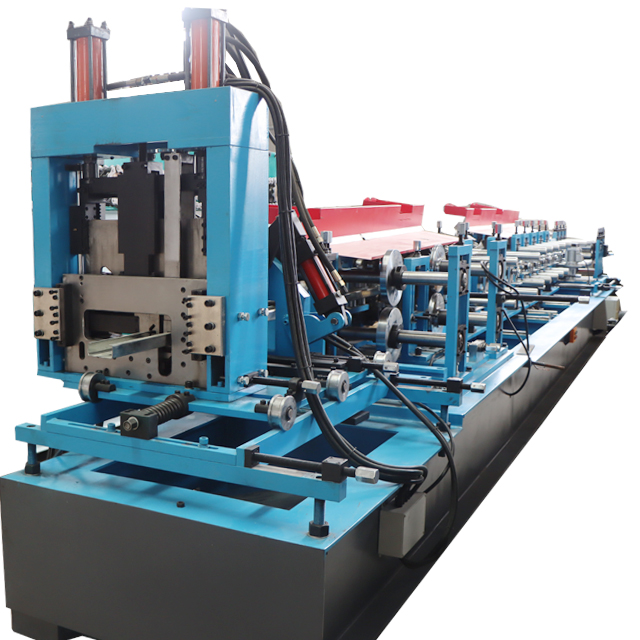

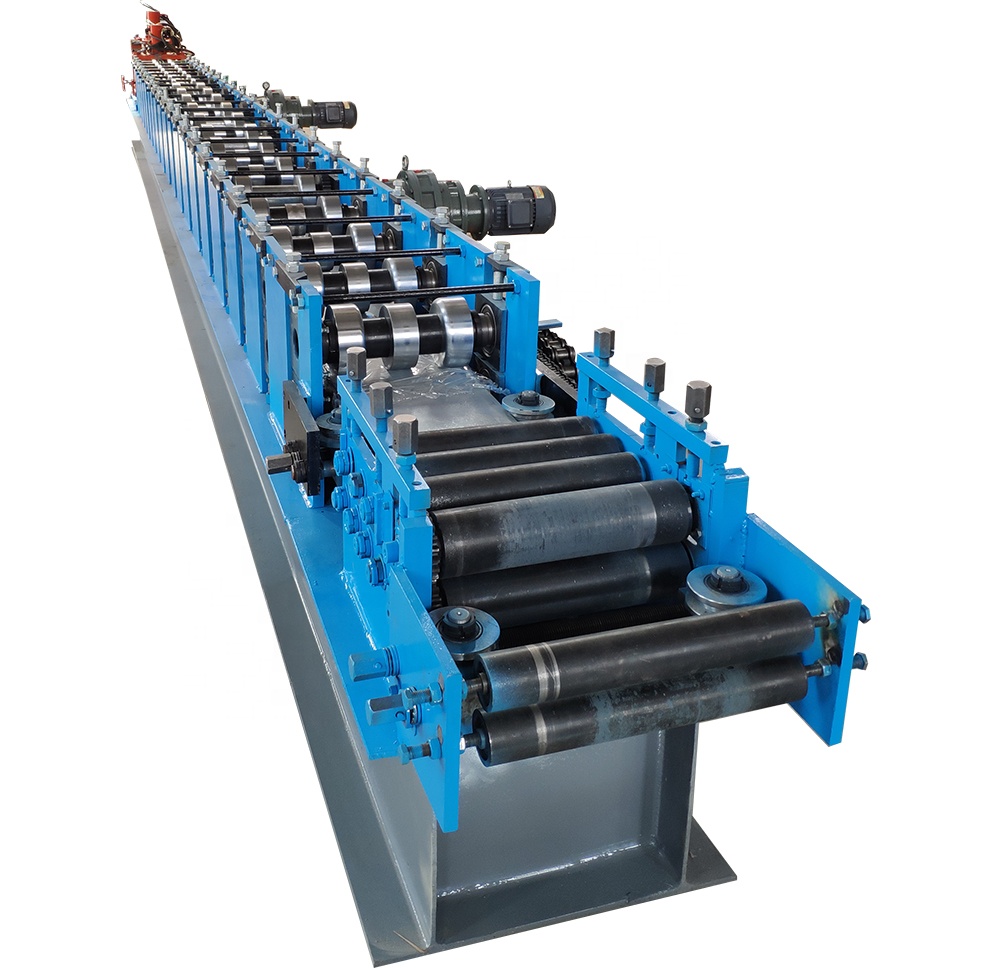

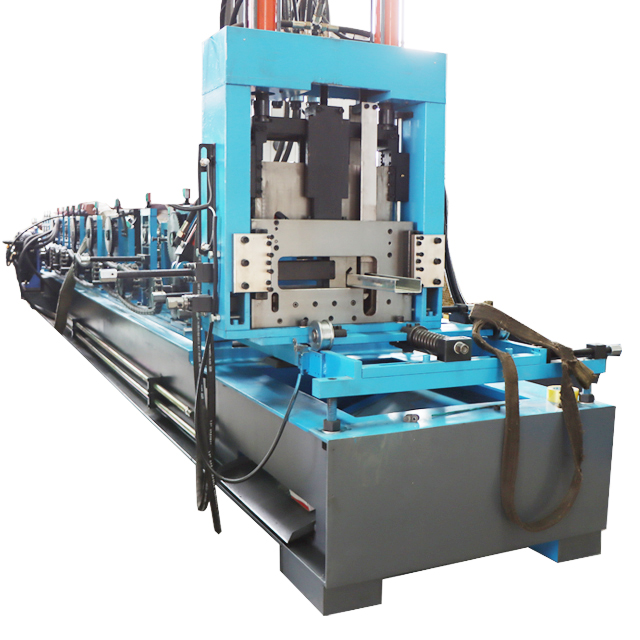

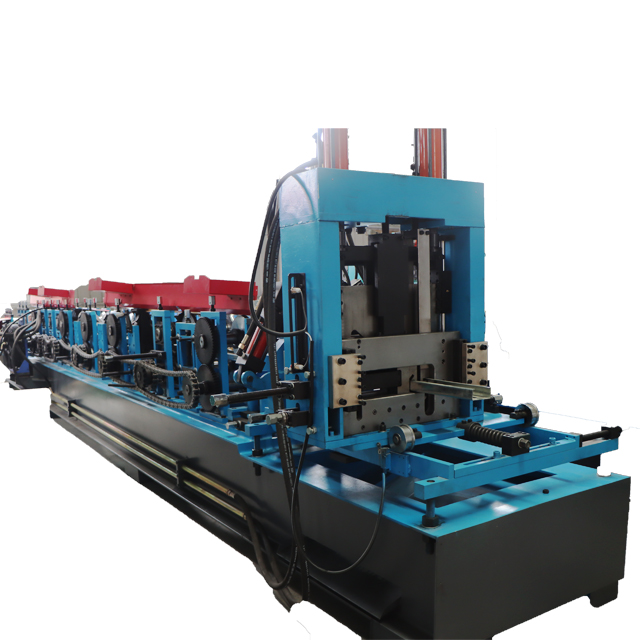

Our Machine Details
the steel frame and purlin machine can produce both c purlin and z purlin from 80-300mm .thickness at 3mm.the whole line included decoiler-leveling and feeding -roll forming-Straightening- punching -cutting -output table.
the steel frame and purlin machines technical details :
| equipment operating | fully automatic computer control |
C processing specification（mm） | 80-300 |
Z processing specification (mm) | 120-300 |
Raw material of thickness | 1.5mm-3mm |
Production speed | About 25m/min |
Levelling rollers | 11 steps |
Diameter of levelling rollers | 100mm |
Main forming rollers | 16 steps |
The diameter of forming rollers | 85 mm |
Material of the rollers | 45# steel |
Auxiliary device | 6 steps regulating wheel |
Material of shaft/wheel | GCr15 |
Size of main machine（mm） | 11.9m x 1.8m x 1.6m |
Hydraulic motor power | 22kw |
PLC control system | Delta brand |
The material of rollers | Cr12 |
Machine body | 400 H steel |
The model of changing sizes | Computer control automatic change size |
cutting model | Automatic cutting |
punching model | Automatic punching |
Product support frame | 6m |
The production line of use and feature:
The material of the production line is galvanized sheet or steel strip.The formed products are used for building house frame and main girder, it can increase solid and durability of house. The production line has not limit of production length, you can set many different of data on the computer control cabinet according to the construction requirement. After setting, the machine will produce different length of finished products according to the setting data by computer .The surface of finished products are smooth, without the wave scratch, convenient to install. The products are accord with the standard of national steel structure building.
welcome to contact us to Achieve win-win cooperation.
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
