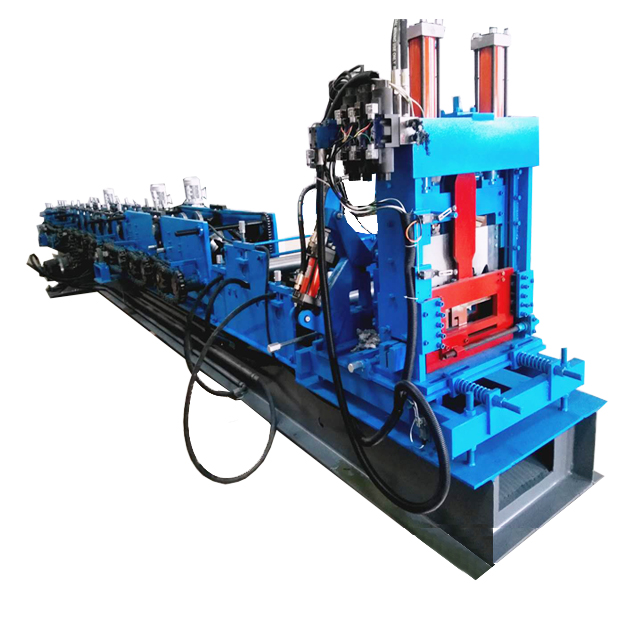

purlin manufacturing machinery

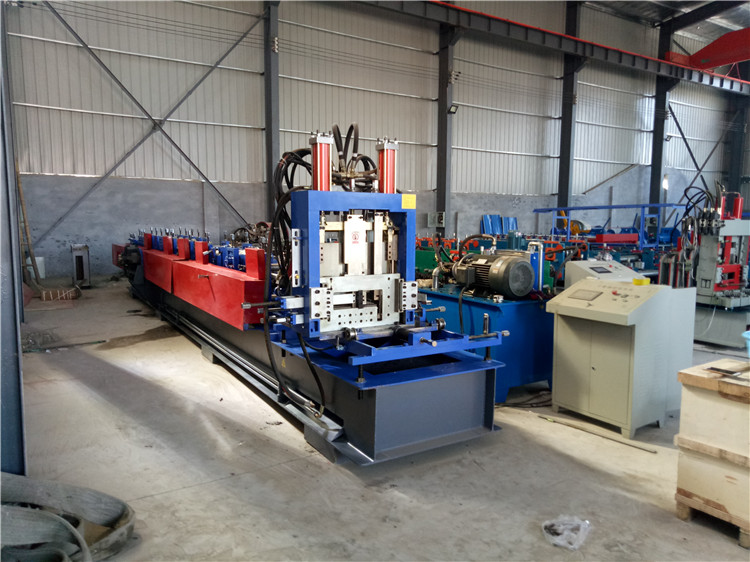

purlin manufacturing machinery is professionally designed to make the C Z purline in batch. It allows to do online punching, online punching logos. It composed by the following elements: decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table. Take the following drawing profile for example: is professionally designed to make the C Z purline in batch. It allows to do online punching, online punching logos. It composed by the following elements: decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table. Take the following drawing profile for example:
| Size | 7800*1500*1600mm |
| Weight | 1000KGS |
| Voltage | 380V/60HZ/3PH |
| Hydraulic Motor Power | 22KW |

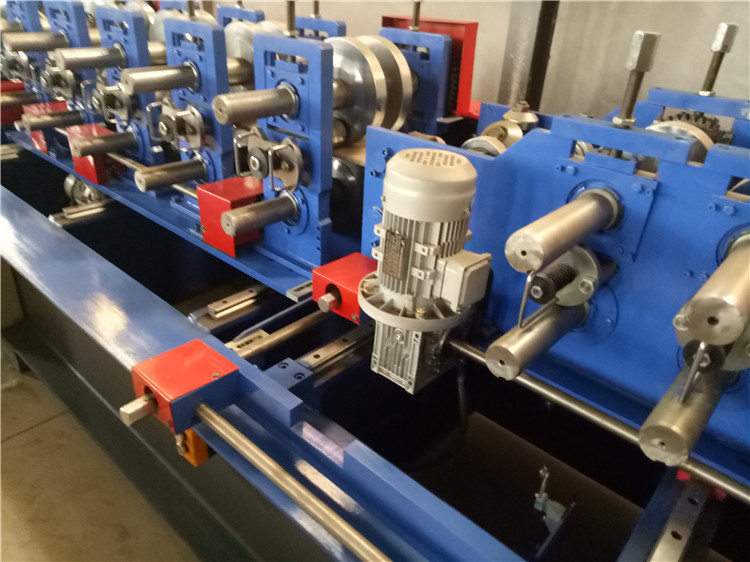

| Motor Power for auto adjustment size | 0.37KW*2+0.75KW |
| Motor Power for auto guide device | 0.18KW*2 |
Motor Power for auto adjustable
hole distance device | 0.18KW*2 |
| Forming Steps | 13steps+3steps for reshaping |
| Forming Speed | 15m/min |

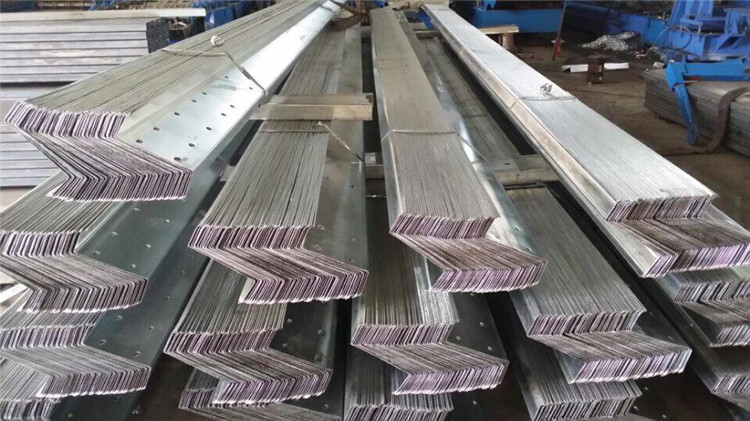

| Edge for Z purline | 15-25mm |
| Height of Z Purline | 30-70mm |
| Width of Z Purline | 100mm-300mm |
| Forming Thickness | 1.0-3.0mm |
| Tolerance for cutting | ±2.0mm |
| Tolerance for Forming | ±2.0mm |
| Straightness | 2mm/m |
| Material for All Roller | Gcr15 steel with heat treatment |
| Material of principal axis | High grade 45# forged steel |
| Sprocket wheel | 45# steel high-frequencies quench |
| Cut-off system | Hydraulic cutting device |
| Material for Blade | Cr12 mold steel with quenched treatment 60-62°C |
| Material for frame of machine | Fine welded structural steel; |
Material for producing the
Z Purline | GI Steel with Min.420 Mpa ( JIS G 3302 SGC440
OR EN 10346 S350GD ) |
| Painted Color | Red or Customization |
Main Accessories:
| (1) Main Purline Forming Machine; |
| (2) 5 Tons Manual Uncoiler ; |

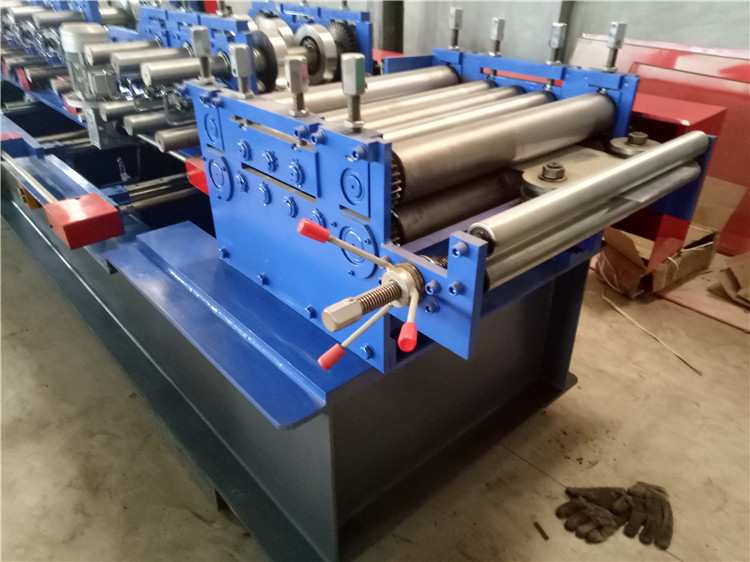

| (3) Automatic Guide Device; |
| (4) Hydraulic Motor System; |
| (5)PLC Computer Controlling System With Touch Screen ; |
| (6) Automatic Adjustable Hole Distance Device; |
| (7) Hydraulic Pre-punching Holes Device; |
| (8) Hydraulic Pre-cutting Device |
| (9) Reshaping Device; |
| (10) Rib Rollers; |
| (11) Run Out Table(10 pcs); |
| (12) Tools; |
| (13) Operation Manual,drawing for changing parts |
| (14) Free supply 10pcs bearing, 1.5m chain, 10pcs chain connection pins; |
| (15) Operation Manual. |
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
