Botou Huayang Roll Forming Machine Co., Ltd. Established in 2003. specialized in producing cold roll forming machine, such as all kinds of C/Z purlin roll forming machine, corrugated roll forming machine, IBR sheets roll forming machine, glazed tile roll forming machine, double layer roll forming machine, three layer roll forming machine, sandwich panel roll forming machine line, stud/ track/truss/furring frame roll forming machine, rolling shutter machine, door frame machine, high frequency tube welded forming machine, gutter machine, downpipe machine, floor deck machine and etc. Sticking to the principle of "Quality is our culture", sincerely hope to cooperate with you, my dear friend!

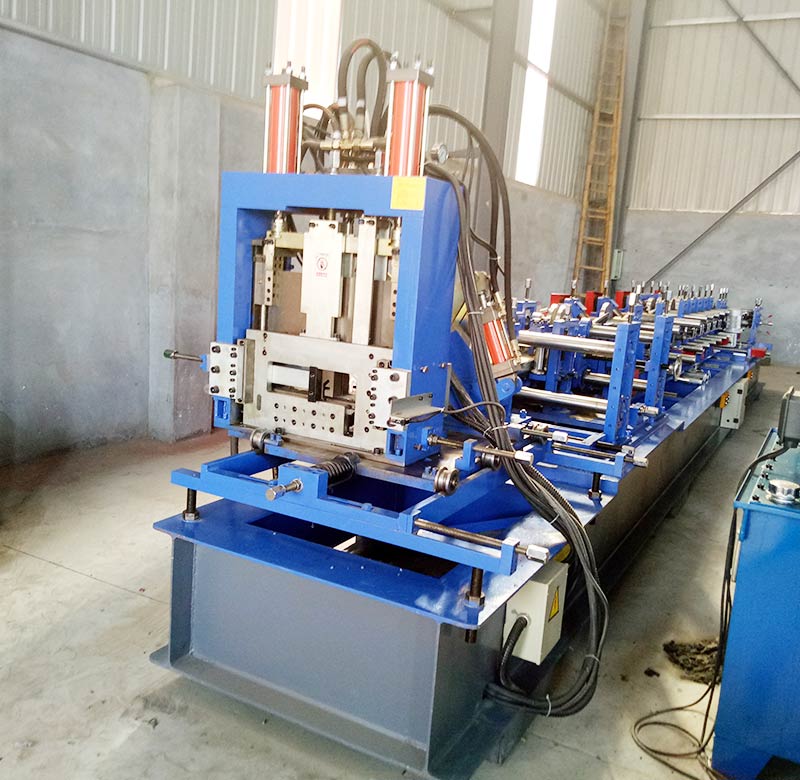

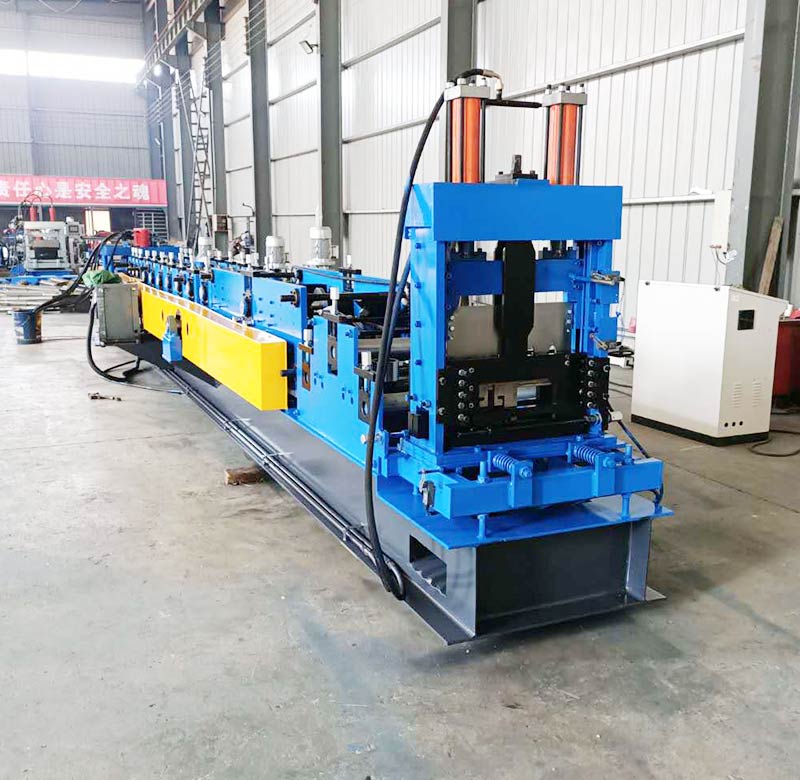

C purlin forming machine, can change into any sizes within 3 minutes, All the sizes within the C purlin size range can be produced, the raw material thickness: 1.5-3.0mm.
Parameters of cz shape purlin roll forming machine
| Raw material: GI, cold plate |
| equipment operating | fully automatic computer control |
| C processing specification(mm) | 80-300 |
| Raw material of thickness | 1.5mm-3.0mm |
| Production speed | About 12-25m/min |
| Levelling rollers | 11 steps |
| Main forming rollers | 25 steps |
| The diameter of forming rollers | 75 mm |
| Material of the rollers | 45# steel |
| Auxiliary device | 6 steps regulating wheel |
| Size of main machine(mm) | 11m x 1.5m x 1.6m |
| Weight of main machine | About 11 Tons |
| Main motor power | 15 kw |
| PLC control system | Delta brand |
| The material of rollers | Cr12 |
| Machine body | 400 H steel |
| The model of changing sizes | Computer control automatic change size |
| cutting model | Automatic cutting |
| punching model | Automatic punching |
| Product support frame | 6m |

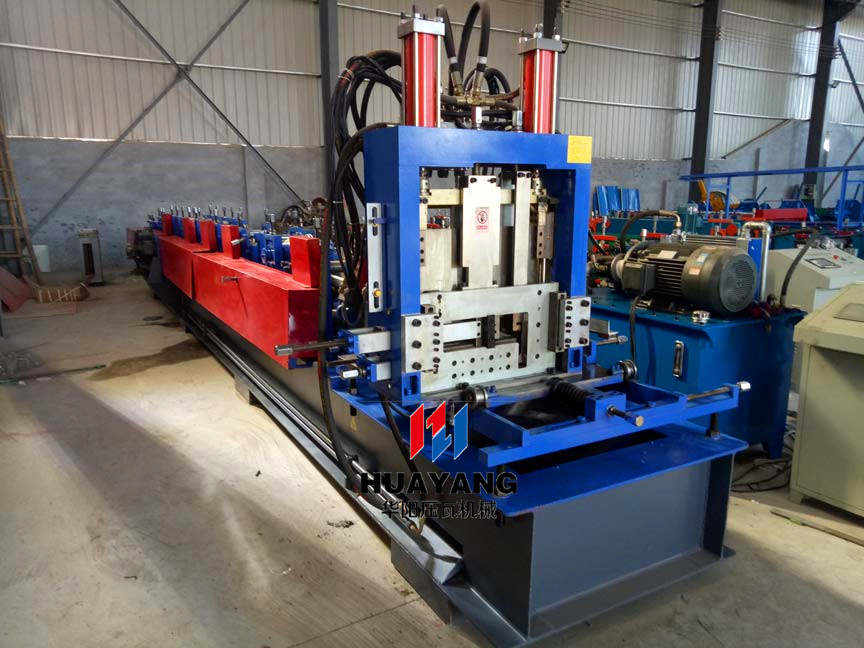

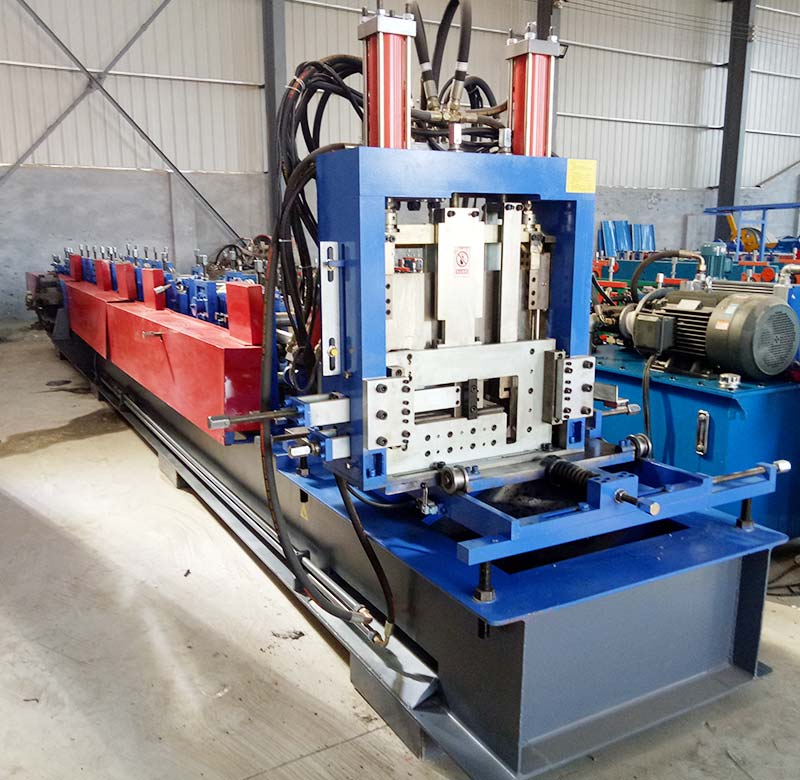

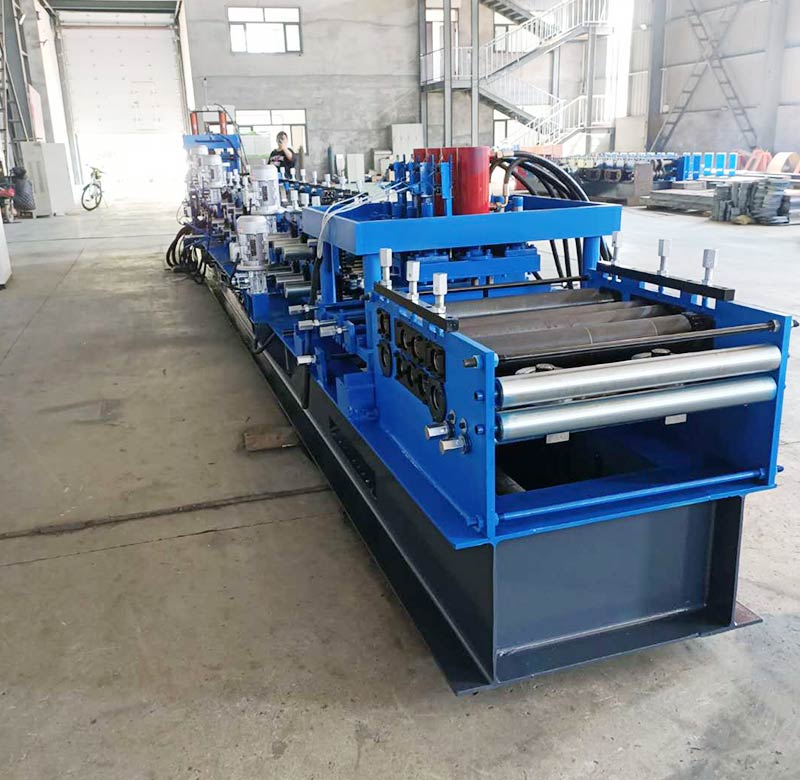

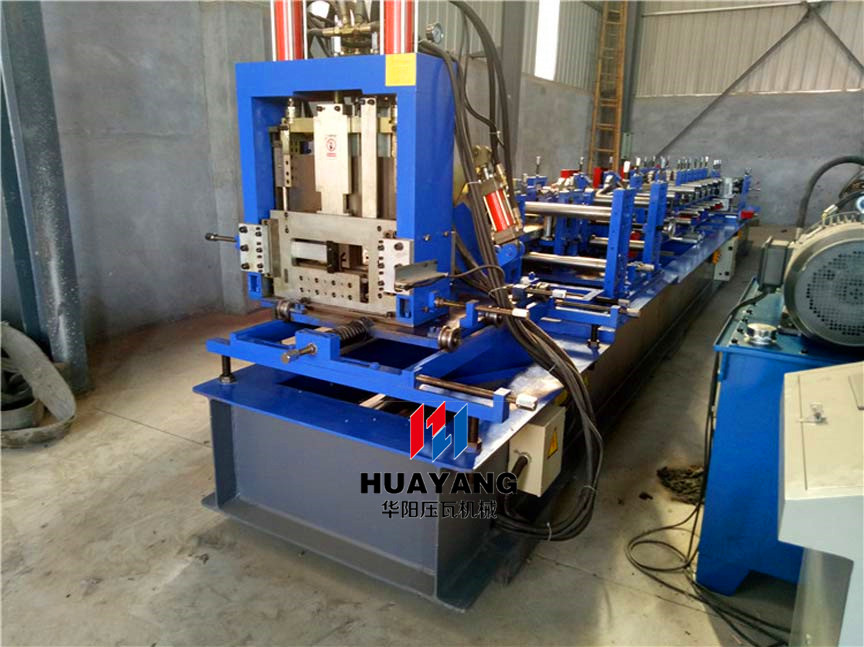

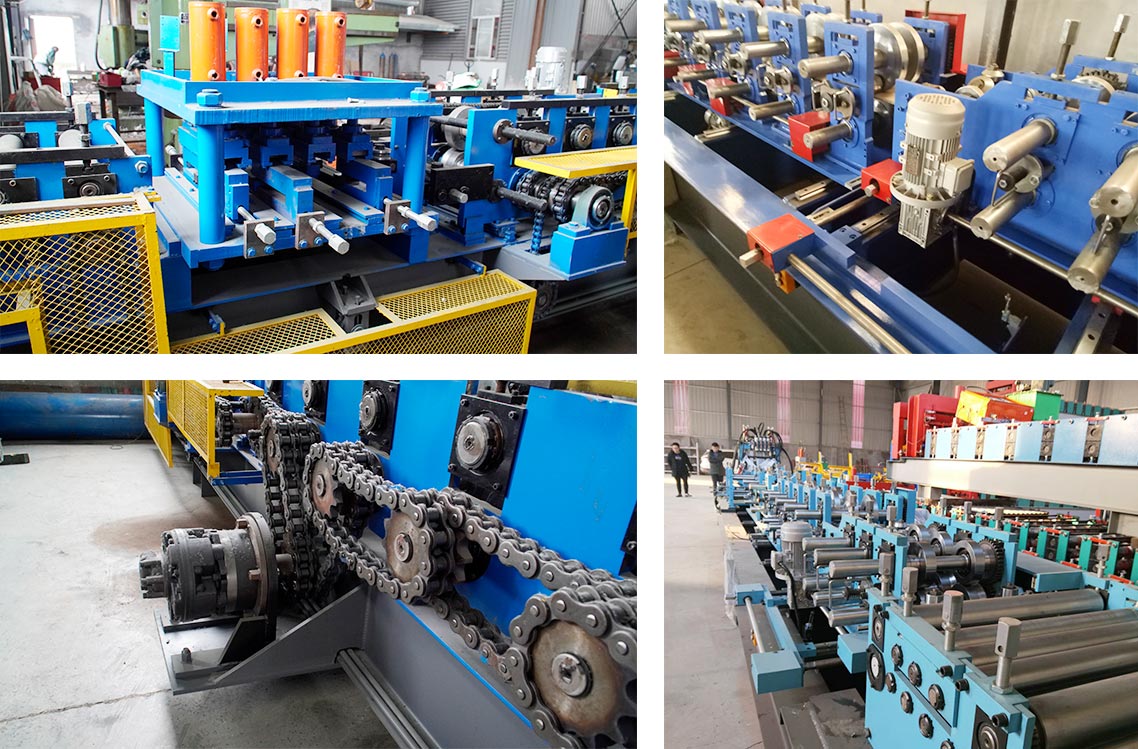

Our Machine Details
The c z purlin roll forming machine characters
1. c z purlin roll forming machine is designed with 25 roller stations and roll forming in same time ,making the c pulin sheet plate ,no paint scratch .
2. The c z purlin roll forming machine main body use 400mm H steel .the side panel use 18mm steel .
3. The roller model use #45 steel which is made of bearing steel, and the surface is plated with hard chromium.
4. Chain drive, 15kw reducer,Smooth movement without noise.
5. The side panel is connected with cast steel pull plate, and the machine will not change when rolling thick plate.
6. The transmission bearing adopts 210 high-speed double sealed bearing, which is maintenance free, so as to prolong the operation life of the machine.
7. Hydraulic cutting is with CDF-10 Gear pump,no noise ,longer lifetime .
8. frequency converter PLC control system, with simple operation, accurate accuracy, stable performance, length accuracy less than 2mm, and output speed up to 25m / min.

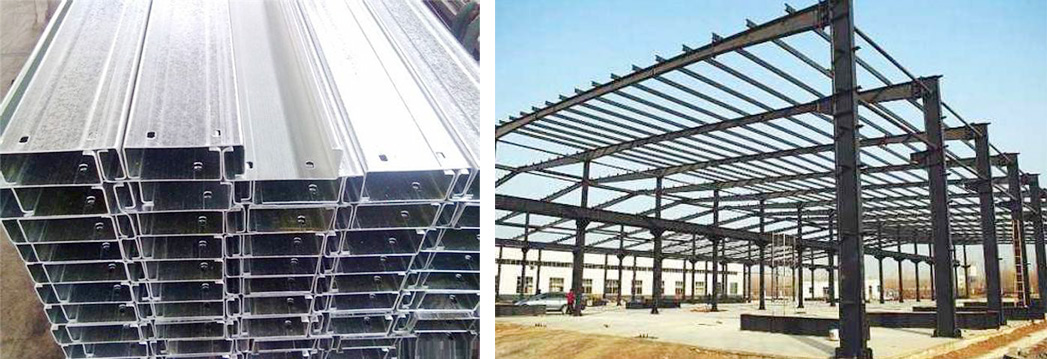

The Final Products and Application
Customers from all over the world to buy c purlin forming machine
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
Contact ways to buy steel former c purlin metal sheet equipment
Any quesion, please contact me any time, I am waiting for you 24 hours/day.
