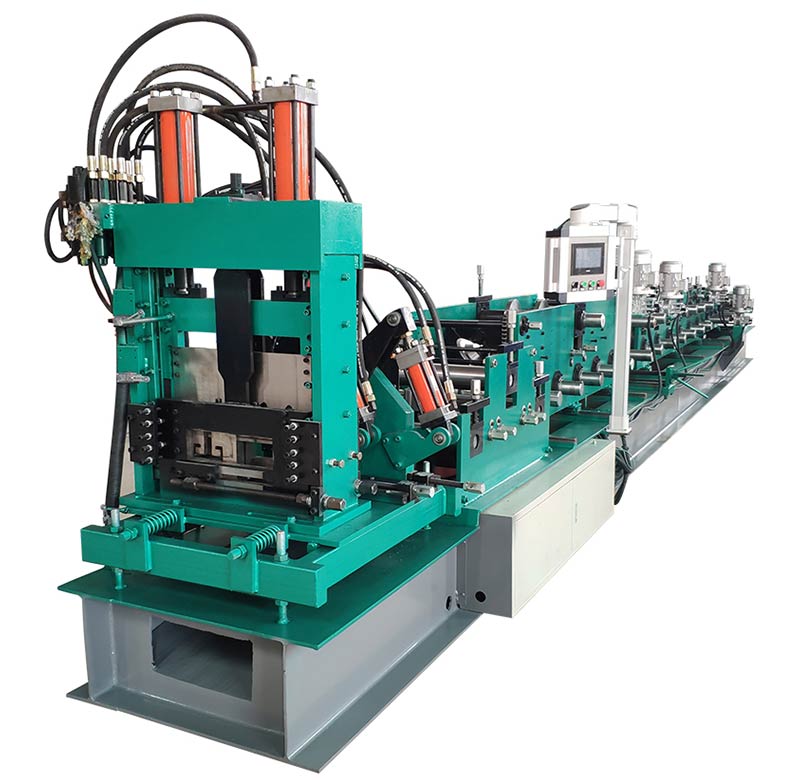

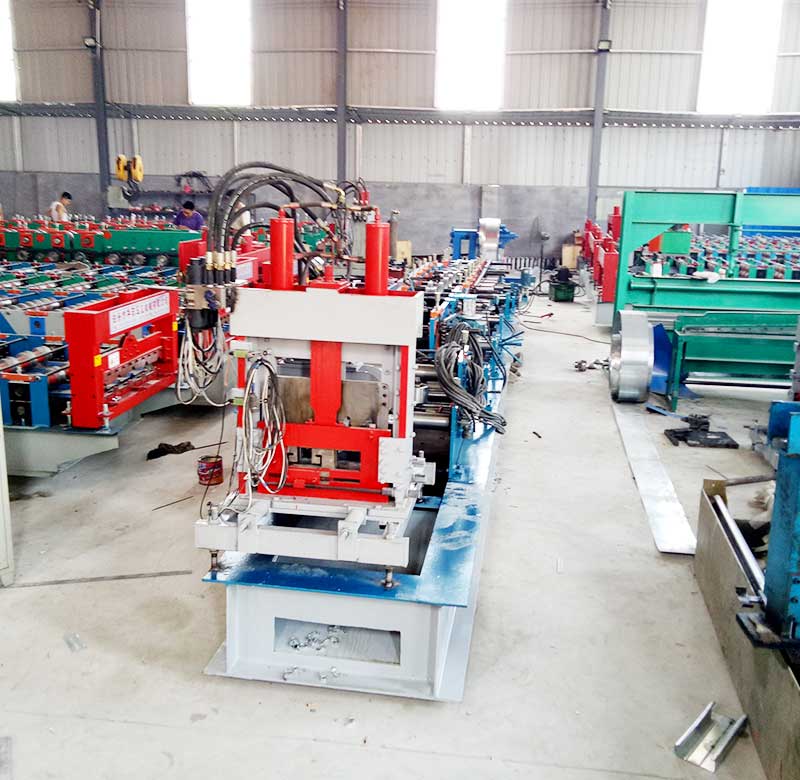

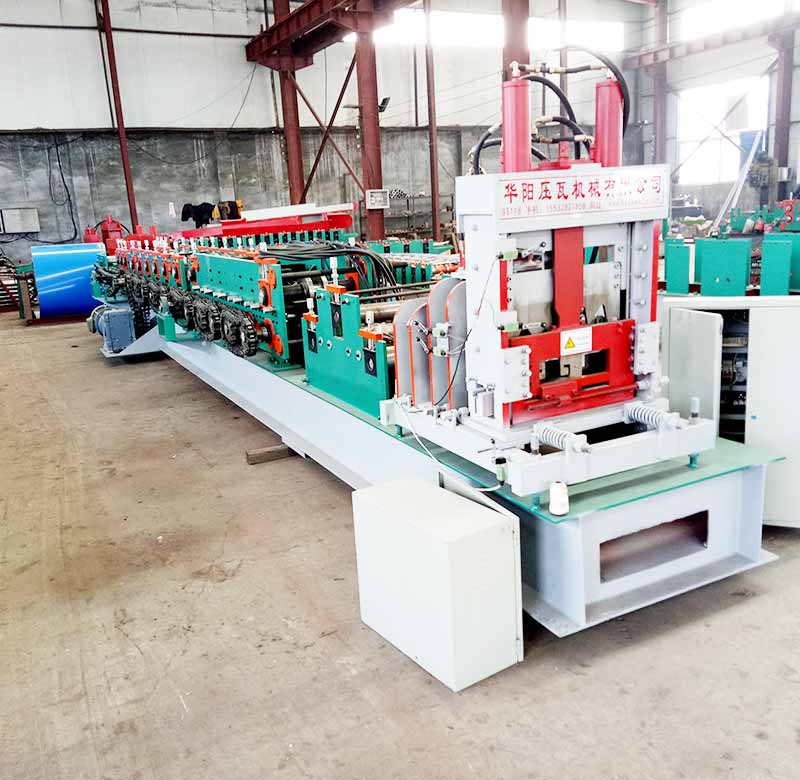

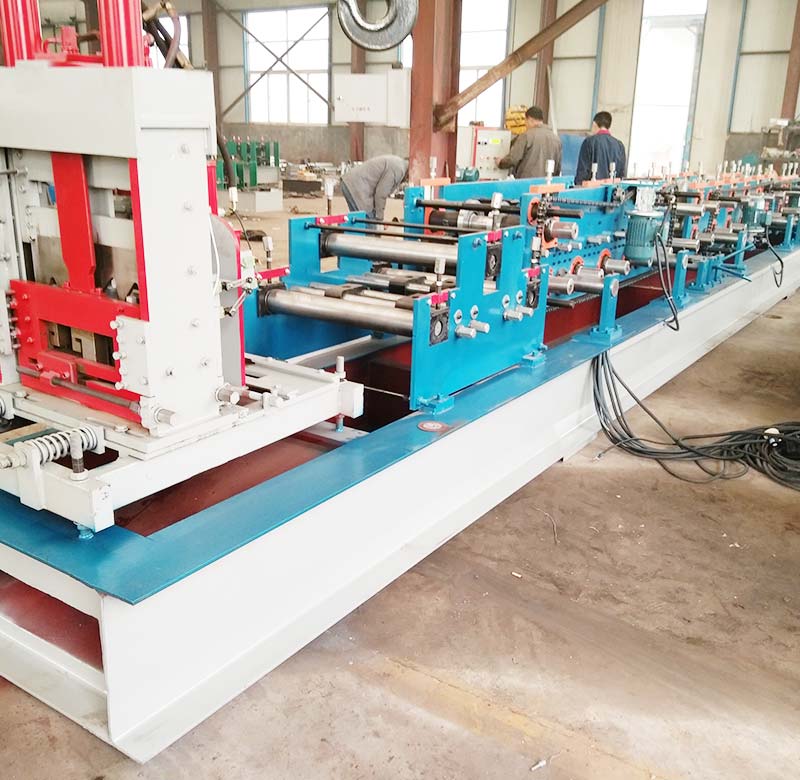

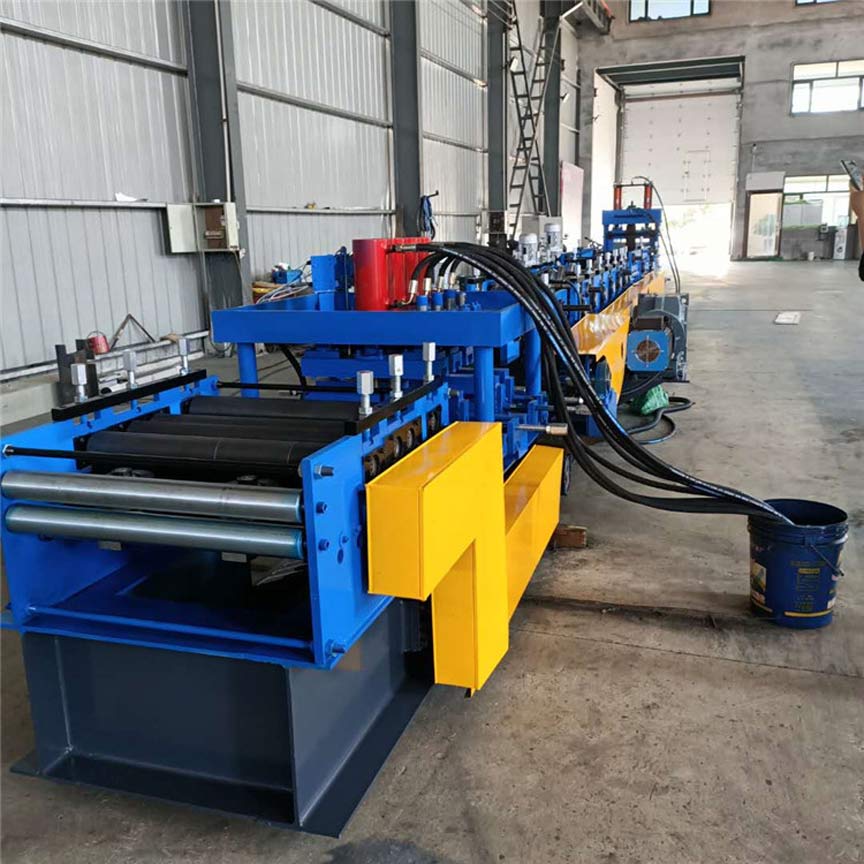

The main purpose products of one key exchange C purlin roll forming machine can be used as the main stress structure of large and medium-sized industrial and civil buildings. Full automatic C-section steel press, also known as full-automatic C-section steel sandalwood strip tile press, is one of many tile press varieties and a basic type of tile press. C-shaped steel is not channel steel, but is pressed by thin plate such as 2.5mm thick steel plate, which is used as purlin of steel structure plant. Different from the color steel plate forming machine, it is a hydraulic power with great power, generally about 22KW, similar to the plate shearing and bending machine. The general control process is complex, and PLC control is mostly used.
Specifications
| Feeding material | Galvanized steel coil |
| The steel coil thickness scope | 1.5-3mm |
| Total power | 22kw motor |
| Voltage | 380v / 60hz / 3 phases |
| Number of forming rollers | 14 steps |
| Working speed | 3-12m/min |
| Machine size | 9600x1500x1600mm |
| Machine weight | 9.6tons |
| Punching device | Hydraulic punching device for punching hole |
| Control system | PLC control system + hand touch screen |
| Control system language | Chinese/English/Russian |
| The C and Z inter change | Changed by rotated device |
| The C or Z size change | Changed by a converter motor. |

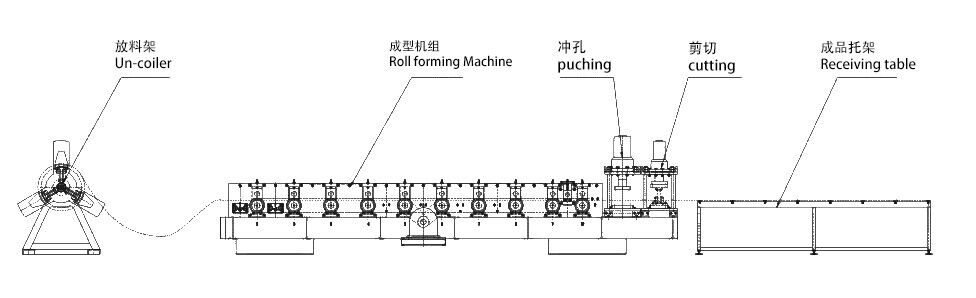

Components

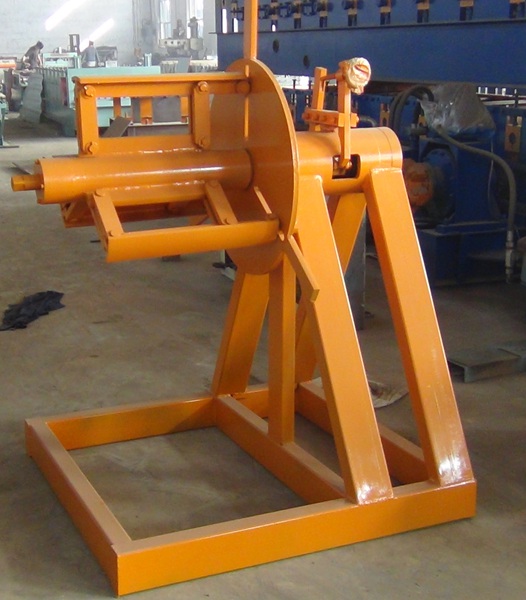

Decoilor: Manual decoiler: weight capacity of decoiler: 5.0T

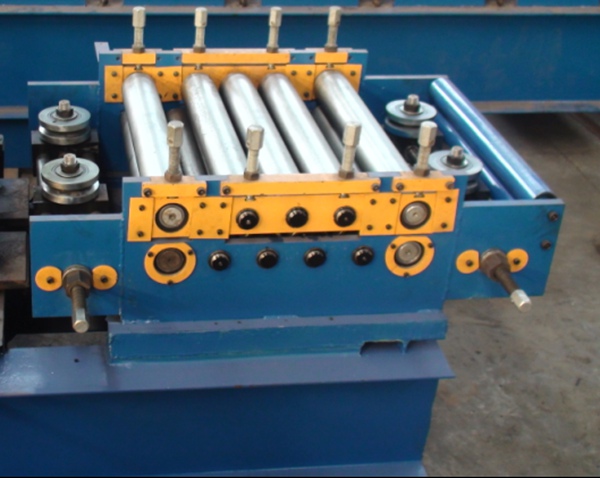

Feeding and Leveling Device
It used for making the material flat before feeding into the roll forming machine

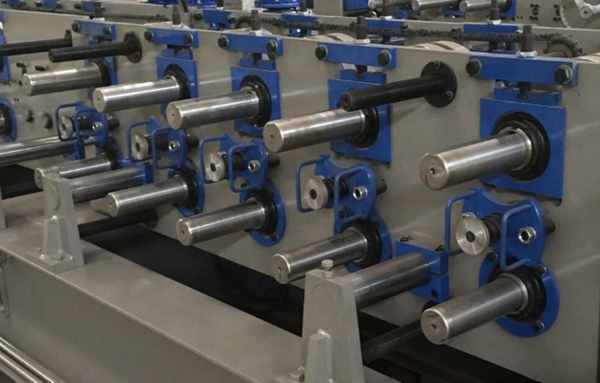

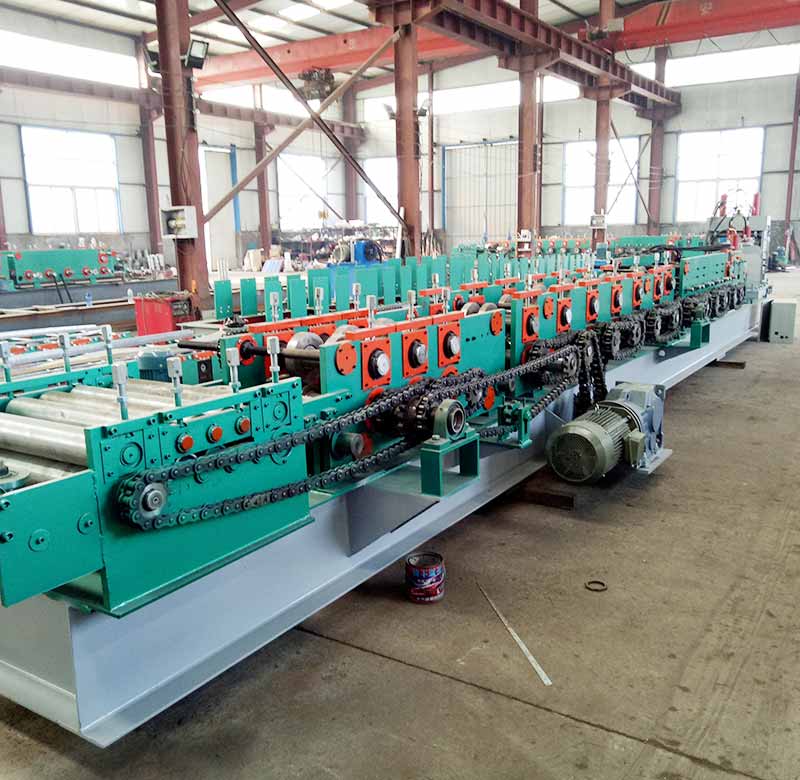

Roll-Forming M/C main motor type: phase asynchronous motor
Max width of coil can be loaded: 475 mm
motor power: 15KW
speed of forming: 10-15m/min
material of roller: GCr15
14 groups rollers
material of main shaft: 40Cr(The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming)
diameter of main shaft: ø80mm

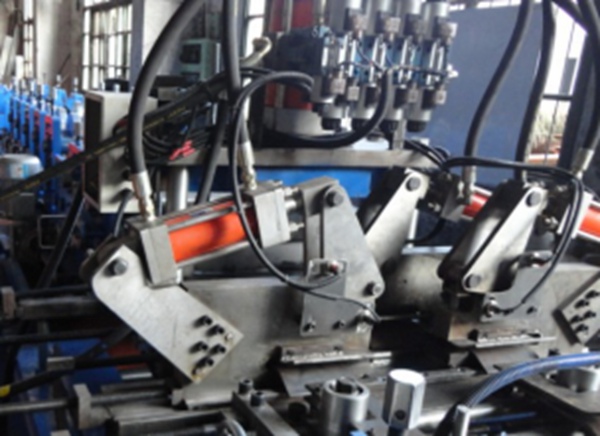

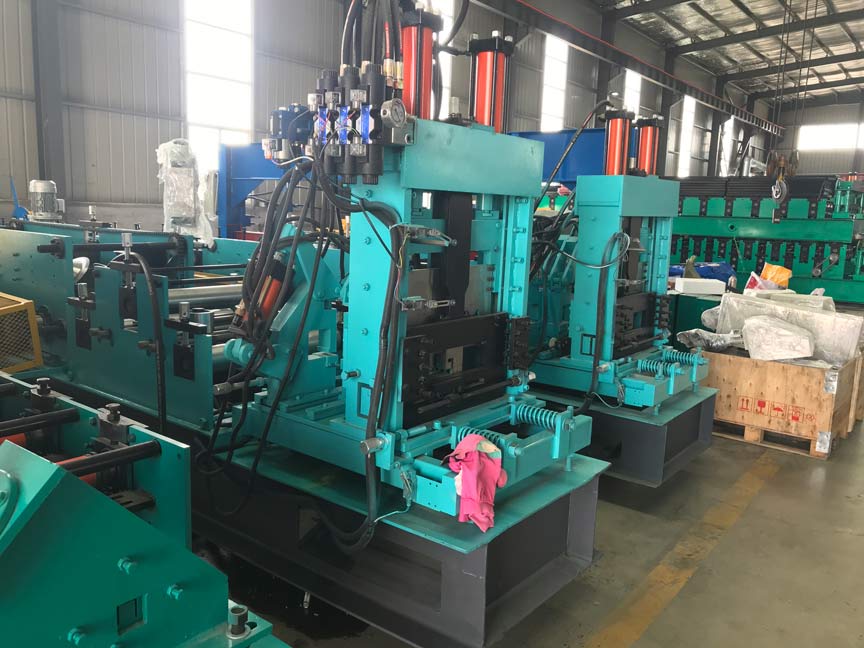

Hydraulic Punching & Cutting (punching and cutting are before roll forming)
Punching Type: Hydraulic Punching
Cutting type: Hydraulic cutting
Cutting material: Cr12 Cr12

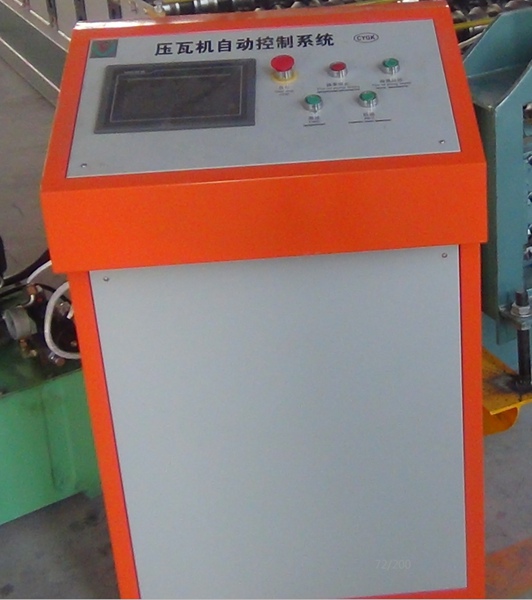

PLC Control System
Control the quantity &punching length& cutting len
PLC manufacturer: Japan Panasonic
Solenoid valve
Oil hydraulic cylinder
Bearing
Oil pipeline
Touch Screen
Encoder

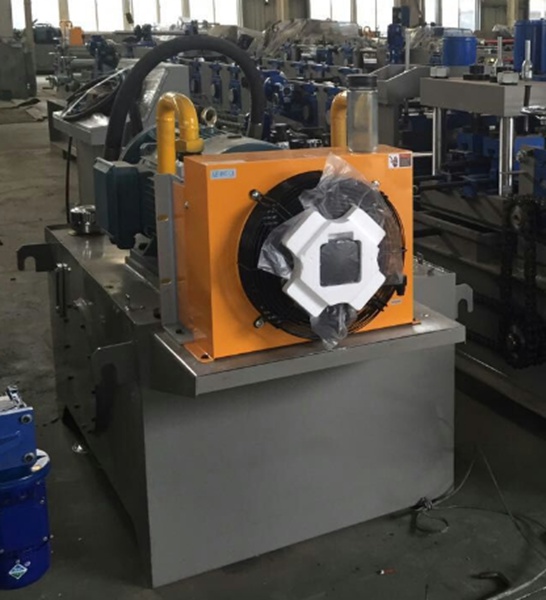

The hydraulic system

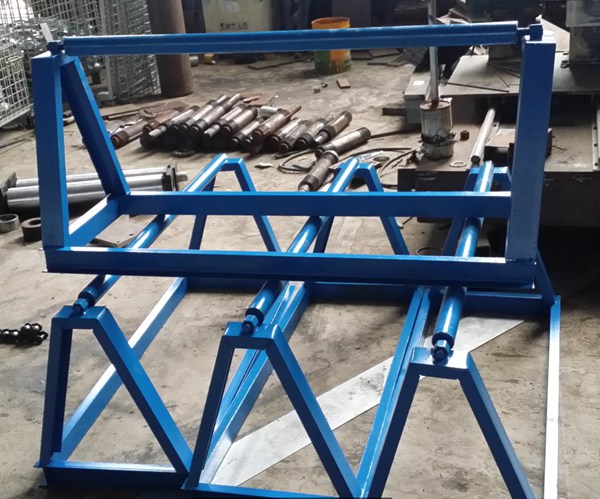

Receive Table
The material of the production line is galvanized sheet or steel strip.

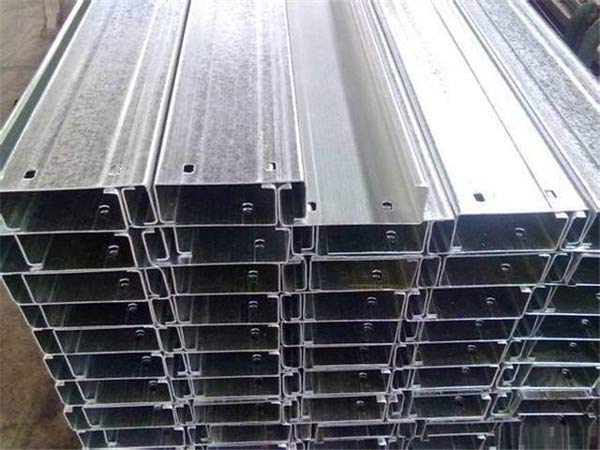

The formed products are used for building house frame and main girder, it can increase solid and durability of house. The production line has not limit of production length, you can set many different of data on the computer control cabinet according to the construction requirement. After setting, the machine will produce different length of finished products according to the setting data by computer .The surface of finished products are smooth, without the wave scratch, convenient to install. The products are accord with the standard of national steel structure building.
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
