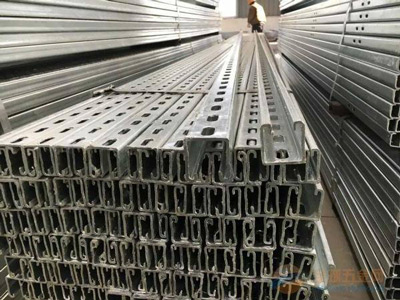

Solar photovoltaic bracket is a special bracket designed for placing, installing and fixing solar panels in solar photovoltaic power generation system. General materials include aluminum alloy, carbon steel and stainless steel.The products related to solar support system are made of carbon steel and stainless steel. The surface of carbon steel is hot-dip galvanized and will not rust after 30 years of outdoor use. The solar photovoltaic support system is characterized by no welding, no drilling, 100% adjustable and 100% reusable.

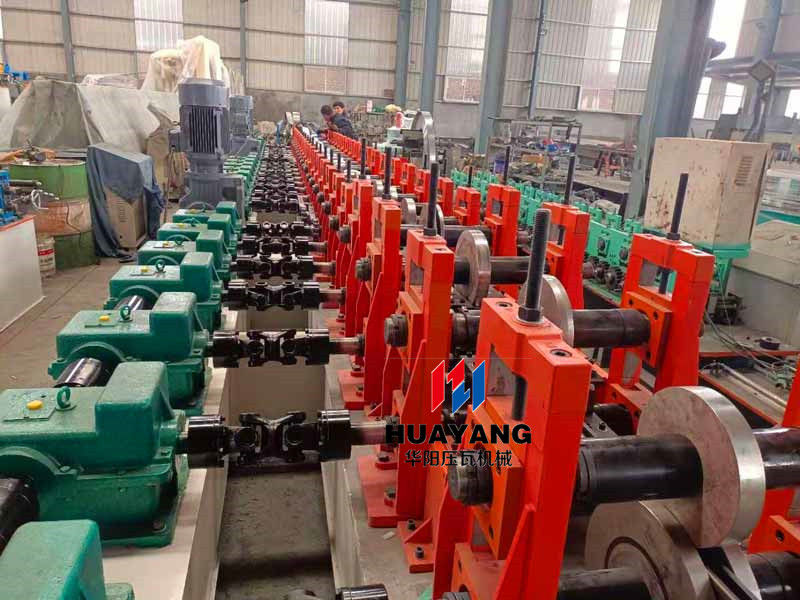

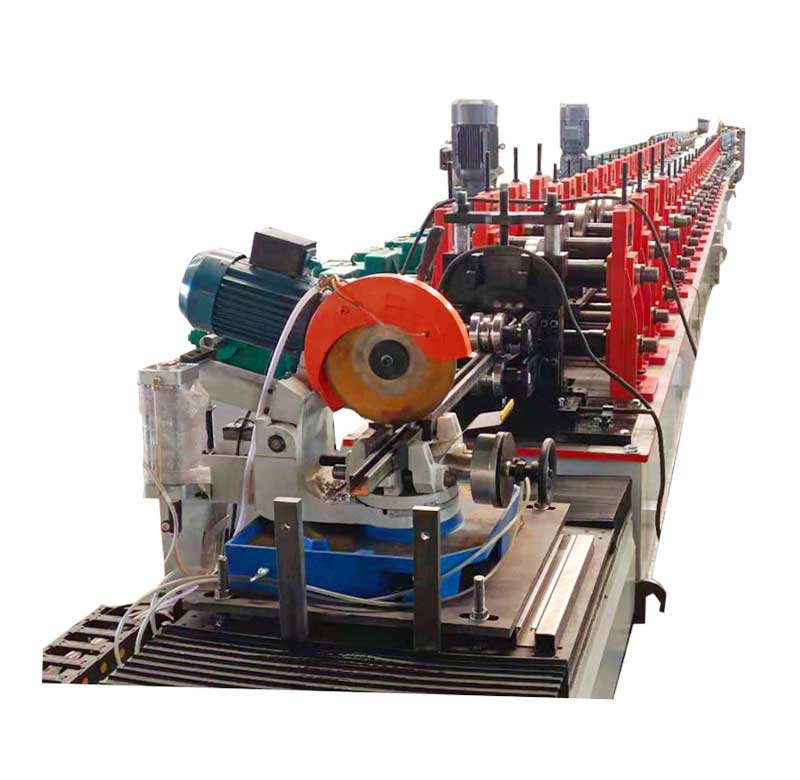

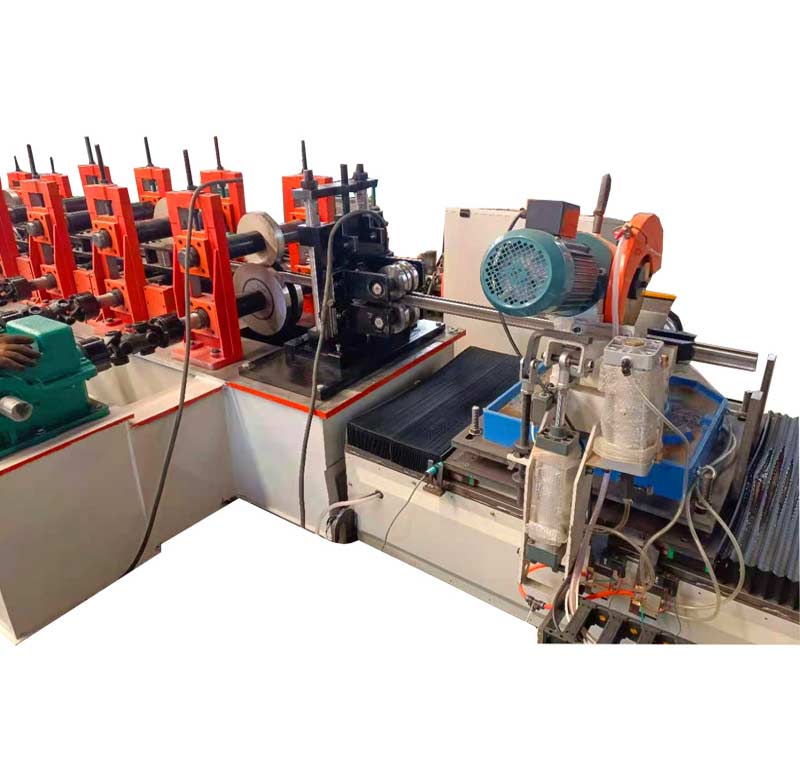

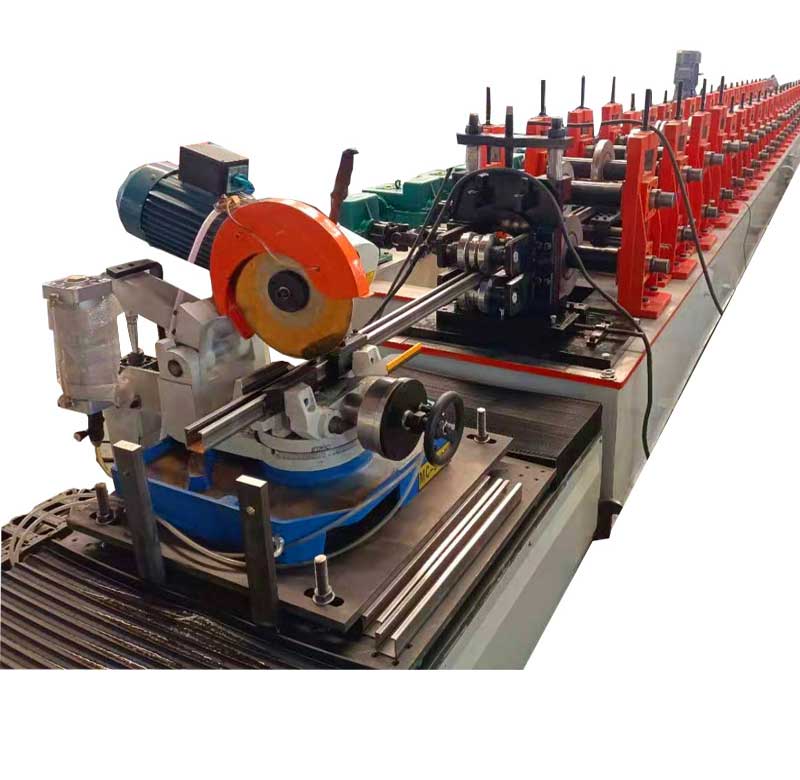

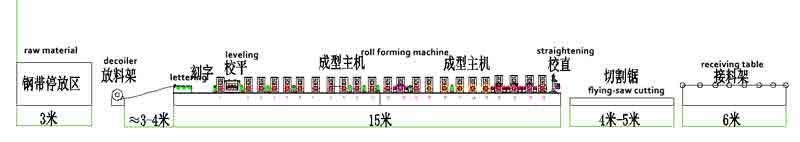

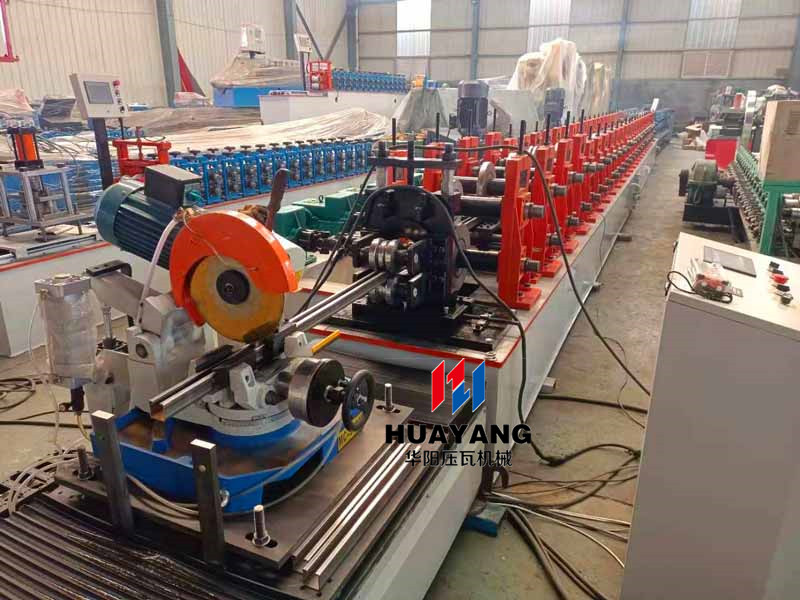

Botou Huayang Solar Photovoltaic Bracket Strut C Channel Roll Forming Machine is the full automactic line include the decoiler ,leveling and feeding ,punching machine ,roll forming machine ,fly-saw cutting system and output table .The ingenious machine design makes the solar energy support stronger.

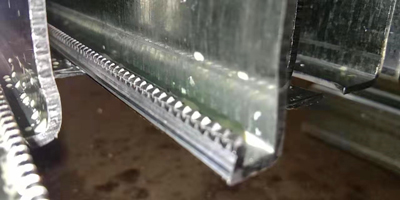

the Solar Photovoltaic Bracket Strut C Channel Roll Forming Machine details
NO. | Name | Unit | QTY | Remark |
Part 1 | 5T Manual decoiler | set | 1 |
|
Part 2 | Leveing and Punching machine | Set | 1 |
|
Part 3 | Roll forming part | set | 1 | Gearbox drive |
Part 4 | PLC control system | set | 1 |
|
Part 5 | Hydraulic system | set | 1 | Hydraulic |
Part 6 | Collect table | set | 2 | 3m/set |
Roll forming machine | Feeding device | Steel plate welded as the feeding platform |
| 7-roller leveling (up 3 down 4) |
| Equipped 2-3 stripes in the middle of the platform to feed material, prevent the material surface damaged |
| There are several bearing besides the platform, to protect the edge of the material |
| Feeding width is adjustable |
Rolling shaft | Shaft material:45# STEEL |
| Shaft diameter: 80 mm |
| Cr12 die steel vacuum quenched hardness HRC58~62 degrees |
Roller | 45# steel |
| 0.03mm Chromed treatment, make the rollers more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life |

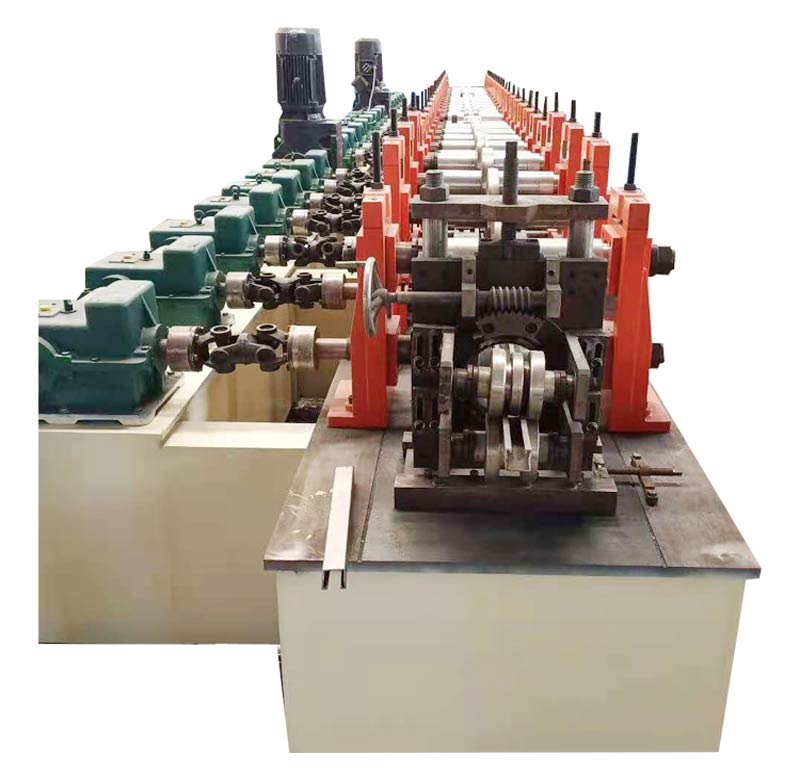

Rolling station | 23 rolling stations |
Work speed | 10-20 m/min |
Machine basic frame | The structure of the archway is QT640+570 castings |
| the sliders are castings (HT200) annealed and CNC finished |
Work power | Two 15KW K series hard-tooth reducers total 30KW |
Rolling spacer | Anti rusty treatment |
Transmission | 170 gear box transmission, universal joint connection. |

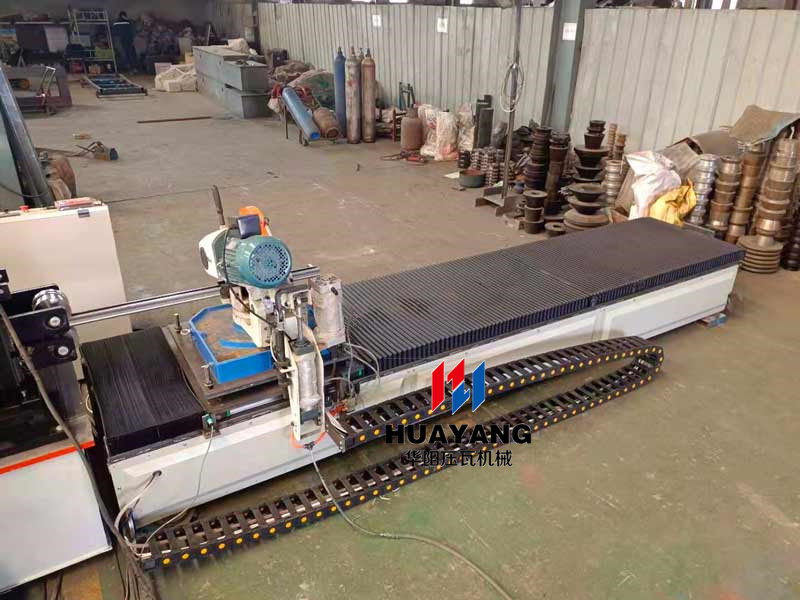

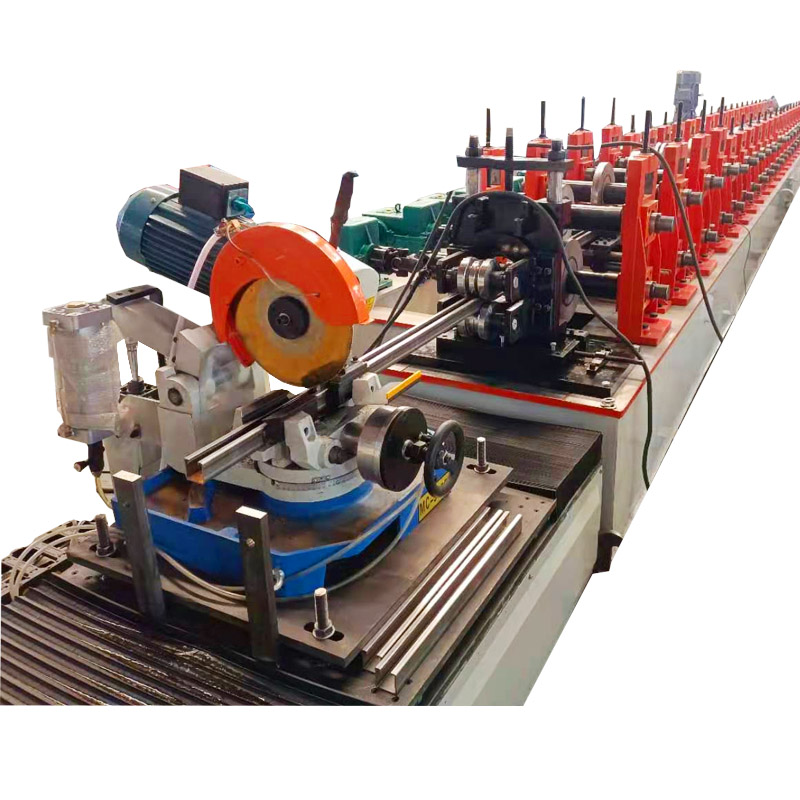

Hydraulic system | Work type | Servo Tracking Hydraulic Circular Saw Cutter |
Hydraulic motor power | 4kw 3set |
Cutter material | GB-Cr12 |
Cutting length tolerance | ±1mm/3m |
Cutting feature | Steady and safe working condition |
Oil tube and wires connection | All the tubes and wires will be marked by the numbers or letters,So that it will be very easy to connect for the new. |

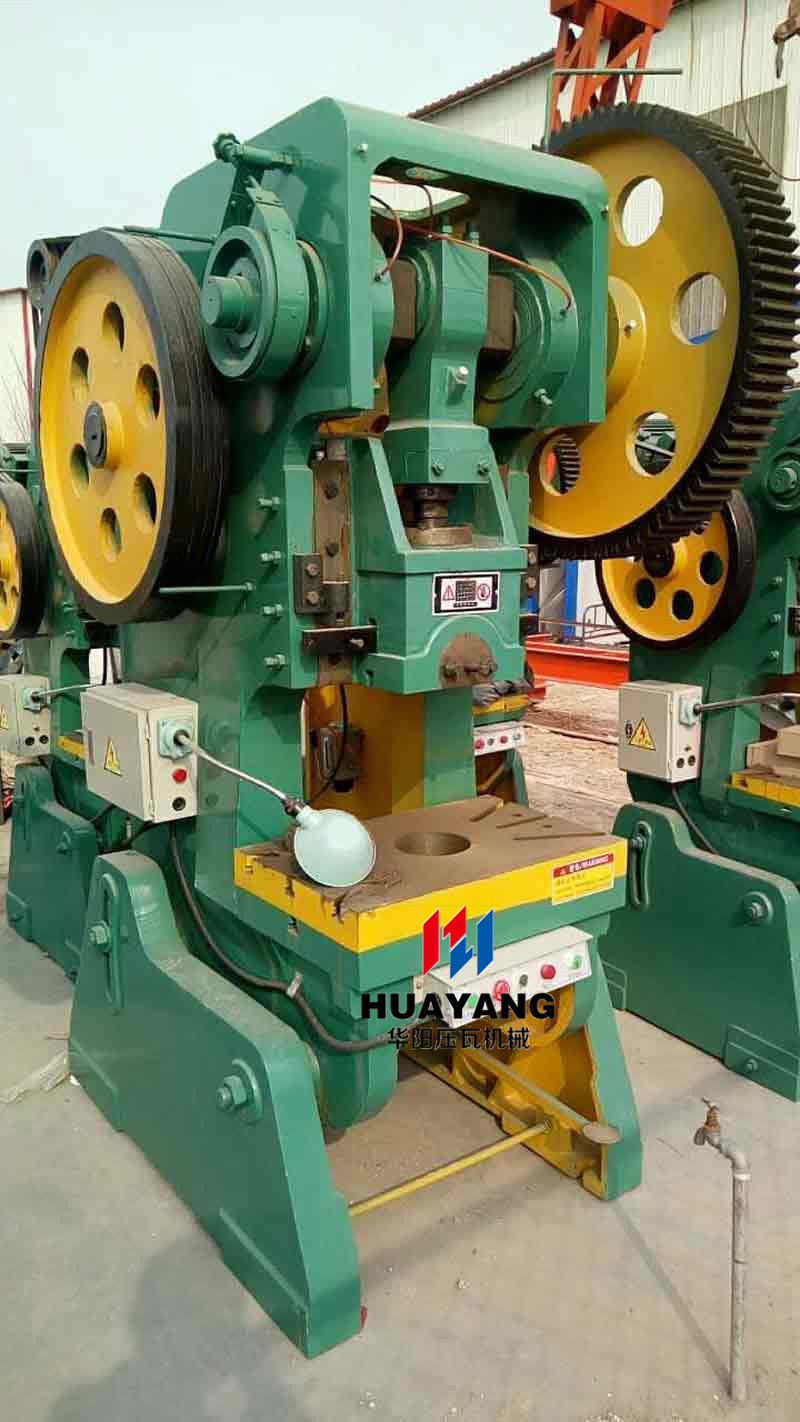

Leveling and punching part | Composition of single punching machine | 2 set of die/1 set of servo feeder/One 80T punch |
Transmission form | Servo motor drive, rack and pinion linear drive |
Feed length | 6000mm |
Feeding speed | 1000mm/s |
Feeding accuracy | ±0.3mm/m |
Electronic control system | PLC control, LCD touch screen, man-machine interface. The length of the workpiece is digitally set, and the length of the workpiece can be adjusted. There are two modes of operation: manual/automatic. With manual and automatic switching function |
