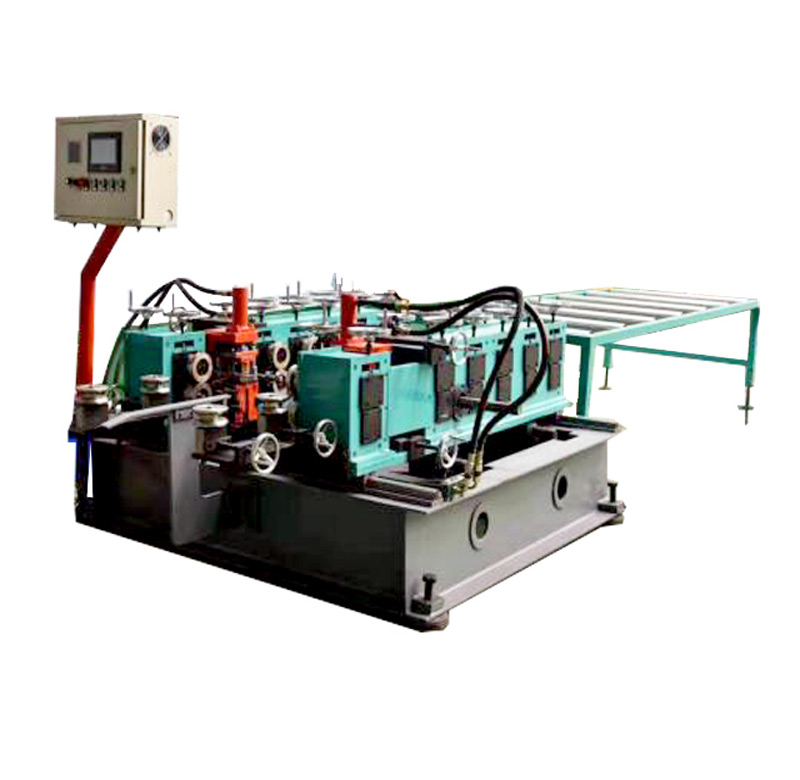

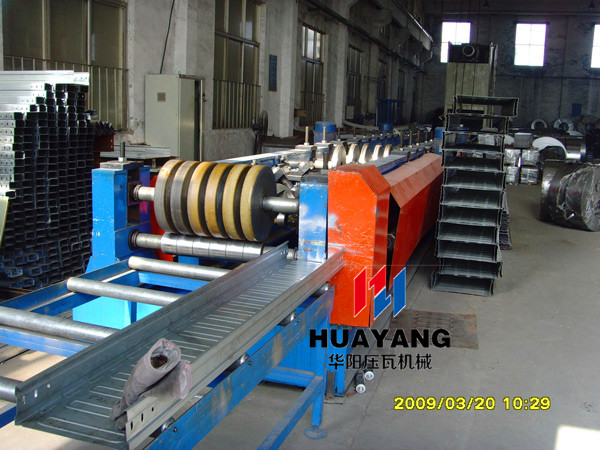

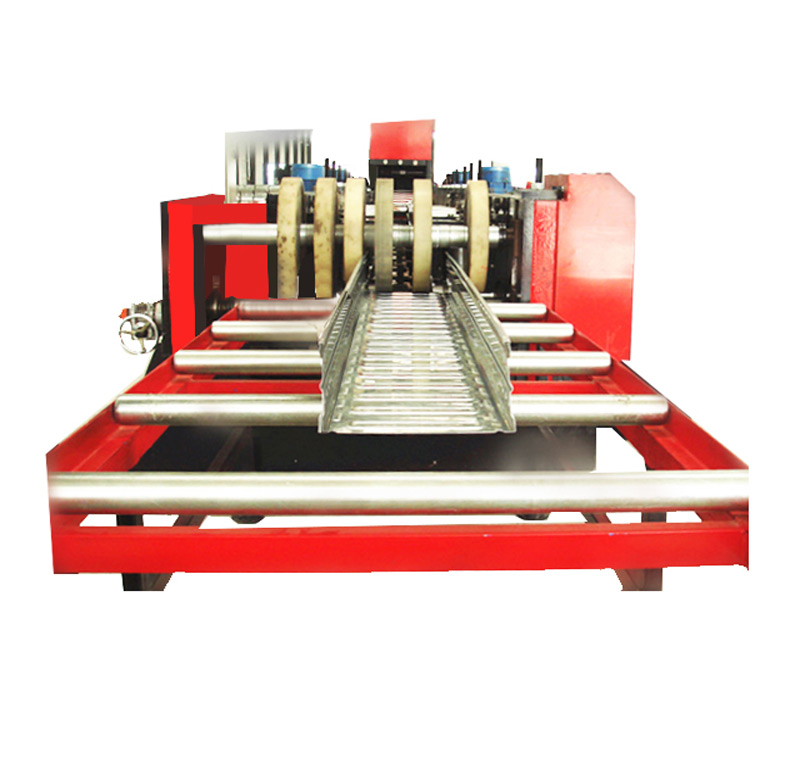

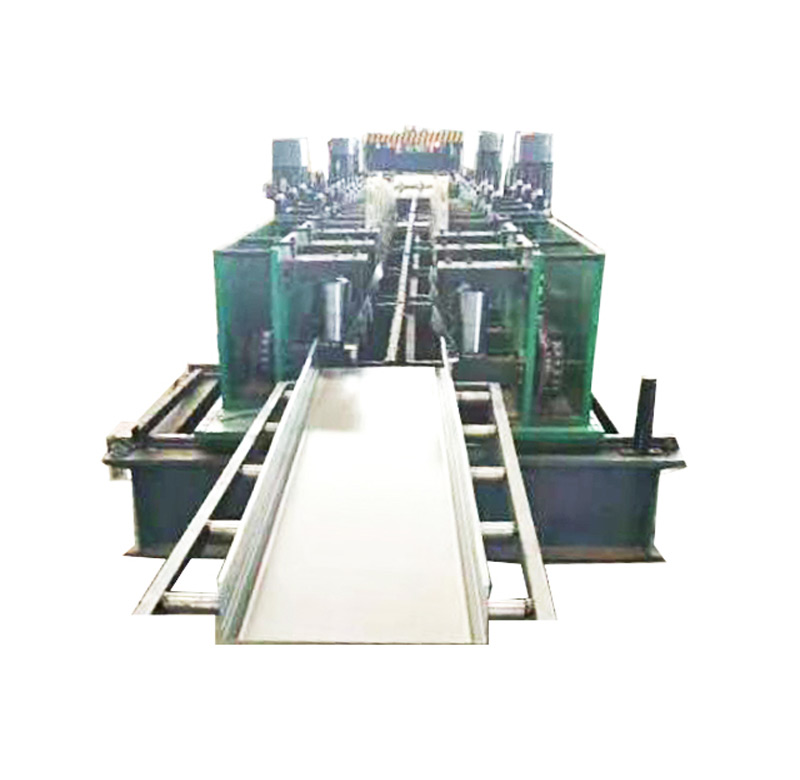

cable tray roll forming machine is full automatic line to produce the cable tray at 0.6-2.0mm.the tray sheet width can be produced from 100-800mm.the height can be 50-200mm

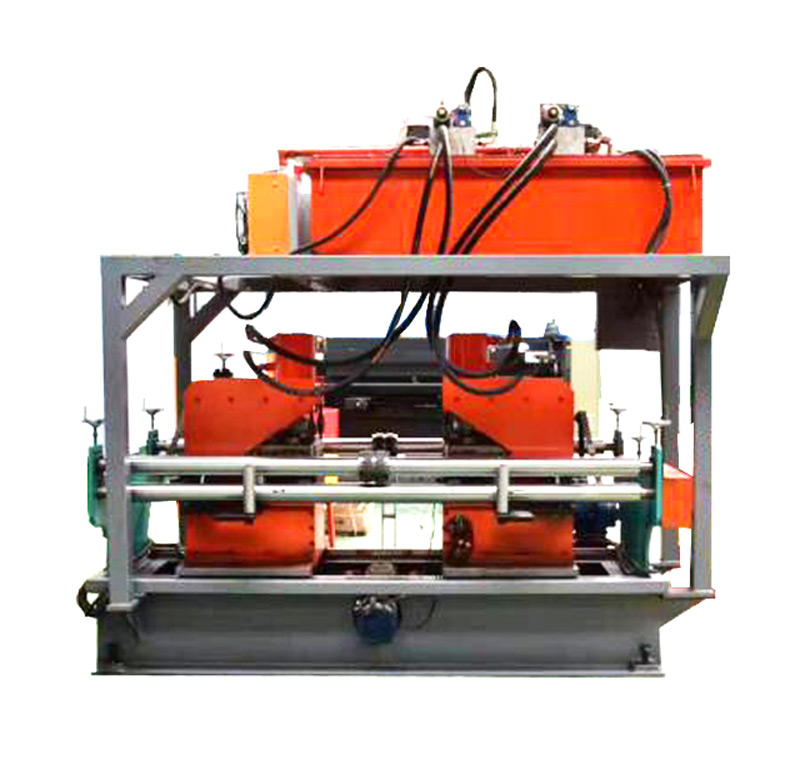

The whole line for the coil raw material include:decoiler-leveling device-Multi group hydraulic punching(Tray hole, etc)-hydraulic cutting system-Automatic conveying table-roll forming -output table ,the whole cable tray roll forming machine is controlled by electric control system.The whole line for the steel sheet raw material include:Conveying table(Manual feeding)-punching system-automatic conveying table- roll forming -output table.The whole cable tray roll forming machine is controlled by electric control system
the cable tray roll forming machine details technical
Working mode: automatic continuous roll forming, manual + automatic control, motor driven, stepless adjustment in width 100-400, height 50-150, and electric control to adjust the above parameters
Forming material: ordinary cold rolled sheet and galvanized sheet below 350Mpa
Working range: feed width 1000mm, material thickness 0.8-2.0mm
Molding pass: 20 (including auxiliary wheel)
Main engine power: 7.5kwx3
Transmission mode: gear and sprocket
Spindle diameter:Φ70mm, 45#steel quenching and tempering
Rolling material: GCr15, heat treatment hrc55-60, hard chromium plating on the surface
Forming frame: H400 section steel welding, annealing and aging treatment
Wallboard: integral medium plate
Molding speed: About 15m / min
Host size: about 20000x3000 (mm)
Adjustment mode: display screen setting profile parameters, electric button + computer automatically adjust the distance between left and right roller groups, motor driven
Regulating motor power: 1.1kwx3

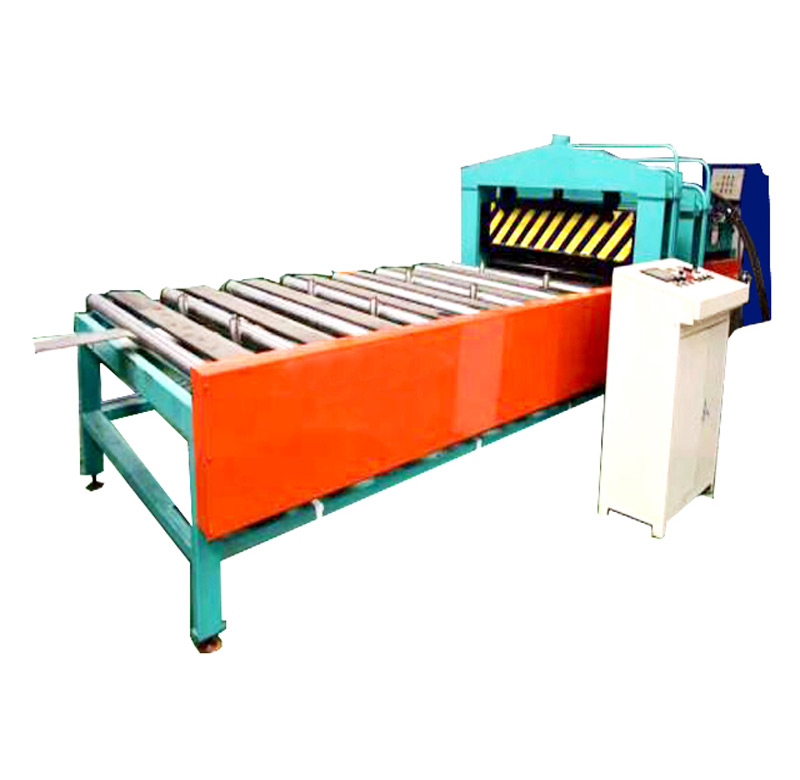

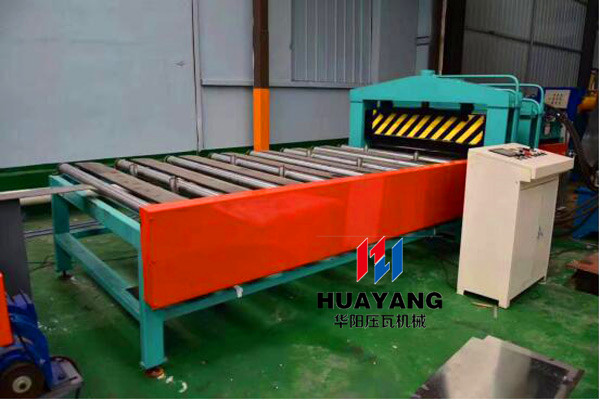

Discharge platform:Working mode: simple bracket, no power Size: 6M

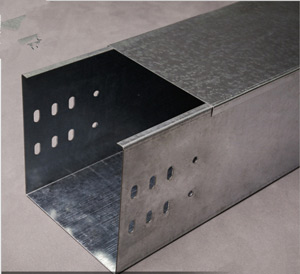

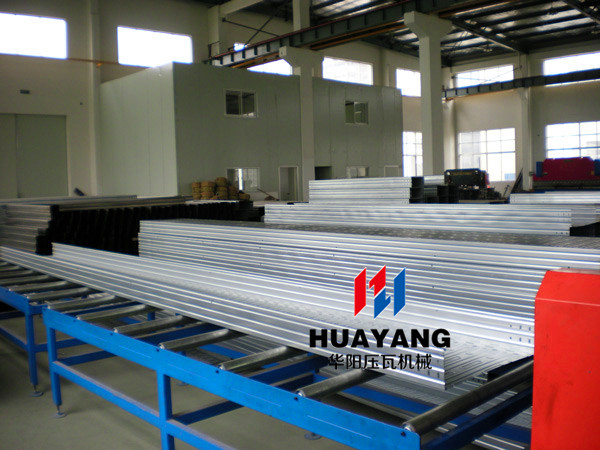

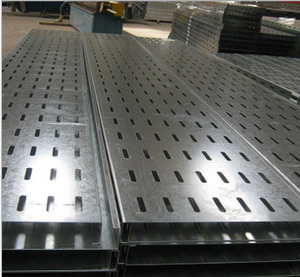

Cable tray is divided into trough type, tray type, ladder type, grid format and other structures, which is composed of support, bracket and installation accessories. The cable tray in the building can be erected independently or on various buildings and pipe gallery supports. The cable tray has the advantages of simple structure, beautiful appearance.
welcome contact me to know more .
other popular type roll forming machine for your reference.
our cutomers
FAQ
1. How to play order?
Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2. How to visit our company?
Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no. Any times: +86 18330779870
3. If you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4. Do you have after sales support?
We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5. How does your factory do regarding quality control?
The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it;s packed for shipment.
6. Do you sell only standard machines?
No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
7. How can I trust you?
We promise we will deliver the goods as ordered. Our value is responsible, professional, exquisite. We have gained the ALIBABA.COM ASSESSED SUPPLIER, passed CE CERTIFICATE, SGS CERTIFIED SUPPLIER CERTIFIATE inssued.
